Add Answer to:

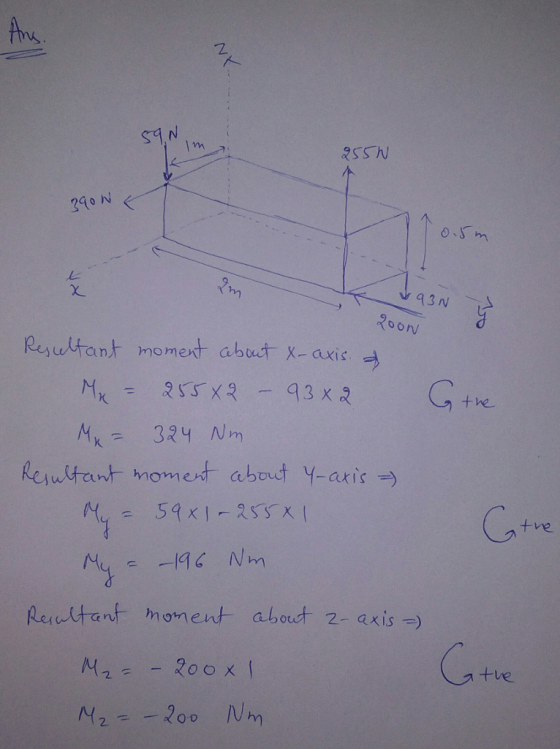

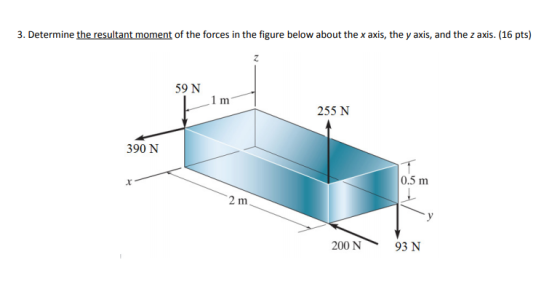

3. Determine the resultant moment of the forces in the figure below about the x axis,...
LEN P4-3 In cach case, determine the resultant moment of the forces acting about the x,...
LEN P4-3 In cach case, determine the resultant moment of the forces acting about the x, y, and axes 4. In each case, set up the determinant needed to find the moment of the force about the axes F +2 + N F- 3- N Proh Prob. P4-3
3. Two forces and a moment act on the bracket below. a) Find the resultant force....
3. Two forces and a moment act on the bracket below. a) Find the resultant force. b) Replace the given system with an equivalent force-couple system acting at B. Sketch the result in the space provided below. Replace the given system with an equivalent system consisting of only a force whose line of action intersects the x axis. Determine the coordinate, d, of the point of intersection on the x axis. Sketch the result in the space provided below.4 SOON...
Figure Determine the resultant moment produced by the forces about point O. Assume Fi = 500...
Figure Determine the resultant moment produced by the forces about point O. Assume Fi = 500 N , F2 = 350 N and F3 = 550 N .(Figure 1) Express your answer to three significant figures and include the appropriate units. (< 1 of 1 > ? OCH Å M. = Value 2 Units Submit Request Answer N 45° 2.5 m mit - 1 m + 2 m Provide Feedback Next >
Part A - Moment about the x axis at A Learning Goal: To determine the state...
Part A - Moment about the x axis at A Learning Goal: To determine the state of stress in a solid rod using the principle of superposition. A solid rod has a diameter of e = 60 mm and is subjected to the loading shown. Let a = 200 mm, b = 220 mm c = 340 mm, d = 230 mm, and P = 4.0 kN. Take point A to be at the top of the circular cross-section. (Figure...
Question 1 options: Determine the moment of force F about an axis extending between A and...
Question 1 options:
Determine the moment of force F about an axis
extending between A and C. Express the result as
a Cartesian vector. Use F = {5i +
10j - 4k} kN, L1 = 5 m, L2 = 4 m,
and L3 = 3 m for your calculations.
Your answer:
x-component of the resultant moment in kNm (round the
result to 1 decimal place):
y-component of the resultant moment in kNm (round the
result to 1 decimal place):
z-component...
DETERMINE THE COMBINED MOMENT OF THE FOUR FORCES ACTING ON THE PULLEYS ABOUT THE AXIS AB...
DETERMINE THE COMBINED MOMENT OF THE FOUR FORCES ACTING ON THE PULLEYS ABOUT THE AXIS AB (POINTS A AND B ARE THE CENTERS OF THE PULLEYS). 3 m 4 m 0.5 m -0.8 m 20 kN 60 KN 20 KN 40 KN WAT IS THE MOMENT OF THE FORCE ABOUT AXIS AB? (Unit: KN.m)
Determine the x, y, and z components of the moment of this force about point A....
Determine the x, y, and z components
of the moment of this force about point A.
Determine the x, y, and z components
of the moment of this force about point B.
The pipe assembly is subjected to the force of F (550 i+ 700 j-500 k N. (Figure 1) gure 1 of 1 1 0.5 m 0.4 m 0.3 m In 0.3 m
Determine the resultant moment produced by the forces about point O Assume Fİ-460 N Express your...
Determine the resultant moment produced by the forces about point O Assume Fİ-460 N Express your answer to three significant figures and include the appropriate units F,-: 700 N Figure 1) Figure 1 of 1 (MRlo Value 125 m 0.3 5 6 8 9 O.
Part A Determine the resultant moment produced by the forces about point 0. Asuume Fi =...
Part A Determine the resultant moment produced by the forces about point 0. Asuume Fi = 310 lb, F3 = 200 lb . (Figure 1) Express your answer to three significant figures and include the appropriate units. Figure < 1 of 1 > UA ? Mo = Value Units 6 ft F2 Submit Request Answer 6 ft 30° F 30 Provide Feedback
For each figure below, compute the moment of inertia about the x axis, y axis and...
For each figure below, compute the moment of inertia
about the x axis, y axis and any other axis shoen with the figure
such as x’ or y’.
LEN P4-3 In cach case, determine the resultant moment of the forces acting about the x, y, and axes 4. In each case, set up the determinant needed to find the moment of the force about the axes F +2 + N F- 3- N Proh Prob. P4-3
3. Two forces and a moment act on the bracket below. a) Find the resultant force. b) Replace the given system with an equivalent force-couple system acting at B. Sketch the result in the space provided below. Replace the given system with an equivalent system consisting of only a force whose line of action intersects the x axis. Determine the coordinate, d, of the point of intersection on the x axis. Sketch the result in the space provided below.4 SOON...
Figure Determine the resultant moment produced by the forces about point O. Assume Fi = 500 N , F2 = 350 N and F3 = 550 N .(Figure 1) Express your answer to three significant figures and include the appropriate units. (< 1 of 1 > ? OCH Å M. = Value 2 Units Submit Request Answer N 45° 2.5 m mit - 1 m + 2 m Provide Feedback Next >
Part A - Moment about the x axis at A Learning Goal: To determine the state of stress in a solid rod using the principle of superposition. A solid rod has a diameter of e = 60 mm and is subjected to the loading shown. Let a = 200 mm, b = 220 mm c = 340 mm, d = 230 mm, and P = 4.0 kN. Take point A to be at the top of the circular cross-section. (Figure...
Question 1 options:
Determine the moment of force F about an axis
extending between A and C. Express the result as
a Cartesian vector. Use F = {5i +
10j - 4k} kN, L1 = 5 m, L2 = 4 m,
and L3 = 3 m for your calculations.
Your answer:
x-component of the resultant moment in kNm (round the
result to 1 decimal place):
y-component of the resultant moment in kNm (round the
result to 1 decimal place):
z-component...
DETERMINE THE COMBINED MOMENT OF THE FOUR FORCES ACTING ON THE PULLEYS ABOUT THE AXIS AB (POINTS A AND B ARE THE CENTERS OF THE PULLEYS). 3 m 4 m 0.5 m -0.8 m 20 kN 60 KN 20 KN 40 KN WAT IS THE MOMENT OF THE FORCE ABOUT AXIS AB? (Unit: KN.m)
Determine the x, y, and z components
of the moment of this force about point A.
Determine the x, y, and z components
of the moment of this force about point B.
The pipe assembly is subjected to the force of F (550 i+ 700 j-500 k N. (Figure 1) gure 1 of 1 1 0.5 m 0.4 m 0.3 m In 0.3 m
Determine the resultant moment produced by the forces about point O Assume Fİ-460 N Express your answer to three significant figures and include the appropriate units F,-: 700 N Figure 1) Figure 1 of 1 (MRlo Value 125 m 0.3 5 6 8 9 O.
Part A Determine the resultant moment produced by the forces about point 0. Asuume Fi = 310 lb, F3 = 200 lb . (Figure 1) Express your answer to three significant figures and include the appropriate units. Figure < 1 of 1 > UA ? Mo = Value Units 6 ft F2 Submit Request Answer 6 ft 30° F 30 Provide Feedback
For each figure below, compute the moment of inertia
about the x axis, y axis and any other axis shoen with the figure
such as x’ or y’.
