Homework Answers
Find the electric field using potential of battery and distance
between the plates and use the electric field to find the
acceleration of proton. Use the equation of kinematics to find the
final speed where initial speed is zero as shown below
Add Answer to:

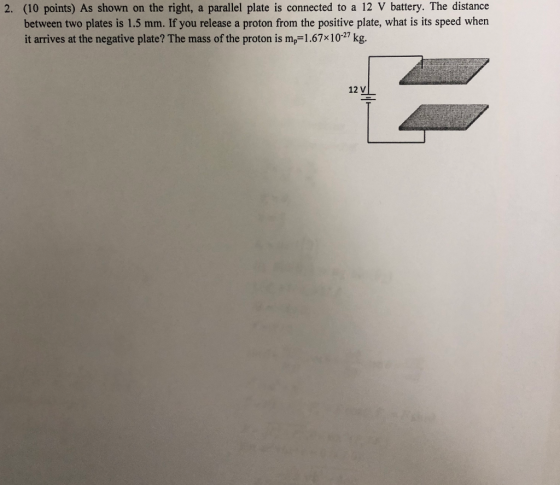

2. (10 points) As shown on the right, a parallel plate is connected to a 12...
