Renewable Energy

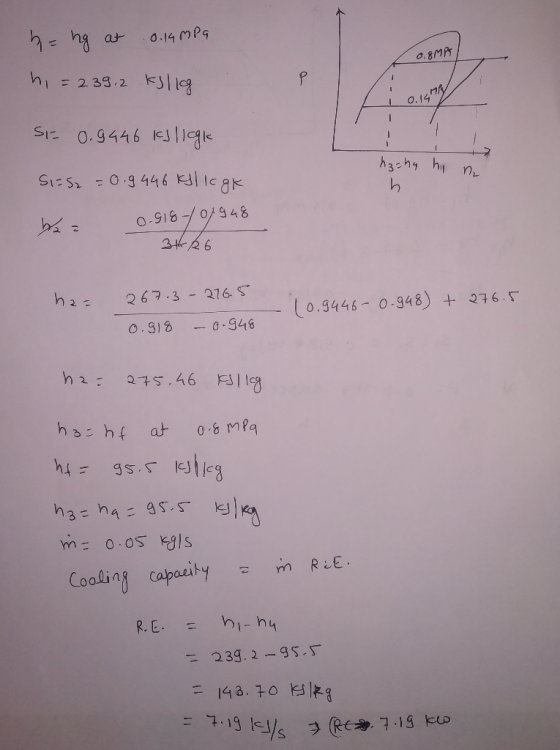

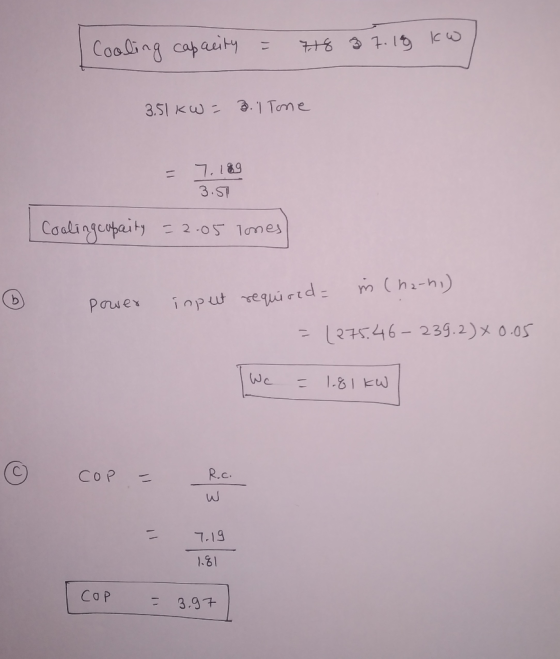

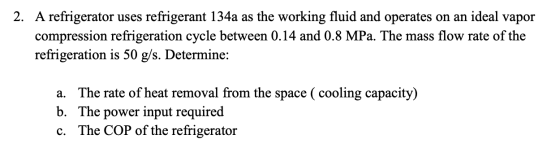

2. A refrigerator uses refrigerant 134a as the working fluid and operates on an...
A refrigerator operates on an ideal vapor compression refrigeration cycle with R-134a as the working fluid....
A refrigerator operates on an ideal vapor compression refrigeration cycle with R-134a as the working fluid. The evaporator pressure is 0.12 MPa and the condenser pressure is 0.8 MPa. If the rate of heat removal from the refrigerated space is 32 kJ/s, the mass flow rate of refrigerant is
11-14 A refrigerator uses refrigerant-134a as the working fluid and operates on an ideal vapor-compression refrigeration...
11-14 A refrigerator uses refrigerant-134a as the working fluid and operates on an ideal vapor-compression refrigeration cycle between 0.12 and 0.7 MPa. The mass flow rate of the refrigerant is 0.05 kg/s. Show the cycle on a T-s diagram with respect to saturation lines. Determine (a) the rate of heat removal from the refrigerated space and the power input to the compressor, (b) the rate of heat rejection to the environment, and (c) the coefficient of performance. Answers: (a) 7.41...
(12 points) A refrigerator using refrigerant-134a as the working fluid operates on the vapor compression cycle....
(12 points) A refrigerator using refrigerant-134a as the working fluid operates on the vapor compression cycle. The cycle operates between 200 kPa and 1.2 MPa. The refrigerant flows through the cycle at a rate of 0.019 kg/s. The (actual) refrigerator has a compressor with an isentropic efficiency of 85%. The refrigerant enters the compressor slightly superheated by 56 C hint add this to the saturation temperature). The refrigerant leaves the condenser slightly subcooled by 1.9°C. What is the rate of...
Tt (12 points) A refrigerator using refrigerant-134a as the working fluid operates on the vapor compression...
Tt
(12 points) A refrigerator using refrigerant-134a as the working fluid operates on the vapor compression cycle. The cycle operates between 200 kPa and 1.2 MPa. The refrigerant flows through the cycle at a rate of 0.015 kg/s. The actual) refrigerator has a compressor with an isentropic efficiency of 82%. The refrigerant enters the compressor slightly superheated by 6.2°C (hint: add this to the saturation temperature). The refrigerant leaves the condenser slightly subcooled by 1.8°C. What is the rate of...
a refrigerator uses refrigerant 134a as a working fluid and operates on the vapour -compression refrigiration...
a refrigerator uses refrigerant 134a as a working fluid and operates on the vapour -compression refrigiration cycle.the evaporator is maintained at -100C and the refrigirant is a dry saturated vapour as it leaves the evaporator. the compressor has an efficiency of 80%.the conditions at the outlet of the condensor are 300C and 9 bar. 1-if the mass flow rate of the refrigerant is 0,08kg/s workout the rate of heat removal from the refrigerant space.the power input to the cpmpressor and...
11-11 A refrigerator operates on the ideal vapor-compression refrigeration cycle and uses refrigerant-134a as the working...
11-11 A refrigerator operates on the ideal vapor-compression refrigeration cycle and uses refrigerant-134a as the working fluid. The condenser operates at 1.6 MPa and the evaporator at -6oC. If an adiabatic, reversible expansion device were available and used to expand the liquid leaving the condenser, how much would the COP improve by using this device instead of the throttle device?
A two-stage compression refrigeration system with an adiabatic liquid-vapor separation unit uses refrigerant-134a as working fluid....
A two-stage compression refrigeration system with an adiabatic liquid-vapor separation unit uses refrigerant-134a as working fluid. The system operates the evaporator at 0.4 MPa, the condenser at 1.6 MPa, and the separator at 0.8 MPa. The compressors use 25 kW of power. Given that the refrigerant is saturated liquid at the inlet of each expansion valve and saturated vapor at the inlet of each compressor, and the compressors are isentropic: (0) show the process on a T-s diagram; ) calculate...
A commercial refrigerator with refrigerant-134a as the working fluid is used to keep the refrigerated space at by The refrigerant enters the condenser at compressor consumes 3.3 kW of power, dete...
A commercial refrigerator with refrigerant-134a as the working fluid is used to keep the refrigerated space at by The refrigerant enters the condenser at compressor consumes 3.3 kW of power, determine (a) the mass flow rate of the refrigerant, (b) the refrigeration load, (e) the COP, and (d) the g waste heat to cooling water that enters the condenser at 18°C at a rate of 0.25 kg/s and leaves at 26°C. 1.2 MPa and 50°C and leaves at the same...
A commercial refrigerator with refrigerant-134a as the working fluid is used to keep the refrigerated space...
A commercial refrigerator with refrigerant-134a as the working fluid is used to keep the refrigerated space at −25°C by rejecting waste heat to cooling water that enters the condenser at 20°C at a rate of 0.25 kg/s and leaves at 26°C. The refrigerant enters the condenser at 1.2 MPa and 50°C and leaves at the same pressure subcooled by 5°C. If the compressor consumes 3.3 kW of power, determine (a) the mass flow rate of the refrigerant, (b) the refrigeration...
1) A commercial refrigerator with refrigerant-134a as the working fluid is used to keep the refrigerated...
1) A commercial refrigerator with refrigerant-134a as the working fluid is used to keep the refrigerated space at -30°C by rejecting its waste heat to cooling water that enters the condenser at 16 °C at a rate of 0.25 kg/s and leaves at 26°C. The refrigerant enters the condenser at 1.2 MPa and 65°C and leaves at 42°C. The inlet state of the compressor is 60 kPa and -34°C and the compressor is estimated to gain a net heat of...
11-14 A refrigerator uses refrigerant-134a as the working fluid and operates on an ideal vapor-compression refrigeration cycle between 0.12 and 0.7 MPa. The mass flow rate of the refrigerant is 0.05 kg/s. Show the cycle on a T-s diagram with respect to saturation lines. Determine (a) the rate of heat removal from the refrigerated space and the power input to the compressor, (b) the rate of heat rejection to the environment, and (c) the coefficient of performance. Answers: (a) 7.41...
(12 points) A refrigerator using refrigerant-134a as the working fluid operates on the vapor compression cycle. The cycle operates between 200 kPa and 1.2 MPa. The refrigerant flows through the cycle at a rate of 0.019 kg/s. The (actual) refrigerator has a compressor with an isentropic efficiency of 85%. The refrigerant enters the compressor slightly superheated by 56 C hint add this to the saturation temperature). The refrigerant leaves the condenser slightly subcooled by 1.9°C. What is the rate of...
Tt
(12 points) A refrigerator using refrigerant-134a as the working fluid operates on the vapor compression cycle. The cycle operates between 200 kPa and 1.2 MPa. The refrigerant flows through the cycle at a rate of 0.015 kg/s. The actual) refrigerator has a compressor with an isentropic efficiency of 82%. The refrigerant enters the compressor slightly superheated by 6.2°C (hint: add this to the saturation temperature). The refrigerant leaves the condenser slightly subcooled by 1.8°C. What is the rate of...
A two-stage compression refrigeration system with an adiabatic liquid-vapor separation unit uses refrigerant-134a as working fluid. The system operates the evaporator at 0.4 MPa, the condenser at 1.6 MPa, and the separator at 0.8 MPa. The compressors use 25 kW of power. Given that the refrigerant is saturated liquid at the inlet of each expansion valve and saturated vapor at the inlet of each compressor, and the compressors are isentropic: (0) show the process on a T-s diagram; ) calculate...
A commercial refrigerator with refrigerant-134a as the working fluid is used to keep the refrigerated space at by The refrigerant enters the condenser at compressor consumes 3.3 kW of power, determine (a) the mass flow rate of the refrigerant, (b) the refrigeration load, (e) the COP, and (d) the g waste heat to cooling water that enters the condenser at 18°C at a rate of 0.25 kg/s and leaves at 26°C. 1.2 MPa and 50°C and leaves at the same...
1) A commercial refrigerator with refrigerant-134a as the working fluid is used to keep the refrigerated space at -30°C by rejecting its waste heat to cooling water that enters the condenser at 16 °C at a rate of 0.25 kg/s and leaves at 26°C. The refrigerant enters the condenser at 1.2 MPa and 65°C and leaves at 42°C. The inlet state of the compressor is 60 kPa and -34°C and the compressor is estimated to gain a net heat of...
