Question

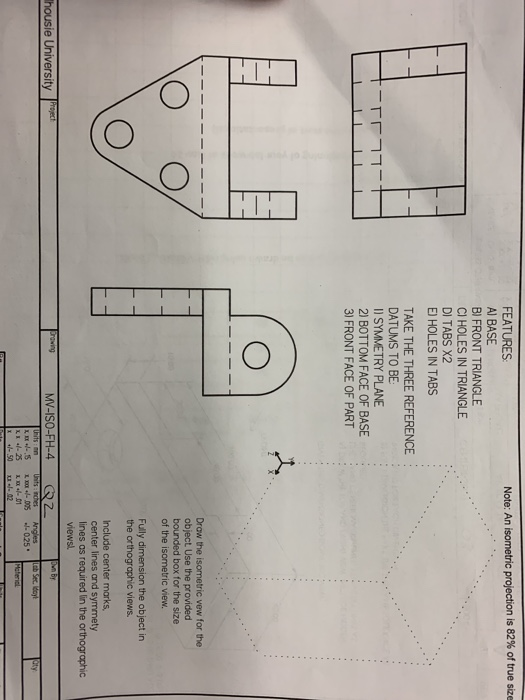

Note: An isometric projection is 82% of true size FEATURES A BASE BI FRONT TRIANGLE CI HOLES IN TRIANGLE DI TABS X2 E) HOLES IN TABS TAKE THE THREE REFERENCE DATUMS TO BE 1) SYMMETRY PLANE 2 BOTTOM FACE OF BASE 31 FRONT FACE OF PART arr 77-H Draw the isometric vew for the object Use the provided bounded box for the size of the isometric view. Fully dimension the object in the orthographic views Include center marks, center lines and symmety lines as required in the orthographic viewsi. Thousie University Project MV-ISO-FH-4 U n L . KI .-2 Q2 Unit:nches 05 -01 . 02 Angles -0.25" Labc.co X - SO

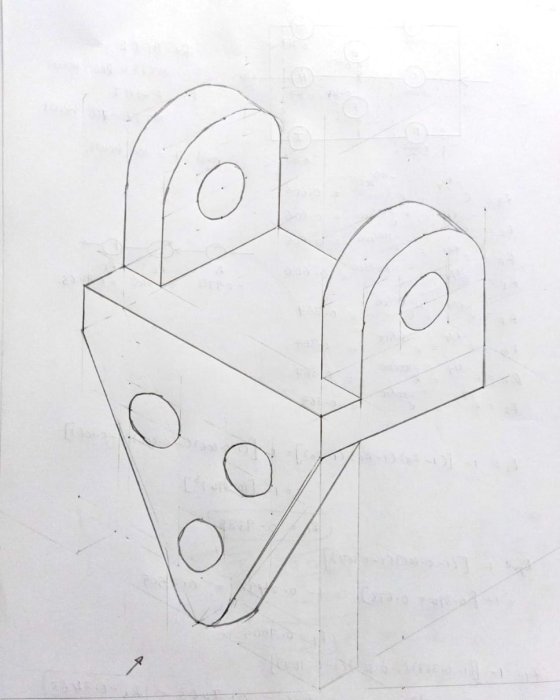

Answer 1
