Use nodal analysis to find the current l0 in the following circuit

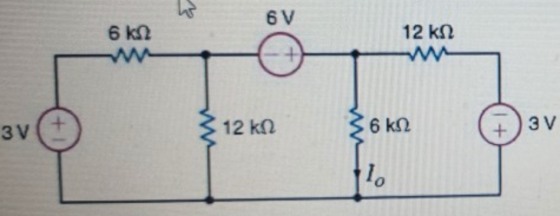

Use nodal analysis to find the current l0 in the following circuit. Calculate the power absorbed by the 6 kΩ resistor which is in series with the 3V source.

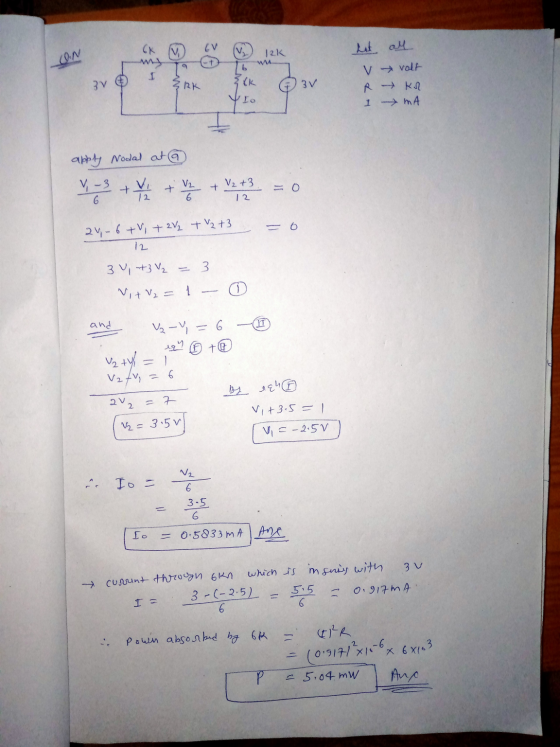

You need to show all your work (on paper) including the voltage names and directions that you choose on the circuit.
Homework Answers
Apply nodal analysis to the circuit of Figure P3.22 to find the power
Apply nodal analysis to the circuit of Figure P3.22 to find the power (released or absorbed?) by the 3-mA source. Check your result.
3-1 Use nodal analysis to find v, in the circuit shown in Fig. 3-6 if element...
3-1 Use nodal analysis to find v, in the circuit shown in Fig. 3-6 if element A is: (a) a 2-A current source, arrow pointing right; (b) an 8-92 resistor; (c) a 10-V voltage source, the positive reference on the right. ns:- 17 A 2Ω Fig. 3-6 See Drill Probs. 3-1 and 3-2.
Problem 03.020 Nodal analysis: Independent voltage source and current dependent voltage source In the circuit given...
Problem 03.020 Nodal analysis: Independent voltage source and current dependent voltage source In the circuit given below, R-25 ?. Find v1, v2, and v3 using nodal analysis. 240 V 20i 20 ? 3 li 40? ": 10? The value of vy in the circuit is The value of v2 in the circuit is| |V The value of vy in the circuit isv V.
Problem 03.025-Nodal analysis: Independent current source In the circuit given below, R-15 Ω. Determine the nodal...
Problem 03.025-Nodal analysis: Independent current source In the circuit given below, R-15 Ω. Determine the nodal voltages using nodal analysis and MATLAB. 20Ω 10Ω PI 4 A 8Ω 20Ω The value of nodal voltage vi is The value of nodal voltage v2 is The value of nodal voltage vs is The value of nodal voltage vs is V. References eBook&Resources Hints
Calculate the current through and voltage across each circuit element using Mesh Analysis Determine the current throug...
Calculate the current through and voltage across each circuit
element using Mesh Analysis
Determine the current through and voltage across each circuit
element using Nodal Analysis
Find the Thevenin equivalent circuit for the network external
to the resistor R5 and use it to calculate the voltage
across as well as the current through the resistor
R5
Find the Norton equivalent circuit for the network external to
the resistor R5 and employ it to compute the voltage
across as well as...
In the following circuit use Nodal Analysis or Mesh Analysis to find the voltage across R₁ and R₃.
In the following circuit use Nodal Analysis or Mesh Analysis to find the voltage across R₁ and R₃.VR1 = _______ VR2 = _______
Calculate the voltage at points A, B, and C, in the following circuit. Find the power...
Calculate the voltage at points A, B, and C, in the following circuit. Find the power dissipated by each resistor. 6 V Calculate the total current I flowing through the following circuit segment. Then, find the voltage drop across each resistor. -18 V 12 kΩ 12 k
Please use nodal analysis only and show all work Find Vo in the circuit in the...
Please use nodal analysis only
and show all work
Find Vo in the circuit in the figure using nodal analysis. 8 mA Vo-
Chapter 8, Problem 8.073 Use nodal analysis to find Vo in the circuit in the figure...
Chapter 8, Problem 8.073 Use nodal analysis to find Vo in the circuit in the figure below. 6/00 V 1 0 10 0 1Ω 2/0° A (a) Find the real part of Vo. (b) Find the imaginary part of V Vi Click if you would like to Show work for this question: Open-Show-work
Chapter 8, Problem 8.075 Incorrect. Use nodal analysis to find Io in the circuit in the...
Chapter 8, Problem 8.075 Incorrect. Use nodal analysis to find Io in the circuit in the figure below. 6/0 V 4/0° A 2/0° A 1? 1? Io (a) Find the real part of I (b) Find the imaginary part of I (a) 113.752 (b) TTo.136 Click if you would like to Show Work for this question: Open Show Work
3-1 Use nodal analysis to find v, in the circuit shown in Fig. 3-6 if element A is: (a) a 2-A current source, arrow pointing right; (b) an 8-92 resistor; (c) a 10-V voltage source, the positive reference on the right. ns:- 17 A 2Ω Fig. 3-6 See Drill Probs. 3-1 and 3-2.
Problem 03.020 Nodal analysis: Independent voltage source and current dependent voltage source In the circuit given below, R-25 ?. Find v1, v2, and v3 using nodal analysis. 240 V 20i 20 ? 3 li 40? ": 10? The value of vy in the circuit is The value of v2 in the circuit is| |V The value of vy in the circuit isv V.
Problem 03.025-Nodal analysis: Independent current source In the circuit given below, R-15 Ω. Determine the nodal voltages using nodal analysis and MATLAB. 20Ω 10Ω PI 4 A 8Ω 20Ω The value of nodal voltage vi is The value of nodal voltage v2 is The value of nodal voltage vs is The value of nodal voltage vs is V. References eBook&Resources Hints
Calculate the current through and voltage across each circuit
element using Mesh Analysis
Determine the current through and voltage across each circuit
element using Nodal Analysis
Find the Thevenin equivalent circuit for the network external
to the resistor R5 and use it to calculate the voltage
across as well as the current through the resistor
R5
Find the Norton equivalent circuit for the network external to
the resistor R5 and employ it to compute the voltage
across as well as...
Calculate the voltage at points A, B, and C, in the following circuit. Find the power dissipated by each resistor. 6 V Calculate the total current I flowing through the following circuit segment. Then, find the voltage drop across each resistor. -18 V 12 kΩ 12 k
Please use nodal analysis only
and show all work
Find Vo in the circuit in the figure using nodal analysis. 8 mA Vo-
Chapter 8, Problem 8.073 Use nodal analysis to find Vo in the circuit in the figure below. 6/00 V 1 0 10 0 1Ω 2/0° A (a) Find the real part of Vo. (b) Find the imaginary part of V Vi Click if you would like to Show work for this question: Open-Show-work
Chapter 8, Problem 8.075 Incorrect. Use nodal analysis to find Io in the circuit in the figure below. 6/0 V 4/0° A 2/0° A 1? 1? Io (a) Find the real part of I (b) Find the imaginary part of I (a) 113.752 (b) TTo.136 Click if you would like to Show Work for this question: Open Show Work
