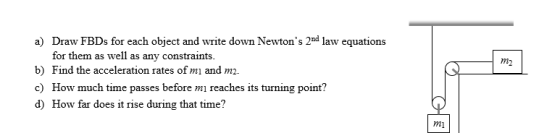

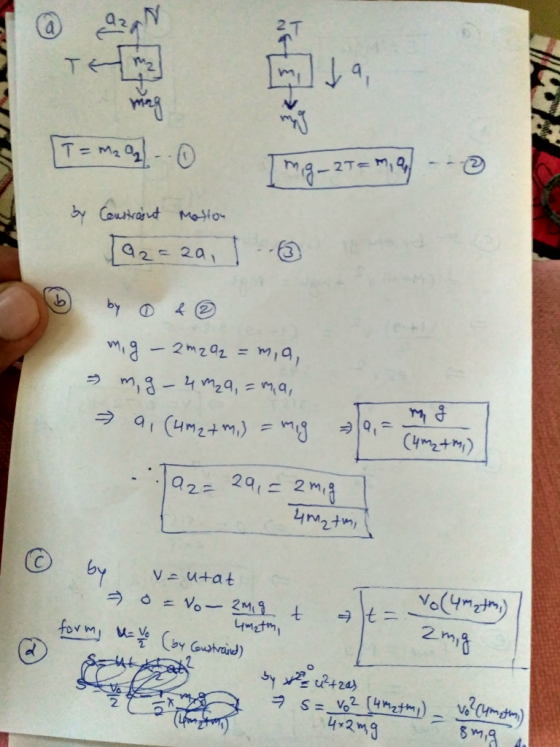

In the drawing the pulleys and mass m2 have no significant friction, and the mass of the rope and pulleys is insignificant. Mass m2 is initially moving to the right at velocity vo.
Homework Answers
Add Answer to:
In the drawing the pulleys and mass m2 have
no significant friction, and the mass of...
More details and instructions in picture below 1) draw the forces acting on each mass *pulleys...
More details and instructions in picture below
1) draw the forces acting on each mass *pulleys are "ideal".
(use appropriate coordinate systems)
2) sum the forces in x,y and find acceleration
Free Body Diagram. Three masses mi, m2, and m3 are attached by a light rope that does not stretch. The rope goes over two massless and frictionless pulleys. Draw the complete free body diagram on each of the three masses. The coefficient of kinetic friction between mi and the...
An object of mass, mi, is placed on a rough table and connected to a string...
An object of mass, mi, is placed on a rough table and connected to a string which passes under a pulley then over a pulley and then is fastened to a hanging mass, m2. Assuming mi is stationary, how would you measure the coefficient of friction on mi? (That is calculate a formula for mu s as a function of m1 and m2) If the mass of m2 is increased until mi accelerates with acceleration a. What is the coefficient...
2. Atwood's Table with Two Hanging Masses You have table of width L, masses m1, m2,...
2. Atwood's Table with Two Hanging Masses You have table of width L, masses m1, m2, and m3, two frictionless pulleys, and ideal string. Placing m2 on the table, you attach a bit of string to mass m1 the left pulley, to the left side of m2. Similarly, you hang mass m3 from the right side of m2 using the pulley on the right side of the table. The coefficient of friction of the table is mu. The acceleration of...
Investigation 1 - Connected Particles (Maximum Mark 45) A block mass M kg is resting on...
Investigation 1 - Connected Particles (Maximum Mark 45) A block mass M kg is resting on the horizontal top of a cube. The coefficient of friction between the block and the cube is u. Two strings are attached to the sides of the block. One string passes over a pulley and is attached to an object of mass m kg which is hanging freely a height h metres above the ground. The other string passes over another pulley on the...
need the “exercise” answered. thanks PRACTICE IT Use the worked example above to help you solve this problem. A block with mass m 4.30 kg and a ball with mass m2 = 7.50 kg are connected by a lig...
need the “exercise” answered. thanks
PRACTICE IT Use the worked example above to help you solve this problem. A block with mass m 4.30 kg and a ball with mass m2 = 7.50 kg are connected by a light string that passes over a frictionless pulley, as shown in figure (a). The coefficient of kinetic friction between the block and the surface is 0.300. (a) Find the acceleration of the two objects and the tension in the string. a= 5.16...
Two ropes have one end each attached to a wall and ceiling joint with the other...
Two ropes have one end each attached to a wall and ceiling joint with the other two ends hooked to a small ring. If there is a third rope shown below Rope 1 Rope 2 0 = 30.0 degrees Rope 3 1.0 X 102N Part A - What is the tension in the first rope? VO AED ? Newtons Submit Request Answer Part B - What is the tension on the second rope? ΟΙ ΑΣΦ ? Newton Submit Request Answer...
Two objects are connected to a cord, and the cord is hung over a pulley connected...
Two objects are connected to a cord, and the cord is hung over a pulley connected to the ceiling, as shown in the figure below mg The masses of the objects are m 17.0 kg and m2 12.0 kg, the mass of the pulley is M 5.00 kg, and the radius of the pulley is R 0.300 m. Object m2 is initially on the floor, and object m, is initially 5.00 m above the floor when it is released from...
I need hep figuring out these three problems Force 3 Total 10 3. In the system...
I need hep figuring out these three problems
Force 3 Total 10 3. In the system shown in Figure, a horizontal force Fx-30N acts on an object of mass m,=10kg. The horizontal surface is frictionless. m, 3kg, (a) Find and draw all the forces using free body diagram for each boxes. (b) build equations for both using Newton's 2nd law for both objects. (c) solve the equations to find the acceleration of both objects. (d) solve the equations to find...
1. An unknown mass (mı) on a rough horizontal surface is attached by a wire that passes over a massless, frictionless pulley to a 2.50kg mass (m2) as shown below. The bottom of the hanging mass is 1....
1. An unknown mass (mı) on a rough horizontal surface is attached by a wire that passes over a massless, frictionless pulley to a 2.50kg mass (m2) as shown below. The bottom of the hanging mass is 1.50m above the floor. The system is released from rest at t-0s and the 2.50kg mass strikes the floor 0.82s later. The system is now returned to its initial position and a 1.20kg mass is placed on top of the block of mass...
Question 2 According to Newton's Laws of Motion, if I throw a baseball in outer space...
Question 2 According to Newton's Laws of Motion, if I throw a baseball in outer space - far from any other object- how will that ball move over time? (For the sake of this problem, let's neglect my mass) After the force of my hand no longer acts on the ball: Question 2 options: the ball will move forward, but it will gradually slow down and come to a stop once the force of my hand no longer acts on...
More details and instructions in picture below
1) draw the forces acting on each mass *pulleys are "ideal".
(use appropriate coordinate systems)
2) sum the forces in x,y and find acceleration
Free Body Diagram. Three masses mi, m2, and m3 are attached by a light rope that does not stretch. The rope goes over two massless and frictionless pulleys. Draw the complete free body diagram on each of the three masses. The coefficient of kinetic friction between mi and the...
An object of mass, mi, is placed on a rough table and connected to a string which passes under a pulley then over a pulley and then is fastened to a hanging mass, m2. Assuming mi is stationary, how would you measure the coefficient of friction on mi? (That is calculate a formula for mu s as a function of m1 and m2) If the mass of m2 is increased until mi accelerates with acceleration a. What is the coefficient...
Investigation 1 - Connected Particles (Maximum Mark 45) A block mass M kg is resting on the horizontal top of a cube. The coefficient of friction between the block and the cube is u. Two strings are attached to the sides of the block. One string passes over a pulley and is attached to an object of mass m kg which is hanging freely a height h metres above the ground. The other string passes over another pulley on the...
need the “exercise” answered. thanks
PRACTICE IT Use the worked example above to help you solve this problem. A block with mass m 4.30 kg and a ball with mass m2 = 7.50 kg are connected by a light string that passes over a frictionless pulley, as shown in figure (a). The coefficient of kinetic friction between the block and the surface is 0.300. (a) Find the acceleration of the two objects and the tension in the string. a= 5.16...
Two ropes have one end each attached to a wall and ceiling joint with the other two ends hooked to a small ring. If there is a third rope shown below Rope 1 Rope 2 0 = 30.0 degrees Rope 3 1.0 X 102N Part A - What is the tension in the first rope? VO AED ? Newtons Submit Request Answer Part B - What is the tension on the second rope? ΟΙ ΑΣΦ ? Newton Submit Request Answer...
Two objects are connected to a cord, and the cord is hung over a pulley connected to the ceiling, as shown in the figure below mg The masses of the objects are m 17.0 kg and m2 12.0 kg, the mass of the pulley is M 5.00 kg, and the radius of the pulley is R 0.300 m. Object m2 is initially on the floor, and object m, is initially 5.00 m above the floor when it is released from...
I need hep figuring out these three problems
Force 3 Total 10 3. In the system shown in Figure, a horizontal force Fx-30N acts on an object of mass m,=10kg. The horizontal surface is frictionless. m, 3kg, (a) Find and draw all the forces using free body diagram for each boxes. (b) build equations for both using Newton's 2nd law for both objects. (c) solve the equations to find the acceleration of both objects. (d) solve the equations to find...
1. An unknown mass (mı) on a rough horizontal surface is attached by a wire that passes over a massless, frictionless pulley to a 2.50kg mass (m2) as shown below. The bottom of the hanging mass is 1.50m above the floor. The system is released from rest at t-0s and the 2.50kg mass strikes the floor 0.82s later. The system is now returned to its initial position and a 1.20kg mass is placed on top of the block of mass...
