What is the magnitude field at the center of a square made of a wire carrying...
What is the magnitude field at the center of a square made of a wire carrying a current that loops the square in a counter clockwise direction if the square lies in the x-y plane?
How do you solve this using the Biot-Savart Law?

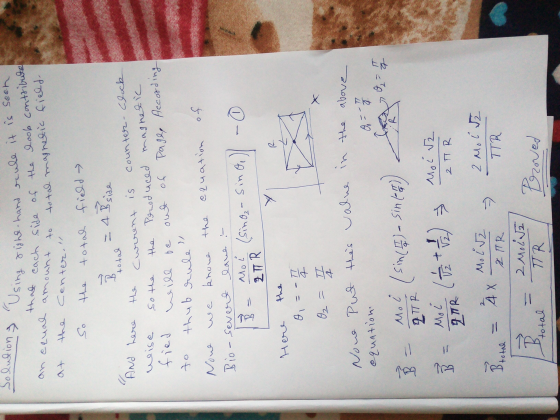

Answer:
Homework Answers
Add Answer to:
What is the magnitude field at the center of a square made of a
wire carrying...
Consider the current-carrying wire shown in the figure. The current creates a magnetic field at the...
Consider the current-carrying wire shown in the figure. The current creates a magnetic field at the point P, which is the center of the arc segment of the wire. If 0 = 20.0°, the radius of the arc is 0.700 m, and the current is 2.00 A, what are the magnitude (in nT) and direction of the field produced at P? P i magnitude 285.7 Apply the Biot-Savart law. What will be the contributions of the segments of wire along...
Imagine that you have a metal wire bent into the shape of an equilateral triangle with...
Imagine that you have a metal wire bent into the shape of an equilateral triangle with side lengths of l. This triangle is carrying current, 1, in a direction clockwise around the triangle. Find the magnetic field (magnitude and direction) that the current produces at the center of the triangle. Hint: Use the Biot-Savart law to find the magnetic field for a finite straight wire. How does this help? -
Imagine that you have a metal wire bent into the shape of an equilateral triangle with...
Imagine that you have a metal wire bent into the shape of an equilateral triangle with side lengths of l. This triangle is carrying current, 1, in a direction clockwise around the triangle. Find the magnetic field (magnitude and direction) that the current produces at the center of the triangle. Hint: Use the Biot-Savart law to find the magnetic field for a finite straight wire. How does this help? -
2. RFID Tag Magnetic field: Consider a square loop of wire that lies in the x-y plane and carries...
2. RFID Tag Magnetic field: Consider a square loop of wire that lies in the x-y plane and carries an electric current lo. The center of the loop is located at the origin and each side has length a. The current flows in a counter-clockwise direction as shown in the figure below Note*: This is a common design for an RFID tag's antenna, we will analyze RFID tag detection at a later time. a) Using Biot-Savart's law, find an expression...
Problem 3 (5000) Biot-Savart Law: The law states that the magnetic field at a point P...
Problem 3 (5000) Biot-Savart Law: The law states that the magnetic field at a point P due to a length element ds carrying a steady current / located at i away is given by dR - Holds xi _4.1 ds xi 40 p² 403 Question: Derive the Biot-Savart Law by using the vector magnetic potential A (2000). Then, find B at the center of the loop which is an 8(cm) x 6(cm) rectangular conducting loop. The loop lies in the...
normal 2. RFID Tag Magnetic field: Consider a square loop of wire that lies in the...
normal 2. RFID Tag Magnetic field: Consider a square loop of wire that lies in the x-y plane and carries an electric current lo. The center of the loop is located at the origin and each side has length a. The current flows in a counter-clockwise direction as shown in the figure below. Note*: This is a common design for an RFID tag's antenna, we will analyze RFID tag detection at a later time. Using Biot-Savart's law, find an expression...
12999 3. What is the magnetic field (magnitude and direction) at each of the positions a-c...
12999 3. What is the magnetic field (magnitude and direction) at each of the positions a-c in the figure to the side? What force will each wire experience (per unit length)? 10A 120 cm 4. Consider a current-carrying wire that has been twisted to form a half circle of radius r. Use the Biot-Savart Law to set up an integral for the magnetic field at the center of the circle. As usual, do not solve the integral, but clearly set...
D at the origin and continues along the negative y axis. The current in the wire is (JA and flows...
d at the origin and continues along the negative y axis. The current in the wire is (JA and flows in the positive x direction, then in the Consider a wire along the x axis and negative y direction. Calculate the magnitude of the magnetic field produced by the wire at the point (1.1). (Use Biot Savart law). The integra might be useful State your answer in terms of Ho i.e. set Ho 1 Answer The two wire parts contribute...
Use the Biot-Savart law to derive an expression for the magnetic field a distance wire carrying...
Use the Biot-Savart law to derive an expression for the magnetic field a distance wire carrying current l Hints: from an infinitely long lds dx P ● The Biot-Savart Law says B-40 .Only calculate the magnitude of the field. It's fine to 4π calculate B = goff las,1, we defined the direction in class using the right hand rule Consider the diagram: ld × fl = ld llfl sin θ. Since f is a unit vector, Ifl = 1, so...
please make sure to fill in the blanks (a) A conducting loop in the shape of...
please make sure to fill in the blanks
(a) A conducting loop in the shape of a square of edge length l = 0.310 m carries a current I = 10.5 A as in the figure below. Calculate the magnitude and direction of the magnetic field at the center of the square. (b) If this conductor is reshaped to form a circular loop and carries the same current, what is the value of the magnetic field at the center? Part...
Consider the current-carrying wire shown in the figure. The current creates a magnetic field at the point P, which is the center of the arc segment of the wire. If 0 = 20.0°, the radius of the arc is 0.700 m, and the current is 2.00 A, what are the magnitude (in nT) and direction of the field produced at P? P i magnitude 285.7 Apply the Biot-Savart law. What will be the contributions of the segments of wire along...
Imagine that you have a metal wire bent into the shape of an equilateral triangle with side lengths of l. This triangle is carrying current, 1, in a direction clockwise around the triangle. Find the magnetic field (magnitude and direction) that the current produces at the center of the triangle. Hint: Use the Biot-Savart law to find the magnetic field for a finite straight wire. How does this help? -
2. RFID Tag Magnetic field: Consider a square loop of wire that lies in the x-y plane and carries an electric current lo. The center of the loop is located at the origin and each side has length a. The current flows in a counter-clockwise direction as shown in the figure below Note*: This is a common design for an RFID tag's antenna, we will analyze RFID tag detection at a later time. a) Using Biot-Savart's law, find an expression...
Problem 3 (5000) Biot-Savart Law: The law states that the magnetic field at a point P due to a length element ds carrying a steady current / located at i away is given by dR - Holds xi _4.1 ds xi 40 p² 403 Question: Derive the Biot-Savart Law by using the vector magnetic potential A (2000). Then, find B at the center of the loop which is an 8(cm) x 6(cm) rectangular conducting loop. The loop lies in the...
normal 2. RFID Tag Magnetic field: Consider a square loop of wire that lies in the x-y plane and carries an electric current lo. The center of the loop is located at the origin and each side has length a. The current flows in a counter-clockwise direction as shown in the figure below. Note*: This is a common design for an RFID tag's antenna, we will analyze RFID tag detection at a later time. Using Biot-Savart's law, find an expression...
12999 3. What is the magnetic field (magnitude and direction) at each of the positions a-c in the figure to the side? What force will each wire experience (per unit length)? 10A 120 cm 4. Consider a current-carrying wire that has been twisted to form a half circle of radius r. Use the Biot-Savart Law to set up an integral for the magnetic field at the center of the circle. As usual, do not solve the integral, but clearly set...
d at the origin and continues along the negative y axis. The current in the wire is (JA and flows in the positive x direction, then in the Consider a wire along the x axis and negative y direction. Calculate the magnitude of the magnetic field produced by the wire at the point (1.1). (Use Biot Savart law). The integra might be useful State your answer in terms of Ho i.e. set Ho 1 Answer The two wire parts contribute...
Use the Biot-Savart law to derive an expression for the magnetic field a distance wire carrying current l Hints: from an infinitely long lds dx P ● The Biot-Savart Law says B-40 .Only calculate the magnitude of the field. It's fine to 4π calculate B = goff las,1, we defined the direction in class using the right hand rule Consider the diagram: ld × fl = ld llfl sin θ. Since f is a unit vector, Ifl = 1, so...
please make sure to fill in the blanks
(a) A conducting loop in the shape of a square of edge length l = 0.310 m carries a current I = 10.5 A as in the figure below. Calculate the magnitude and direction of the magnetic field at the center of the square. (b) If this conductor is reshaped to form a circular loop and carries the same current, what is the value of the magnetic field at the center? Part...
