Question

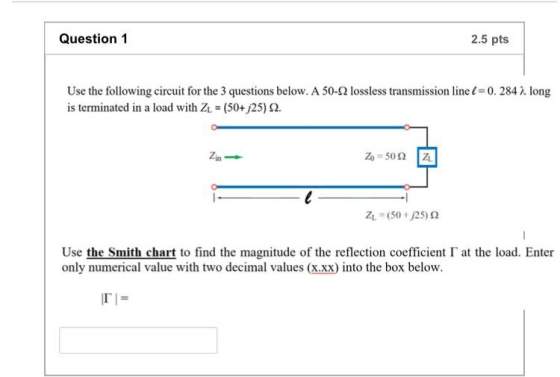

Question 1 2.5 pts Use the following circuit for the 3 questions below. A 50-2 lossless transmission line 0. 284A long is ter

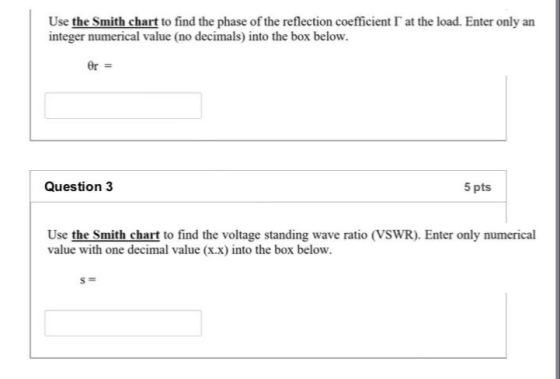

Use the Smith chart to find the phase of the reflection coefficient I at the load. Enter only an integer numerical value (no
