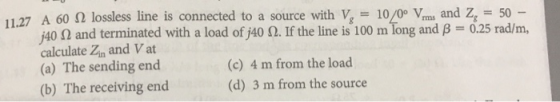

11.27 A 60 N lossless line is connected to a...
f) the current wave inside the transmission line represented in the time domain Problem 1: A...
f) the current wave inside the transmission line represented
in the time domain
Problem 1: A certain transmission line operating at w = 10 rad/s has a = 6 dB/m, B = 2 rad/m, and Zo = 75 92, and is 2 m long. If the line is connected to a source of 10L 0° V, Zs -40 92 and terminated by a load of 30+ j40 92, determine: (a) the input impedance, Zin (b) the sending-end current, Ion (c)...
A lossless transmission line with 50 Ω characteristic impedance has a 50 V step function placed...
A lossless transmission line with 50 Ω characteristic impedance has a 50 V step function placed on it, generated from a source impedance of 10 Ω. Assume the velocity of the signal on the line is 106 m/s, the line is 100 m long, and is terminated in a load impedance of 100 Ω. (a) What is the source voltage? (4 marks) (b) How long does the step function take to reach the termination load impedance? (2 marks) (c) What...
A 2.5 meter long section of Zo=50 12 lossless coaxial transmission line is connected to a...
A 2.5 meter long section of Zo=50 12 lossless coaxial transmission line is connected to a source with vg(t) = 10 sin(611 10't + 60°) (V) and Zg=150 12. If the line, which uses insulating material with a relative permittivity of &r=4, is terminated in a load ZŁ=(100 – j 50) (2, determine: (a) Wavelength a on the line. (b) The reflection coefficient I at the load. (c) The input impedance at the source. (d) The voltage phasor V; at...
kV/phase, 60 Hz, lossless short transmission line has a short-circuit power of 500 MVA/phase. Consider 7. A a unity power factor load connected at the receiving end. Assume that the sending end volta...
kV/phase, 60 Hz, lossless short transmission line has a short-circuit power of 500 MVA/phase. Consider 7. A a unity power factor load connected at the receiving end. Assume that the sending end voltage is equal to the nominal voltage. a. Determine the maximum active power this line can transmit (5 points) b. Determine the reactance of the line (5 points) c. Using basic equations of circuit analysis, show that the magnitude of the receiving end voltage (VR) is approximately 71%...
A three-phase lossless line is operating at 60 Hz and has 300 miles length. The series...
A three-phase lossless line is operating at 60 Hz and has 300 miles length. The series impedance of the line is 0.8and the shunt admittance is 5.1x10- supports the surge impedance load at the receiving end terminal, find . If the line om om a) b) Voltage, current, real and reactive power at the sending end terminal Voltage regulation
3. The voltage waveform shown below was observed at the sending end of a lossless transmission...
3. The voltage waveform shown below was observed at the sending end of a lossless transmission line in response to a step voltage. If Z = 60 Q and Z. = 50 , calculate a) the generator voltage, V. b) the length of the line, assuming u.-C. c) the load impedance, Z V (0,1) 8 V 5 V 04 us
4. A 120- lossless transmission line is terminated in an impedance of-j 60. If the amplitude...
4. A 120- lossless transmission line is terminated in an impedance of-j 60. If the amplitude of the incident-wave voltage at the load is 100 V, calculate the amplitude of the total voltage at the load. Also determine the distance from the load to the first voltage minimum and the amplitude of the ac voltage at this minimum
A 6 m section of a lossless transmission line has a distributed capacitance C = 33.33...
A 6 m section of a lossless transmission line has a distributed capacitance C = 33.33 pF/m and a distributed inductance L = 0.75 μH/m. The transmission line is driven by a generator operating at 40 MHz, with a voltage Vg = 4.33 - 2.5j V and a source impedance Zg = 150 Ω. The line is terminated by a load ZL= 150 – j50 Ω. Calculate the current drawn from the source.
4 A three-phase, 765-kV, 50-Hz transposed line is composed of four ACSR 1,510,500, 54/19 Parrot conductors per phas...
4 A three-phase, 765-kV, 50-Hz transposed line is composed of four ACSR 1,510,500, 54/19 Parrot conductors per phase with flat horizontal spacing of 16 m. The conductors have a diameter of 3.8252 cm and a GMR of 1.5453 cm. The bundle spacing is 40 cm. The line is Km long, and for the purpose of this problem, a lossless line is assumed (a) Determine the transmission line surge impedance Zc, phase constant p, wave surge impedance loading SIL, and the...
A three-phase line, which has an impedance of (2 + j4) Ω per phase, feeds two...
A three-phase line, which has an impedance of (2 + j4) Ω per phase, feeds two balanced three-phase loads that are connected in parallel. One of the loads is Y- connected with an impedance of (30 + j40) Ω per phase, and the other is delta- connected with an impedance of (60 + j45) Ω per phase. The line is energized at the sending end from a 60-Hz, three phase, balanced voltage source of 120√3 V (rms, line- to-line). Determine...
f) the current wave inside the transmission line represented
in the time domain
Problem 1: A certain transmission line operating at w = 10 rad/s has a = 6 dB/m, B = 2 rad/m, and Zo = 75 92, and is 2 m long. If the line is connected to a source of 10L 0° V, Zs -40 92 and terminated by a load of 30+ j40 92, determine: (a) the input impedance, Zin (b) the sending-end current, Ion (c)...
A 2.5 meter long section of Zo=50 12 lossless coaxial transmission line is connected to a source with vg(t) = 10 sin(611 10't + 60°) (V) and Zg=150 12. If the line, which uses insulating material with a relative permittivity of &r=4, is terminated in a load ZŁ=(100 – j 50) (2, determine: (a) Wavelength a on the line. (b) The reflection coefficient I at the load. (c) The input impedance at the source. (d) The voltage phasor V; at...
kV/phase, 60 Hz, lossless short transmission line has a short-circuit power of 500 MVA/phase. Consider 7. A a unity power factor load connected at the receiving end. Assume that the sending end voltage is equal to the nominal voltage. a. Determine the maximum active power this line can transmit (5 points) b. Determine the reactance of the line (5 points) c. Using basic equations of circuit analysis, show that the magnitude of the receiving end voltage (VR) is approximately 71%...
A three-phase lossless line is operating at 60 Hz and has 300 miles length. The series impedance of the line is 0.8and the shunt admittance is 5.1x10- supports the surge impedance load at the receiving end terminal, find . If the line om om a) b) Voltage, current, real and reactive power at the sending end terminal Voltage regulation
3. The voltage waveform shown below was observed at the sending end of a lossless transmission line in response to a step voltage. If Z = 60 Q and Z. = 50 , calculate a) the generator voltage, V. b) the length of the line, assuming u.-C. c) the load impedance, Z V (0,1) 8 V 5 V 04 us
4. A 120- lossless transmission line is terminated in an impedance of-j 60. If the amplitude of the incident-wave voltage at the load is 100 V, calculate the amplitude of the total voltage at the load. Also determine the distance from the load to the first voltage minimum and the amplitude of the ac voltage at this minimum
4 A three-phase, 765-kV, 50-Hz transposed line is composed of four ACSR 1,510,500, 54/19 Parrot conductors per phase with flat horizontal spacing of 16 m. The conductors have a diameter of 3.8252 cm and a GMR of 1.5453 cm. The bundle spacing is 40 cm. The line is Km long, and for the purpose of this problem, a lossless line is assumed (a) Determine the transmission line surge impedance Zc, phase constant p, wave surge impedance loading SIL, and the...
