Determine the angular acceleration and
acceleration equations.
Homework Answers
Add Answer to:
Determine the angular acceleration and
acceleration equations.

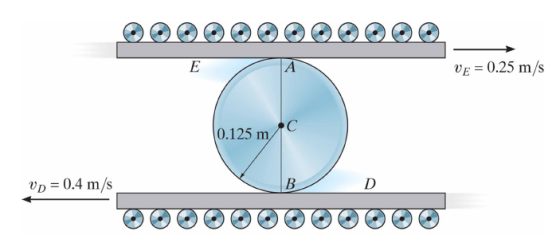

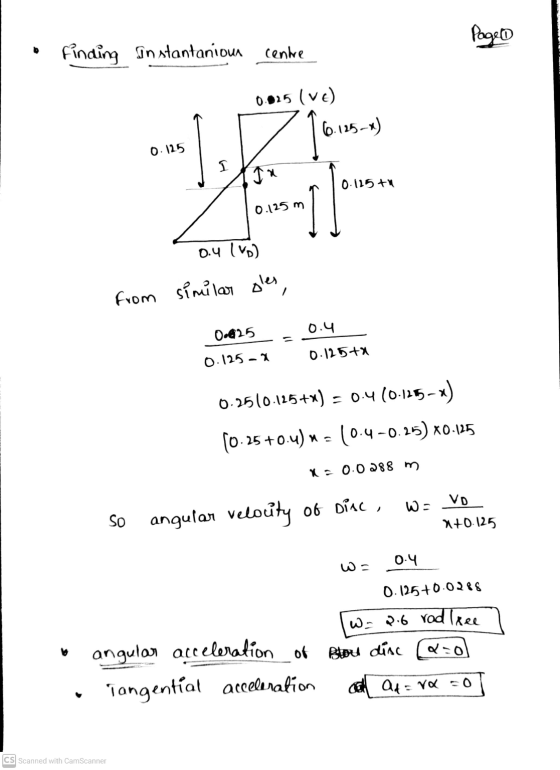

E А VE = 0.25 m/s С 0.125 m...
determine the angular velocity and angular acceleration of link BC and the acceleration of piston C...
determine the angular velocity and angular acceleration of link BC and the acceleration of piston C at the instant shown. draw the velocity and aceleratin polygon w Of the wheel is constant = 6 rad/s 0.8 m B 30° 0.2 m с w = 6 rad/s
determine the angular velocity and angular acceleration of link BC and the acceleration of piston C...
determine the angular velocity and angular acceleration of link BC and the acceleration of piston C at the instant shown. draw the velocity and aceleratin polygon w Of the wheel is constant = 6 rad/s 0.8 m B 30° 0.2 m с w = 6 rad/s
Name: The flywheel rotates with angular velocity ? = 3 rad/s and angular acceleration ? :...
Name: The flywheel rotates with angular velocity ? = 3 rad/s and angular acceleration ? : 5 rad/s. Determine (a) the motion of the flywheel, rod AB, and rod BC. Then determine the angular acceleration of (b) link AB and (c) link BC at the instant shown. Use: a = 0.4 m, b = 0.5 m, r = 0.3 m, d= 4, and e-3. (Hint: Use Translating Frames analysis.) 4. Motion: 1. Flywheel-> 2. Rod AB-> 3. Rod BC-
0.5 m The flywheel rotates with angular velocity w=2 rad/s and angular acceleration of a=6 rad/s2....
0.5 m The flywheel rotates with angular velocity w=2 rad/s and angular acceleration of a=6 rad/s2. Determine the angular acceleration of links AB and BC at this instant. w = 2 rad/s a = 6 rad/s? B 0.3 m 0.4 m co
100 mm А 75 mm С 100 mm X mm At the instant shown, bar BC...
100 mm А 75 mm С 100 mm X mm At the instant shown, bar BC has a constant angular velocity of 6.8 rad/s counter clockwise. Given x 182 mm. Using relative velocity and acceleration analysis, determine: (a) the angular velocity (magnitude and direction of the plate. rad/s Check (b) the velocity (magnitude) of point relative to the plate. m/s Check c) the angular acceleration (magnitude and direction of the plate. rad/s2 Check (d) the acceleration magnitude) of point relative...
0.25 10.125 0,125 [Alem) | [B] (m) [C] (m) | Rate 0.125 0.2 0.1 5.25.102 1.05.103...
0.25 10.125 0,125 [Alem) | [B] (m) [C] (m) | Rate 0.125 0.2 0.1 5.25.102 1.05.103 0.4 0.2 0.4 0.1 2.10.13 5.25103 Ata Bt 3C Products, Determine the order with respect to A.
QUESTION 9-4. Determine the angular acceleration of AB as CD moves with the angular speed and...
QUESTION 9-4. Determine the angular acceleration of AB as CD moves with the angular speed and acceleration shown.
0.6 m ос 0.6 m B ( = 4 rad's - 2 radís 0.3 m А DO
7. The rod CD is rotating with an angular velocity cp = 2 rad/s. Determine: i)...
7. The rod CD is rotating with an angular velocity cp = 2 rad/s. Determine: i) The velocity of point C and show its direction in the figure below ii) What is the angular velocity of link BC? iii) What is the velocity of points B and E? iv) What is the angular velocity of link AB? (30 points) 0.2 m 0.2 m B E 0.4 m 30° Wcp= 2 rad/s А. D
7. The rod CD is rotating with an angular velocity OcD = 2 rad/s. Determine: i)...
7. The rod CD is rotating with an angular velocity OcD = 2 rad/s. Determine: i) The velocity of point C and show its direction in the figure below ii) What is the angular velocity of link BC? iii) What is the velocity of points B and E? iv) What is the angular velocity of link AB? (30 points) 0.2 m 0.2 m B E 0.4 m 30° Wcp= 2 rad/s D А
7. The rod CD is rotating with an angular velocity OcD = 2 rad/s. Determine: i)...
7. The rod CD is rotating with an angular velocity OcD = 2 rad/s. Determine: i) The velocity of point C and show its direction in the figure below ii) What is the angular velocity of link BC? iii)What is the velocity of points B and E? iv) What is the angular velocity of link AB? (30 points) 0.2 m_ 0.2 m B E 0.4 m 30° WCD= 2 rad/s D А
determine the angular velocity and angular acceleration of link BC and the acceleration of piston C at the instant shown. draw the velocity and aceleratin polygon w Of the wheel is constant = 6 rad/s 0.8 m B 30° 0.2 m с w = 6 rad/s
determine the angular velocity and angular acceleration of link BC and the acceleration of piston C at the instant shown. draw the velocity and aceleratin polygon w Of the wheel is constant = 6 rad/s 0.8 m B 30° 0.2 m с w = 6 rad/s
Name: The flywheel rotates with angular velocity ? = 3 rad/s and angular acceleration ? : 5 rad/s. Determine (a) the motion of the flywheel, rod AB, and rod BC. Then determine the angular acceleration of (b) link AB and (c) link BC at the instant shown. Use: a = 0.4 m, b = 0.5 m, r = 0.3 m, d= 4, and e-3. (Hint: Use Translating Frames analysis.) 4. Motion: 1. Flywheel-> 2. Rod AB-> 3. Rod BC-
0.5 m The flywheel rotates with angular velocity w=2 rad/s and angular acceleration of a=6 rad/s2. Determine the angular acceleration of links AB and BC at this instant. w = 2 rad/s a = 6 rad/s? B 0.3 m 0.4 m co
100 mm А 75 mm С 100 mm X mm At the instant shown, bar BC has a constant angular velocity of 6.8 rad/s counter clockwise. Given x 182 mm. Using relative velocity and acceleration analysis, determine: (a) the angular velocity (magnitude and direction of the plate. rad/s Check (b) the velocity (magnitude) of point relative to the plate. m/s Check c) the angular acceleration (magnitude and direction of the plate. rad/s2 Check (d) the acceleration magnitude) of point relative...
0.25 10.125 0,125 [Alem) | [B] (m) [C] (m) | Rate 0.125 0.2 0.1 5.25.102 1.05.103 0.4 0.2 0.4 0.1 2.10.13 5.25103 Ata Bt 3C Products, Determine the order with respect to A.
QUESTION 9-4. Determine the angular acceleration of AB as CD moves with the angular speed and acceleration shown.
0.6 m ос 0.6 m B ( = 4 rad's - 2 radís 0.3 m А DO
7. The rod CD is rotating with an angular velocity cp = 2 rad/s. Determine: i) The velocity of point C and show its direction in the figure below ii) What is the angular velocity of link BC? iii) What is the velocity of points B and E? iv) What is the angular velocity of link AB? (30 points) 0.2 m 0.2 m B E 0.4 m 30° Wcp= 2 rad/s А. D
7. The rod CD is rotating with an angular velocity OcD = 2 rad/s. Determine: i) The velocity of point C and show its direction in the figure below ii) What is the angular velocity of link BC? iii) What is the velocity of points B and E? iv) What is the angular velocity of link AB? (30 points) 0.2 m 0.2 m B E 0.4 m 30° Wcp= 2 rad/s D А
7. The rod CD is rotating with an angular velocity OcD = 2 rad/s. Determine: i) The velocity of point C and show its direction in the figure below ii) What is the angular velocity of link BC? iii)What is the velocity of points B and E? iv) What is the angular velocity of link AB? (30 points) 0.2 m_ 0.2 m B E 0.4 m 30° WCD= 2 rad/s D А
