A uniform 2 kg solid disk of radius R = 0.4 m is free to rotate...
A uniform 2 kg solid disk of radius R = 0.4 m is free to rotate on a frictionless horizontal axle through its center. The disk is initially at rest, and then a 10 g bullet traveling at 590 m/s is fired into it as shown in the figure below.

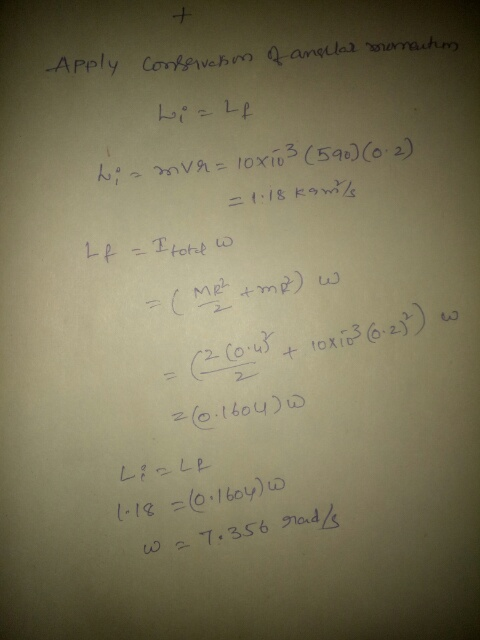

If the bullet embeds itself in the disk at a vertical distance of 0.2 m above the axle, what will be the angular velocity of the disk?
