Ilic LLIR + li 6A(1) R, 2 mH32 +5°F 3i ka L In the circuit above, R1 is 24 and R2 is 12 1. What is the current ic at time t=0

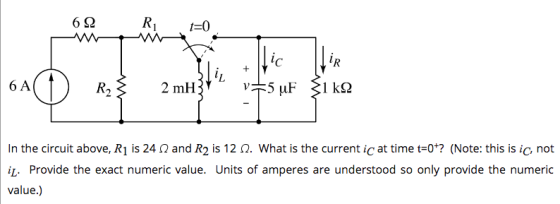

In the circuit above, R1 is 24Ω and R2 is 12 Ω. What is the current iC at time t=0+?

engineering   Electrical-Engineering
3 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

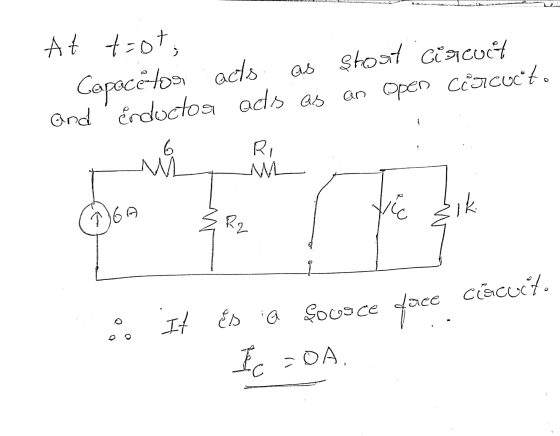

0 0
Add a comment
Know the answer?
Add Answer to:
In the circuit above, R1 is 24Ω and R2 is 12 Ω. What is the current iC at time t=0+?
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • For the above circuit, E1 = 3.57 V, E2 = 5.79 V. r1 = 0.591 Ω, r2 = 0.781 Ω, R1 = 41.3 Ω, R2 = 65...

    For the above circuit, E1 = 3.57 V, E2 = 5.79 V. r1 = 0.591 Ω, r2 = 0.781 Ω, R1 = 41.3 Ω, R2 = 65.1 Ω, R3 = 73.3 Ω. a)Which equation would describe Kirchhoff's Junction Law at the right junction? A I1 - I2 = I3 B  I1 + I2 = I3 C I1 + I3 = I2 D I1 = I2 + I3 b)Which equation would describe Kirchhoff's Loop Law for the lower half-loop? A E2...

  • For the circuit above, vi = 8 V, R1 = 200 Ω, R2 = 100 Ω....

    For the circuit above, vi = 8 V, R1 = 200 Ω, R2 = 100 Ω. Find vo. ki VioWWW

  • In the circuit below, R1-42 Ω R2-82 Ω R3-137 Ω R4 43 Ω R5-219 Ω and...

    In the circuit below, R1-42 Ω R2-82 Ω R3-137 Ω R4 43 Ω R5-219 Ω and the voltage supplied by the power supply is V1 R1 R2 R5 R3 R4 What is the current flowing through resistor R1? Submit Answer Tries 0/20 What is power dissipated by resistor R1? Submit Answer Tries 0/20

  • In the circuit in the figure, a battery supplies Vemf-23.0 V and R1-8.00 Ω, R2-6.00 Ω,...

    In the circuit in the figure, a battery supplies Vemf-23.0 V and R1-8.00 Ω, R2-6.00 Ω, and L-4.00 H. Calculate each of the following a long time after the switch is closed: a) the magnitude of the current flowing out of the battery? 6.708 A emf Computer's answer now shown above. Tries 0/5 b) the magnitude of the current through R1 2.875 A Computer's answer now shown above. Tries 0/5 c) the magnitude of the current through R2 3.833 A...

  • Consider the circuit with R1 = 4 Ω, R2 = 10 Ω, R3 = 9 Ω,...

    Consider the circuit with R1 = 4 Ω, R2 = 10 Ω, R3 = 9 Ω, R4 = 6 Ω, and R5 = 7 Ω as above with a battery of 10 volt. (a) Calculate the equivalent resistant of the entire circuit. (b) Calculate the total current in the circuit. (c) Calculate the voltage drop across the R5 resistor. (d) Calculate the current through the R5 resistor. (e) Calculate the dissipated power across the R5 resistor.

  • In the circuit below, for R1= 484 Ω, R2= 242 Ω, R3= 484 Ω, R4= 242...

    In the circuit below, for R1= 484 Ω, R2= 242 Ω, R3= 484 Ω, R4= 242 Ω, and EMF=134 V. Find the current through R1. (in mA). Ri R3 } R2 R4

  • Consider the circuit shown below. Where R1 = 30 Ω , R2 = 40 Ω ,...

    Consider the circuit shown below. Where R1 = 30 Ω , R2 = 40 Ω , and R3 = 90 Ω . When a battery with unknown voltage is hooked up between points A and B, the current through the resistor R1 is I1 = 0.050 A What is the voltage across R3? What is the current through the resistor R3? What is the total current produced by the battery hooked between points A and B? What is the voltage...

  • In the circuit below, R1 = 83 Ω, R2 = 116 Ω, R3 = 119 Ω,...

    In the circuit below, R1 = 83 Ω, R2 = 116 Ω, R3 = 119 Ω, R4 = 52 Ω, R5 = 247 Ω and the voltage supplied by the power supply is V1 = 76 V. 1. What is the voltage drop across resistor R2? (in V) 2. What is the voltage drop across restore R3? (in V) Course Contents > Practice exam ... In the circuit below, R1 = 83 2, F R2 R5 AAA WY R4 What...

  • In the circuit shown in (Figure 1), R1=3 Ω , R2=5 Ω , R3=4 Ω ,...

    In the circuit shown in (Figure 1), R1=3 Ω , R2=5 Ω , R3=4 Ω , R4=9 Ω , and R5=9 Ω . Part A: What is the current flowing through resistor R1 (A)? Part B: What is the current flowing through resistor R2 (A)? Part C: What is the current flowing through resistor R3 (A)? Part D: What is the total power supplied by the battery (W)? ㄱ

  • Q3. In the circuit as shown below, given that R1 = 4 Ω, R2-4 Ω, L...

    Q3. In the circuit as shown below, given that R1 = 4 Ω, R2-4 Ω, L 2 H, and C = 0.5 F, where vs(t) is given by the waveform displayed in the same figure 1 V (a) Determine the s-domain current I(so) at so-0.05 jo.07 (rad/s): IL(So)- Submit Answer Tries 0/3 (b) Determine the t-domain current i(to) at to 4.5 (s): Submit Answer Tries 0/8 Q4. Determine the output voltage in the circuit as shown below, given that Vs-35*u(t)...
