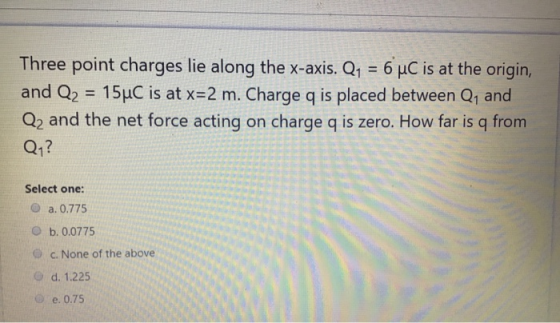

Three point charges lie along the x-axis. Q1 = 6 uC is at the origin, and...

Question

Question

science physics

Answer 1

Answer #1

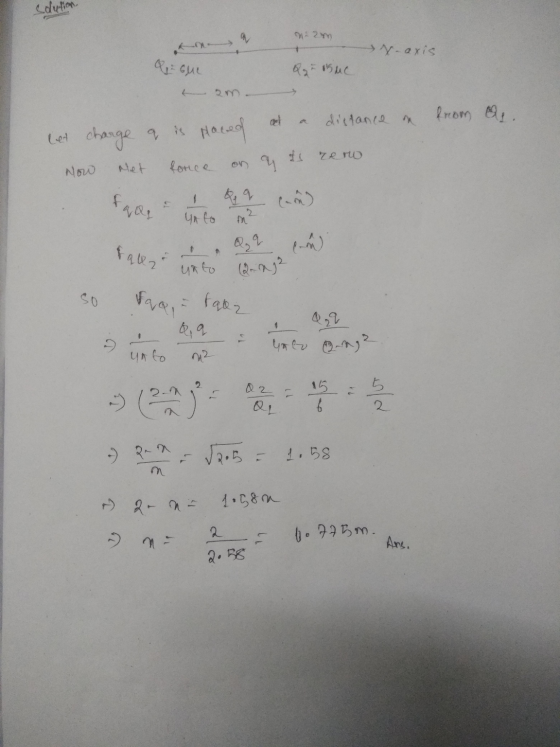

2m N-axis - си Qar 15 uc am & from a let charge Now Met a is placed at a distance force on 4 ts rew . gl. unto in ta & Q q .

Answer 2

Similar Homework Help Questions

Example:1 Three point charges lie along the x axis. The positive charge q1 - 15.0 uC...

Example:1 Three point charges lie along the x axis. The positive charge q1 - 15.0 uC is at x- 2.00 m, the positive charge q,-6.00 μC is at the origin, and the net force acting on q3 is zero What is the x coordinate of q3? 2.00 m 2.00 x 72 9s Fis 71
Three charges lie along the x-axis. The positive charge q1 = 9.07 µC is at x...

Three charges lie along the x-axis. The positive charge q1 = 9.07 µC is at x = 1.65m, and the negative charge q2 = -2.29 µC is at the origin. Where must a positivecharge q3 be placed on the x-axis so that the resultant force on it is zero?
Two point charges lie along the x-axis as shown in Figure A. The positive charge q1...

Two point charges lie along the x-axis as shown in Figure A. The positive charge q1 = 15.0 C is at x = 2.00 m, the negative charge q2 = - 25.0 C is at the origin. Find the resultant force acting on q3 =-10.0C, which is located at x = 5.0 m from q2.

three point charges lie along the x axis as shown in the figure (no figure was...

three point charges lie along the x axis as shown in the figure (no figure was given). the positive charge q1=15 mc is at x=2 m, the positive charge q2 =6 mc is at the origin, and the resultant force acting on q3 is 0. what is the x coordinate of q3?
Question 2: Three charges lie along the x axis. The positive charge q1 = 15.0 μC...

Question 2: Three charges lie along the x axis. The positive charge q1 = 15.0 μC is at x = 2.00 m, and the positive charge q2-6.00 μC is at the origin, where a negative charge q3 must be placed on the x axis such that the resultant force on it is zero. Find the position of charge q3
Exercise 15.1 (page 392) Three charges lie along the x-axis. A positive charge q1 -10 C...

Exercise 15.1 (page 392) Three charges lie along the x-axis. A positive charge q1 -10 C is at x-1 m, and a negative charge q2- 2uC is at the origin. Where must a positive charge q3 be placed on the x-axis so that the resultant force on it is zero? Exercise 15.2 (Page 394): Using the same triangle,find the vector components of the electric force on q and the vector's magnitude and direction.

If there are two point charges on an x-axis. Q1=2.9 uC and Q2=-1.7uC. Q2 is placed...

If there are two point charges on an x-axis. Q1=2.9 uC and Q2=-1.7uC. Q2 is placed at the origin, and Q1 is placed at the coordinate x1= -4.0cm. a.) At what point along the x-axis is the electric field zero? provide the x-coordinates I got stuck at the equation: 1.7(x+0.04)^2=2.9x^2 (I don't even know if that's correct) b.) At what point along the x axis is the potential zero? Provide the x-coordinates of the points. Please Help Thank you!
Three point charges lie along the x-axis. Charge 1 has q1=6µC and is at x= -3.00cm....

Three point charges lie along the x-axis. Charge 1 has q1=6µC and is at x= -3.00cm. Charge 2 is at the origen and has q2= 1.50µC. Charge 3 is located at x3= 2.00cm and has a q3= 2.00µC. Calculate the magnitude and direction of the net electric force on q1, q2, and q3.
Three point charges are arranged along the x axis. Charge q1 = -4.60 nC is located...

Three point charges are arranged along the x axis. Charge q1 = -4.60 nC is located at x= 0.250 m and charge q2 = 2.50 nC is at x= -0.350 m . A positive point charge q3 is located at the origin. Part A- What must the value of q3 be for the net force on this point charge to have magnitude 4.30 μN ? Part B- Where along the x axis can q3 be placed and the net force...

Three point charges are arranged along the x axis. Charge q1 = -4.00 nC is located...

Three point charges are arranged along the x axis. Charge q1 = -4.00 nC is located at x= 0.200 m and charge q2 = 2.00 nC is at x= -0.340 m . A positive point charge q3 is located at the origin. What must the value of q3 be for the net force on this point charge to have magnitude 4.00 μN ? Where along the x axis can q3 be placed and the net force on it be zero,...
