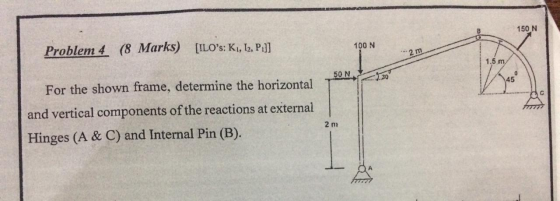

![150 N Problem 4 (8 Marks) [ILOs: K1, 12, P.]] 100 N --- 2m 1.5 m 50 N .... For the shown frame, determine the horizontal | a](http://img.homeworklib.com/questions/de62f380-bb77-11eb-b6c3-31479a09fb9a.png?x-oss-process=image/resize,w_560)

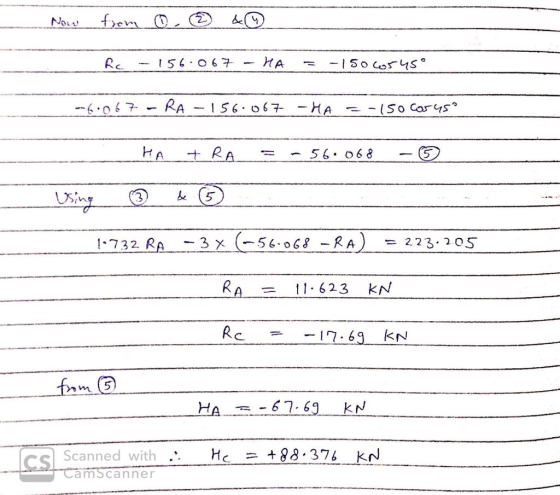

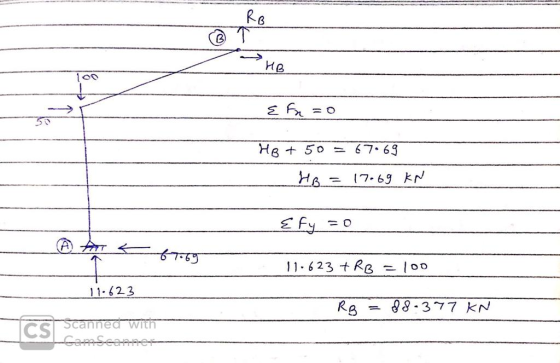

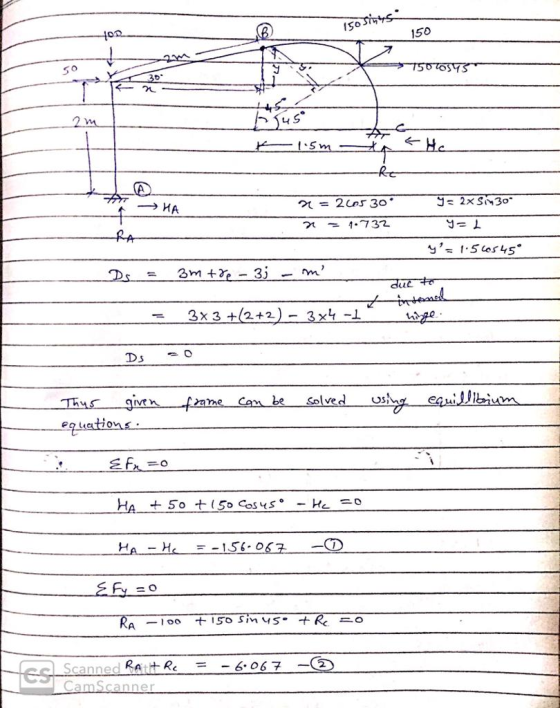

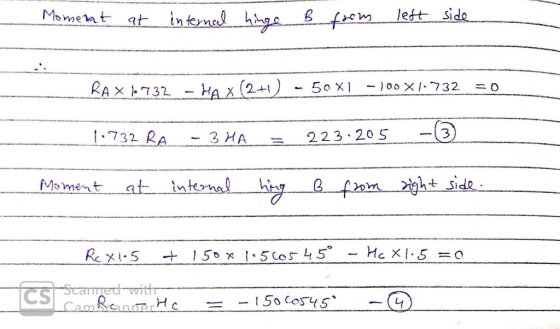

Homework Answers
Add Answer to:
150 N Problem 4 (8 Marks) [ILO's: K1, 12, P.]] 100 N --- 2m 1.5 m...
