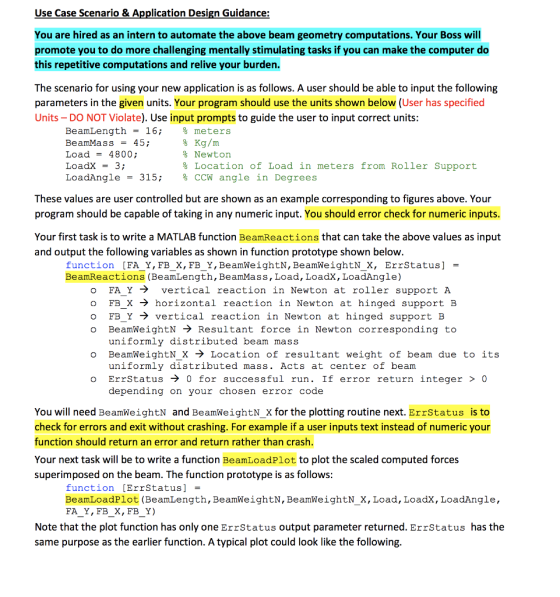

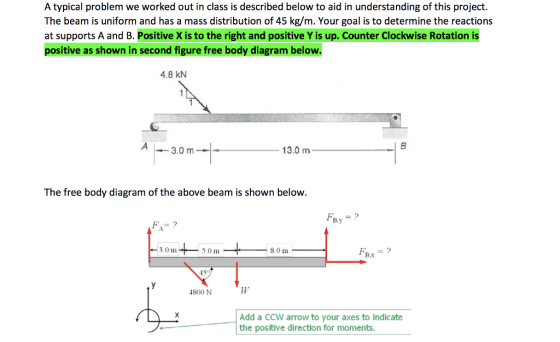

write a MATLAB Application that takes in as input any load and mass of beam and compute the reaction at the supports A and B to ensure static stability. The load angle and its location can also be varied. The beam length can also be varied.

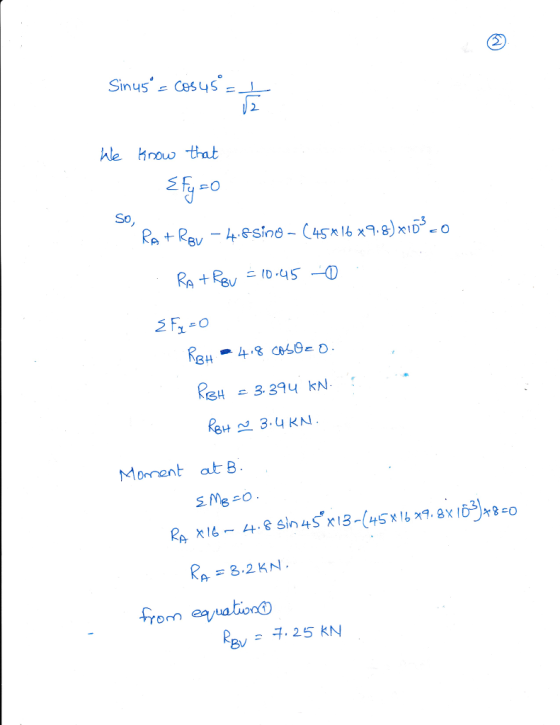

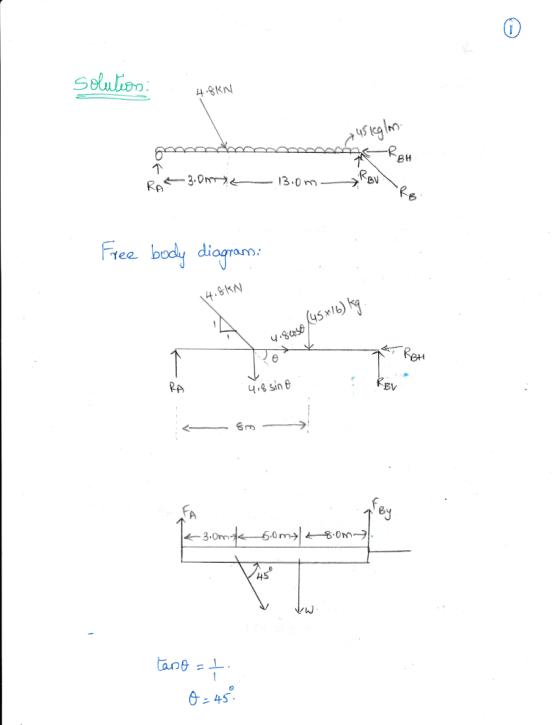

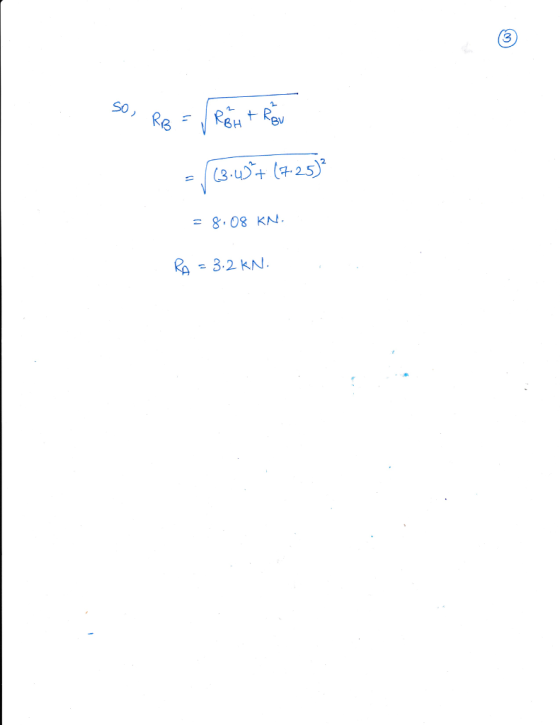

Homework Answers
