Question

I need help plotting Ohm's Law in graph format in Excel. Question: Using the following Data: Plot a graph and find: a) the slope of the line for each b) the percent error

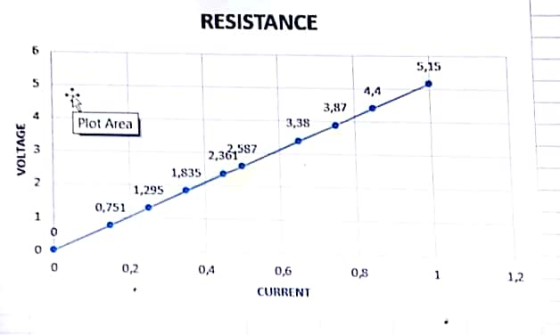

For the 5 Ohm Resistor

Current (I)	Volt (V)	Resistance ( R ) R = V/I
0	0	0
0.15	0.751	11.67
0.25	1.295	5.18
0.35	1.835	5.241
0.45	2.361	5.246
0.5	2.587	5.174
0.65	3.38	5.2
0.75	3.87	5.16
0.85	4.4	5.176
1	5.15	5.15

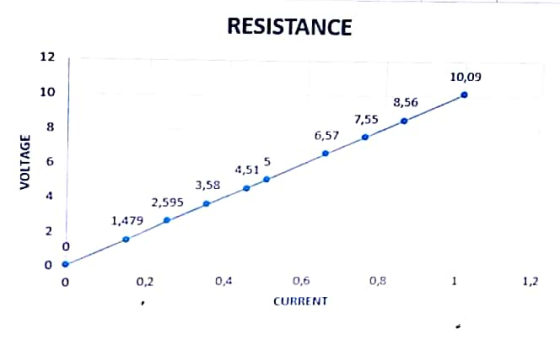

For the 10 Ohm Resistor Current (I) Volt (V) Resistance ( R ) R = V/I 0 0 0 0.15 1.479 9.86 0.25 2.595 10.38 0.35 3.58 10.23 0.45 4.51 10.02 0.5 5 10 0.65 6.57 10.1 0.75 7.55 10.06 0.85 8.56 10.07 1 10.09 10.09

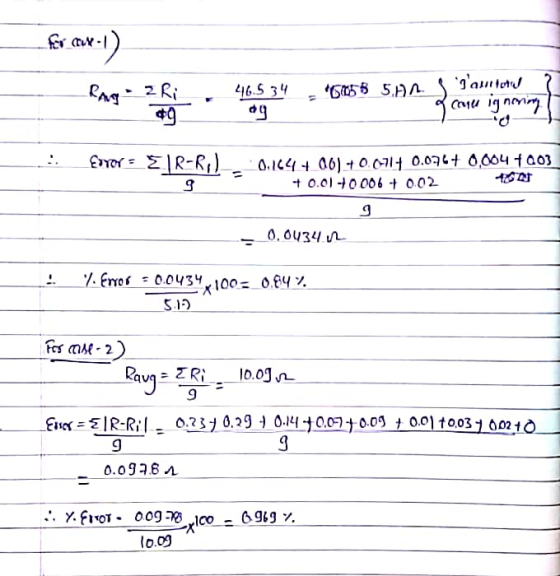

Answer 1
