Figure 1 Figure 1 For the tree in figure 1: • What is the output of...

Question

Question

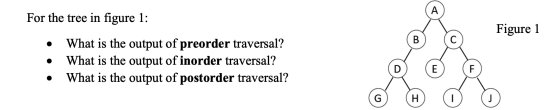

Figure 1 Figure 1 For the tree in figure 1: • What is the output of preorder traversal? What is the output of inorder travers

engineering Computer-Science

Answer 1

Answer #1

Preorder traversal is Root-Left-Right.
Algorithm for preorder is:

So, the Preorder traversal is A-B-D-G-H-C-E-F-I-J

Inorder traversal is Left-Root-Right.
Algorithm for inorder is:

So, the Inorder traversal is G-D-H-B-A-E-C-I-F-J

Postorder traversal is Left-Right-Root.
Algorithm for postorder is:

So, the Postorder traversal is G-H-D-B-E-I-J-F-C-A

Answer 2
