5 Find the Theven in equivalent circut to the left of the terminals a ne circuit...

Question

Question

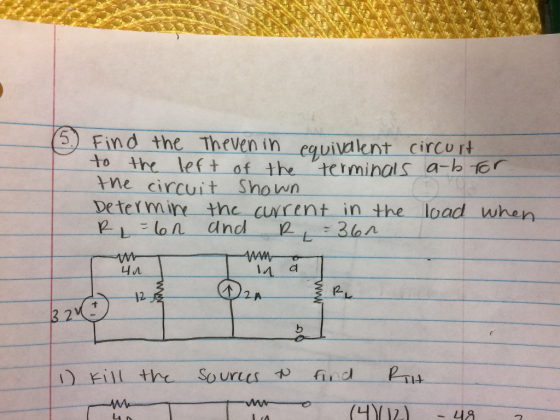

5 Find the Theven in equivalent circut to the left of the terminals a ne circuit Determire the crent in the load when -b 6 Shown IA 12- 2L 1

engineering Electrical-Engineering

Answer 1

Similar Homework Help Questions

Find the Norton equivalent circuit as seen from terminals a and b for the circuit shown...

Find the Norton equivalent circuit as seen from terminals a and b for the circuit shown in Figure 1. Norton resistance (Ra-b) Blank 1, kiloohms Norton current (Ia-b) Blank 2, mA Vo 20KQ 10kn a 12V 6Vo b Figure
6. UMF 3.78 3.78 Obtain the Thévenin equivalent of the circuit to the left of terminals...

6. UMF 3.78 3.78 Obtain the Thévenin equivalent of the circuit to the left of terminals (a, b) in Fig. P3.78. Use your result to compute the power dissipated in the 0.4 S2 load resistor. 322 Figure P3.78: Circuit for Problem 3.78.
Find the Thévenin equivalent circuit for the circuit shown below with respect to terminals a and...

Find the Thévenin equivalent circuit for the circuit shown below with respect to terminals a and b. Draw the equivalent circuit in your examination book. 12 kΩ 15 k2 36 V 1 60 kΩ Vab 18 mA

2. (a) Find and draw the Thevenin equivalent circuit seen by the terminals A & B.(I0...

2. (a) Find and draw the Thevenin equivalent circuit seen by the terminals A & B.(I0 points) (b) If a load is connected at terminals A &B what the load must be for maximum transfer to the load? (5 points). )29- 98ル 82 o B
3. Find the Norton's equivalent circuit at terminals a and b for the circuit shown below....

3. Find the Norton's equivalent circuit at terminals a and b for the circuit shown below. 822 3 42 2A +) 12 V
Find the Norton equivalent circuit as seen from terminals a and b for the circuit shown...

Find the Norton equivalent circuit as seen from terminals a and b for the circuit shown in Figure 1. Norton resistance (Ra-b) Blank 1, kiloohms Norton current (Ia-b) Blank 2, mA a 3kQ 10k 2 + 70V 250 0.01V. Y >5kQ Figure 3

3 (a) Obain Thevenin's equivalent circuit to the left of the terminals a - b. (b)...

3 (a) Obain Thevenin's equivalent circuit to the left of the terminals a - b. (b) I hun rind current through Ri(162) R2 R1 en 6 ว RL R3 0% 2 A 12 V 4Ω 1Ω
Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where...

Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where R = 12 Ω. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where R = 12 n. Please report your answer so the magnitude is positive and all angles are in the range...
Find the Thevenin equivalent circuit for the AC circuit in Figure 2 with respect to terminals a-b

Find the Thevenin equivalent circuit for the AC circuit in Figure 2 with respect to terminals a-b. What is the load impedance that can receive the maximum power from this circuit and what is the max imum power?

Use source transformation to find the Norton Equivalent circuit with respect to the terminals a,b for...

Use source transformation to find the Norton Equivalent circuit with respect to the terminals a,b for the circuit shown below. j6012 a 4/0° A 50 Ω -1002 30 12 w b
