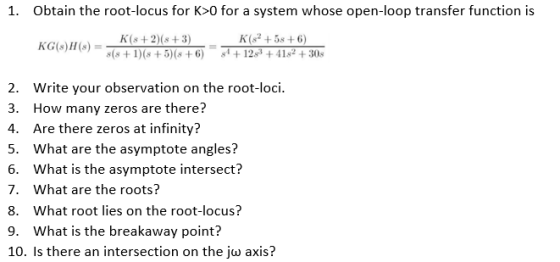

Obtain the root-locus for K>0 for a system whose open-loop transfer function
Homework Answers
Request Answer!
We need at least 10 more requests to produce the answer.
0 / 10 have requested this problem solution
The more requests, the faster the answer.
Add Answer to:
Obtain the root-locus for K>0 for a system whose open-loop transfer function
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root locus...
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root locus of the system with the gain K as a variable s(s+4) (s2+4s+20)' Determine asymptotes, centroid,, breakaway point, angle of departure, and the gain at which root locus crosses jw -axis.
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root locus of the system with the gain...
sketch the root locus of the system whose open loop transfer function is given by C(s)/...
sketch the root locus of the system whose open loop transfer function is given by C(s)/ R(s)=k/(s(s+4)(s2+s+1)+k)
sketch the root locus of the system whose open loop transfer function is given by C(s)/...
sketch the root locus of the system whose open loop transfer function is given by C(s)/ R(s)=k/(s(s+4)(s2+s+1)+k)
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root lo...
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root locus of the system with the gain Kas a variable. s(s+4) (s2+4s+20) Determine asymptotes, centroid, breakaway point, angle of departure, and the gain at which root locus crosses ja-axis. A control system with type-0 process and a PID controller is shown below. Design the [8 parameters of the PID controller so that the following specifications are satisfied. =100 a)...
Sketch the root locus plot of a unity feedback system with an open loop transfer function...
Sketch the root locus plot of a unity feedback system with an open loop transfer function G(s) = K / s (s+2) (s+4) Determine the value of K so that the dominant pair of complex poles of the system has a damping ratio of 0.5.
1) Plot the root locus of the system whose characteristic equation is 2) Plot the root locus of the closed loop system whose open-loop transfer function is given as 2s + 2 G(S)H(S)+7s3 +10s2 3)...
1) Plot the root locus of the system whose characteristic equation is 2) Plot the root locus of the closed loop system whose open-loop transfer function is given as 2s + 2 G(S)H(S)+7s3 +10s2 3) Plot root locus of the closed-loop system for which feedforward transfer function is s + 1 G(S) s( ) St(s - and feedback transfer function is H(S)2 +8s +32
1) Plot the root locus of the system whose characteristic equation is 2) Plot the root...
Sketch the root loci for a unity control system, whose open-loop transfer function is given by...
Sketch the root loci for a unity control system, whose open-loop
transfer function is given by
I WILL AWARD POINTS IMMEDIATELY TO THE FIRST PERSON WHO ANSWERS
THIS CORRECTLY AND THOROUGHLY.
Sketch the root loci for a unity control system, whose open-loop transfer function is given by G(s) = K/s(s^2 + 4s + 5)
1 Sketch the root locus for the unity feedback systems that have an open-loop transfer function...
1 Sketch the root locus for the unity feedback systems that have an open-loop transfer function of: 6. G(S) = k(s? +1) (s - 1)(8 + 2)(8+3)
Q1. Show analytically that the Root Locus for the unity feedback system with open loop transfer f...
Q1. Show analytically that the Root Locus for the unity feedback system with open loop transfer function: (a) [10 marks] K(s 4) (s + 2) is a circle, and find the centre and the radius. Determine the minimum value of the damping ratio and the corresponding value of K (b) The root locus of the open loop transfer function: [10 marks] s(s26s +15) is depicted in Figure Q1(b). Find the minimum value of gain K that will render the system...
4. Obtain the unit-step response of the unity feedback system whose open loop transfer function IS...
4. Obtain the unit-step response of the unity feedback system whose open loop transfer function IS 4 G(s)- s(s 5)
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root locus of the system with the gain K as a variable s(s+4) (s2+4s+20)' Determine asymptotes, centroid,, breakaway point, angle of departure, and the gain at which root locus crosses jw -axis.
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root locus of the system with the gain...
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root locus of the system with the gain Kas a variable. s(s+4) (s2+4s+20) Determine asymptotes, centroid, breakaway point, angle of departure, and the gain at which root locus crosses ja-axis. A control system with type-0 process and a PID controller is shown below. Design the [8 parameters of the PID controller so that the following specifications are satisfied. =100 a)...
1) Plot the root locus of the system whose characteristic equation is 2) Plot the root locus of the closed loop system whose open-loop transfer function is given as 2s + 2 G(S)H(S)+7s3 +10s2 3) Plot root locus of the closed-loop system for which feedforward transfer function is s + 1 G(S) s( ) St(s - and feedback transfer function is H(S)2 +8s +32
1) Plot the root locus of the system whose characteristic equation is 2) Plot the root...
Sketch the root loci for a unity control system, whose open-loop
transfer function is given by
I WILL AWARD POINTS IMMEDIATELY TO THE FIRST PERSON WHO ANSWERS
THIS CORRECTLY AND THOROUGHLY.
Sketch the root loci for a unity control system, whose open-loop transfer function is given by G(s) = K/s(s^2 + 4s + 5)
1 Sketch the root locus for the unity feedback systems that have an open-loop transfer function of: 6. G(S) = k(s? +1) (s - 1)(8 + 2)(8+3)
Q1. Show analytically that the Root Locus for the unity feedback system with open loop transfer function: (a) [10 marks] K(s 4) (s + 2) is a circle, and find the centre and the radius. Determine the minimum value of the damping ratio and the corresponding value of K (b) The root locus of the open loop transfer function: [10 marks] s(s26s +15) is depicted in Figure Q1(b). Find the minimum value of gain K that will render the system...
4. Obtain the unit-step response of the unity feedback system whose open loop transfer function IS 4 G(s)- s(s 5)
