Solve for the Maximum deflection.
Homework Answers
Add Answer to:
Solve for the Maximum deflection.

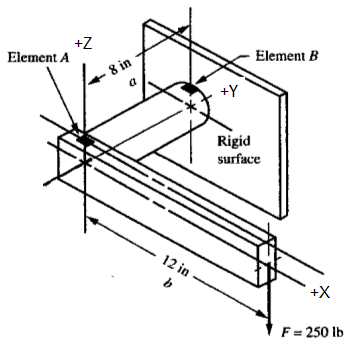

Element A Element B 8 in 7 Rigid surface 12 in...
