Question

system analysis and design lab

Constructing Data Flow Diagrams Boots Pharmacies are a series of pharmacies that are mainly opened in malls. During pandemic lockdown, there sales were reduced a lot as malls were closed, so they decided to create an online ordering system. The ordering process is described below: The customer will type in browser the pharmacy website link, then the website will load into the customer's browser. A two- way relationship between system and customer to: select medicine name, quantity, address /information and then select the preferred delivery time. The customer will then pay by credit card online, where the system will check with the Bank if the credit card information was correct and the required amount can be deducted from customer's account. If the bank replies by card validity, the system will show the customer that the purchase process is completed. If the payment by card was not validated by the bank, the system will ask the customer to call the pharmacy de to failure in payment online. And in both cases, the system will save the customer's information and address. When the payment is confirmed and the order online is completed, the employee in the pharmacy receives the customer order from the system. The employee will prepare the order, and update the inventory. Update the status of the order that it was out for delivery and puts an order for a driver to pick up the order. When the driver will deliver the medicine to the customer, the driver will request signature on a handheld device indicating that the order delivery is completed and the system will update the status of the order to be delivered. Based on the previous scenario, create the following: a) Create a Context diagram b) Create level zero DFD diagram

Answer 1

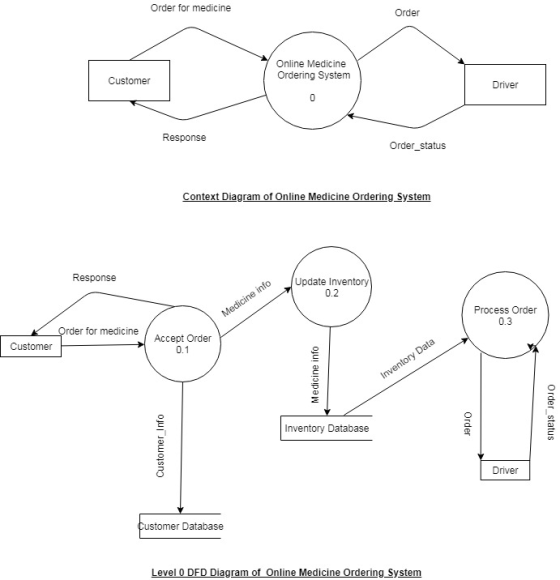

The context diagram and level 0 diagram are as:

Order for medicine Order Customer Online Medicine Ordering System 0 Driver Response Order_status Context Diagram of Online Medicine Ordering System Response Update Inventory 0.2 Medicine info Process Order 0.3 Order for medicine Customer Accept Order 0.1 Medicine info Inventory Data Inventory Database Order status Order Customer info Driver Customer Database Level 0 DFD Diagram of Online Medicine Ordering System

Control information should not be represented in DFD.
