A 1.00-cm-high object is placed 3.25 cm to the left of a converging lens of focal...

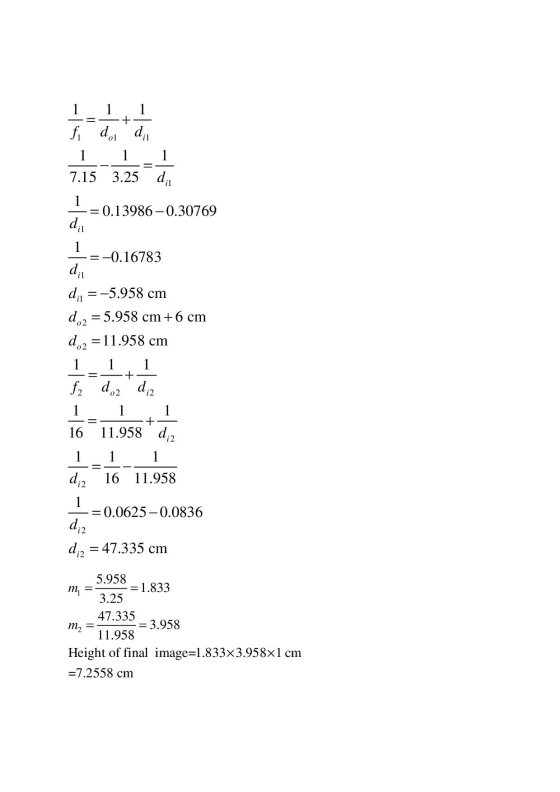

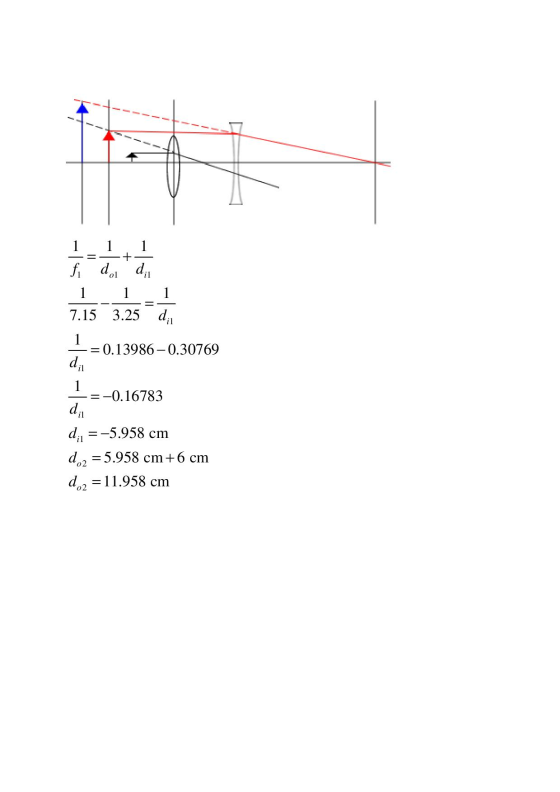

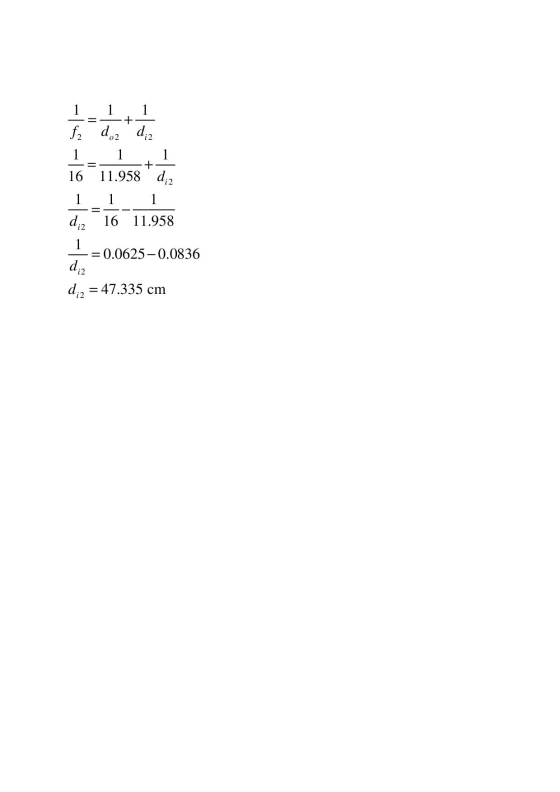

A 1.00-cm-high object is placed 3.25 cm to the left of a converging lens of focal length 7.15 cm. A diverging lens of focal length −16.00 cm is 6.00 cm to the right of the converging lens. Find the position and height of the final image.
Homework Answers
Add Answer to:
A 1.00-cm-high object is placed 3.25 cm to the left of a
converging lens of focal...
A 1.00-cm-high object is placed 4.85 cm to the left of a converging lens of focal...
A 1.00-cm-high object is placed 4.85 cm to the left of a converging lens of focal length 8.20 cm. A diverging lens of focal length - 16.00 cm is 6.00 cm to the right of the converging lens. Find the position and height of the final image. position cm height cm Is the image inverted or upright? O upright inverted Is the image real or virtual? Oreal virtual
11.87 A 1.00-cm-high object is placed 4.85 cm to the left of a converging lens of...
11.87 A 1.00-cm-high object is placed 4.85 cm to the left of a converging lens of focal length 8.20 cm. A diverging lens of focal length - 16.00 cm is 6.00 cm to the right of the converging lens. Find the position and height of the final image. position Take the image formed by the first lens to be the object for the second lens and apply the lens equation to each lens to locate the final image. cm 8.442...
An object is placed 19 cm to the left of a converging lens of focal length...
An object is placed 19 cm to the left of a converging lens of focal length 29 cm. A diverging lens of focal length 8 cm is 25 cm to the right of the converging lens. Find the position and magnification of the final image.
An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length o...
An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length of 30.5 cm. A diverging lens with a focal length of-20.0 cm is placed 110 cm to the right of the converging lens. (a) Determine the position of the final image. distance location to the right , of the diverging lens (b) Determine the magnification of the final image 128.4 Your response differs from the correct answer by more than...
An object 2.00 cm high is placed 45.3 cm to the left of a converging lens...
An object 2.00 cm high is placed 45.3 cm to the left of a converging lens having a focal length of 40.3 cm. A diverging lens having a focal length of −20.0 cm is placed 110 cm to the right of the converging lens. (Use the correct sign conventions for the following answers.) (a) Determine the final position and magnification of the final image. (Give the final position as the image distance from the second lens.) final position cm magnification...
An object is placed 32.0 cm to the left of a diverging lens with a focal...
An object is placed 32.0 cm to the left of a diverging lens with a focal length of -20.0 cm. A converging lens of focal length of 32.0 cm is placed a distance d to the right of the diverging lens. Find the distance d that the final image is at infinity. ______cm
An object is placed 45 cm to the left of a converging lens of focal length...
An object is placed 45 cm to the left of a converging lens of focal length 17 cm. A diverging lens of focal length −29 cm is located 11 cm to the right of the first lens. (Consider the lenses as thin lenses). a) Where is the final image with respect to the second lens?cm b) What is the linear magnification of the final image?
A converging lens of focal length 8.000 cm is 19.8 cm to the left of a...
A converging lens of focal length 8.000 cm is 19.8 cm to the left of a diverging lens of focal length -6.00 cm. A coin is placed 12.2 cm to the left of the converging lens. (a) Find the location of the coin's final image relative to the diverging lens. (Include the sign of each answer. Enter a negative value if the image is to the left of the diverging lens.) (b) Find the magnification of the coin's final image.
A converging lens of focal length 8.000 cm is 20.5 cm to the left of a...
A converging lens of focal length 8.000 cm is 20.5 cm to the left of a diverging lens of focal length -6.00 cm. A coin is placed 12.5 cm to the left of the converging lens. (a) Find the location of the coin's final image relative to the diverging lens. (Include the sign of each answer. Enter a negative value if the image is to the left of the diverging lens.) cm (b) Find the magnification of the coin's final...
A converging lens of focal length 9.000 cmcm is 20.0 cmcm to the left of a...
A converging lens of focal
length 9.000 cmcm is 20.0 cmcm to the left of a diverging lens of
focal length -6.00 cmcm. A coin is placed 19.0 cmcm to the right of
the diverging lens.
A converging lens of focal length 9.000 сm is 20.0 cm to the left of a diverging lens of focal length -6.00 cm. A coin is placed 19.0 cm to the right of the diverging lens. Part A Find the location of the coin's...
A 1.00-cm-high object is placed 4.85 cm to the left of a converging lens of focal length 8.20 cm. A diverging lens of focal length - 16.00 cm is 6.00 cm to the right of the converging lens. Find the position and height of the final image. position cm height cm Is the image inverted or upright? O upright inverted Is the image real or virtual? Oreal virtual
11.87 A 1.00-cm-high object is placed 4.85 cm to the left of a converging lens of focal length 8.20 cm. A diverging lens of focal length - 16.00 cm is 6.00 cm to the right of the converging lens. Find the position and height of the final image. position Take the image formed by the first lens to be the object for the second lens and apply the lens equation to each lens to locate the final image. cm 8.442...
An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length of 30.5 cm. A diverging lens with a focal length of-20.0 cm is placed 110 cm to the right of the converging lens. (a) Determine the position of the final image. distance location to the right , of the diverging lens (b) Determine the magnification of the final image 128.4 Your response differs from the correct answer by more than...
A converging lens of focal
length 9.000 cmcm is 20.0 cmcm to the left of a diverging lens of
focal length -6.00 cmcm. A coin is placed 19.0 cmcm to the right of
the diverging lens.
A converging lens of focal length 9.000 сm is 20.0 cm to the left of a diverging lens of focal length -6.00 cm. A coin is placed 19.0 cm to the right of the diverging lens. Part A Find the location of the coin's...
