Use the node-voltage method to find the steady-state expression
for vo(t) in the circuit in (Figure 1) if
vg1= 19 sin(400t+143.13∘)V,
vg2= 18.03cos(400t+33.69∘)V.
Write the steady-state expression for vo(t) as vo=Vocos(ωt+ϕ),
where −180∘<ϕ≤180∘.
Homework Answers

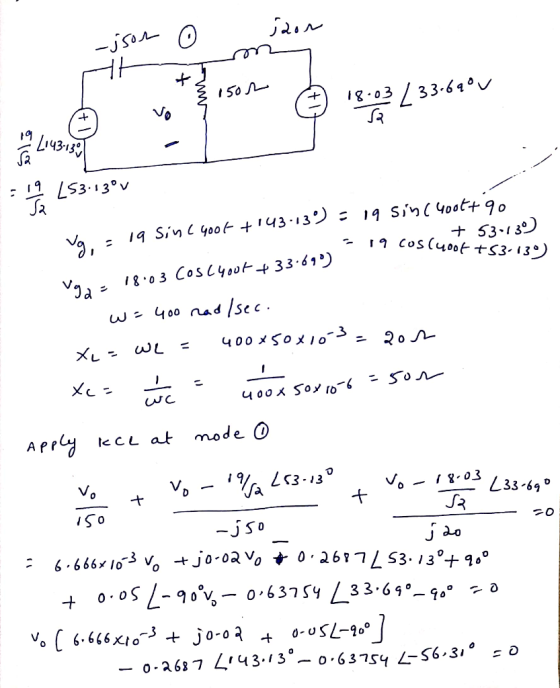

![- json 0 jaar +] 150 -AN som 18.03 33-610 - LS3.130v 19 Coscuook +53-139) Vg, = 19 Sin ( 4006 +143.13 - 19 Sin ( 400t+ 90 zic](http://img.homeworklib.com/questions/bc475ae0-be8c-11eb-9db5-d3eca60fd742.png?x-oss-process=image/resize,w_560)
Add Answer to:
Use the node-voltage method to find the steady-state expression
for vo(t) in the circuit in (Figure...
Use the node-voltage method to find the steady-state expression for vo(t) in the circuit in (Figure...
Use the node-voltage method to find the steady-state expression
for vo(t) in the circuit in (Figure 1) if
vg1= 10 sin(400t+143.13∘)V,
vg2= 18.03cos(400t+33.69∘)V.
Write the steady-state expression for vo(t) as vo=Vocos(ωt+ϕ),
where −180∘<ϕ≤180∘.
Find the numerical value of Vo.
Find the numerical value of ϕ.
Find the numerical value of ω.
