7.2.1 What bit positions (7 to 0) in R4 will be inverted when the following INV operation is executed?
inv.b R4

Question 1 options:

	0
	0, 1, 2, 3, and 4
	4, 5, 6, and 7
	0, 1, 2, 3, 4, 5, 6, and 7

7.2.2 - What bit positions (7 to 0) in R4 will be cleared when the following AND operation is executed?
and.b #01111110b, R4

Question 2 options:

	1, 2, 3, 4, 5, and 6
	7
	0
	0 and 7

7.2.3 - What bit positions (7 to 0) in R4 will be set when the following OR operation is executed?
or.b #01111110b, R4

Question 3 options:

	0
	7
	0 and 7
	1, 2, 3, 4, 5, and 6

Answer 1

Answer 2

Question 1 answer is 0,1,2,3,4,5,6 and 7

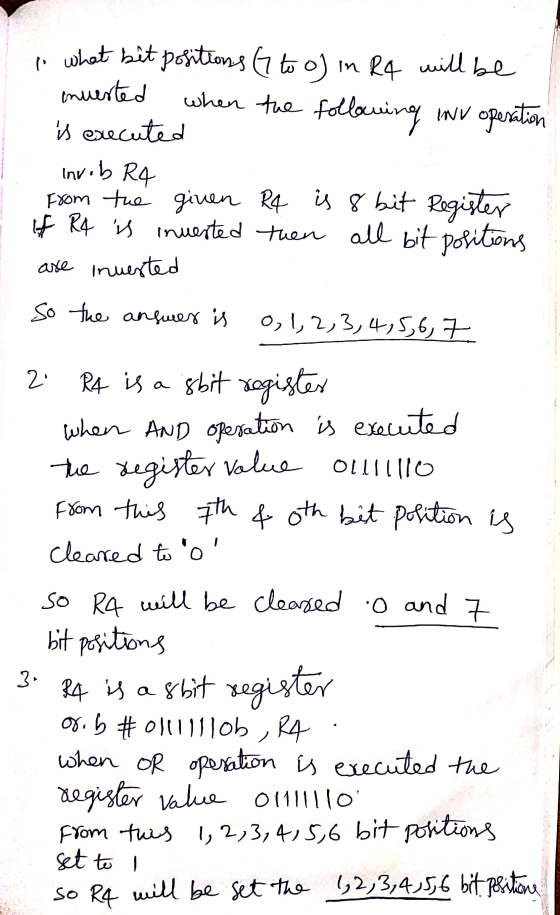

following I what bit positions to of in R4 will be inverted when the INV operation is executed Invob R4 From the given R4 is 8 bit Register & R4 is invested then all bit positions are inuested So the answer is 0,1,2,3,4,5,6,7 2 R4 is a sbit register When AND operation is executed the register value ouillio from this 7th & oth bit position is cleared to "o' so R4 will be cleared o and 7 bit positions 3. R4 is a a obit register orb #ollllllob , R4 when or operation is executed the register value 01111110' From this 1, 2, 3, 4, 5,6 bit positions set to I so R4 will be set the 1,2,3,4,5,6 bit peritone

Question 2 answer is 0 and 7

Question 3 answer is 1,2,3,4,5 and 6
