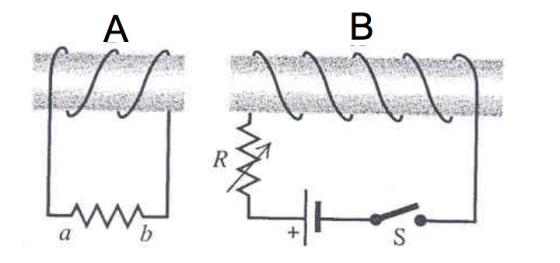

In the following figure, determine the direction of the current in resistor ab:
A) As switch S is closed. B) As coil B is moved away from coil A with the switch closed; C) As the resistance of R is increased while the switch remains closed
A circular loop of wire with radius R, is in a region of spatially uniform magnet field as shown below. The magnetic field is directed into the plane of the figure.
Calculate the direction of the induced current in the loop when:
A) B is increasing; B) B is decreasing; C) B is constant with value B0
Homework Answers
1) A ) b to a
B) a to b
C) a to b
2)
A) counter clock wise
B) clockwise
C) no current
Add Answer to:
In the following figure, determine the direction of the current
in resistor ab:
A) As switch...
A circular loop of wire with radius r= 0.0480m and reistance R = 0.160 Ω is in a region of spatially uniform magnetic field
A circular loop of wire with radius r= 0.0480m and reistance R = 0.160 Ω is in a region of spatially uniform magnetic field, as shown in the figure. The magnetic field is directed out of the plane of the figure. The magnetic field has an initial value of 8.00 T and is decreasing dB/ dt = -0.680 T a) Is the induced current in the loop clockwise or counterclockwise? b) What is the rate at which electrical energy is being dissipated...
Circular loop of wire
A circular loop of wire is in a region of spatially uniformmagnetic field. The magnetic field is directed into the plane ofthe figure.Determine the direction of the induced current in the loop when isincreasing.Determine the direction of the induced current in the loop when isdecreasing.Determine the direction of the induced current in the loop when isconstant with value .
Parts A-E refer to the following figure of a circular loop of conducting wire
1) Parts A-E refer to the following figure of a circular loop of conducting wire. In the figure, Region I has a uniform magnetic field in the direction shown and Region II has no magnetic field. a) If the loop moves to the right and starts to move into Region II, what is the direction of the induced current in the wire? Circle the correct response. a) Clockwise. b) Counterclockwise. c) There is no induced current. b) If the loop moves straight down and remains...
The figure shows a region of uniform magnetic field directed into the page, surrounded by regions...
The figure shows a region of uniform magnetic field directed
into the page, surrounded by regions where the magnetic field is
zero. A square coil of wire is moving to the right across the
figure in snapshots.
When the coil is moving out of the
region of non-zero magnetic field.
a) On the figure, draw the direction of the induced current in
the wire loop. If there is no induced current, explicitly state
that.
b) Draw the direction of the...
5. A circular loop in the plane of the page lies in a 0.5T magnetic field...
5. A circular loop in the plane of the page lies in a 0.5T magnetic field that is oriented into the page. The diameter of the loop changes from 20 cm to 8 cm in 0.5 s. Calculate: A. The direction of the induced current. (5 pts) B. The magnitude of the average induced emf. (5 pts) C. The average induced current if the coil resistance is 2.5 Q. (5 pts) 6. Calculate the direction of the current induced in...
Indicate the direction of the induced current in each of the situations show bellow, or "none"...
Indicate the direction of the induced current in each of the
situations show bellow, or "none" if there isn't any. You may wish
to make note of your thought process by which you arrive at your
answer in the event that your answer is incorrect such that you
might still receive some partial credit. It may also help to
clarify your answer if you copy each diagram or print the whole
page and draw the direction of the induced current...
answer all Q pls 8. A bar magnet is dropped through a loop of copper wire as shown. Recall that ou magnet, magnetic field lines point away from a north pole and toward a south p positive direct...
answer all Q pls
8. A bar magnet is dropped through a loop of copper wire as shown. Recall that ou magnet, magnetic field lines point away from a north pole and toward a south p positive direction of the induced current I in the loop is as shown by the arrows on the loop, the variation of I with time as the bar magnet falls through th by which of the following graphs (the time when the midpoint of...
For direction questions the choices are: into page, out of page, clockwise, counterclockwise, or no induced...
For direction questions the choices are:
into page, out of page, clockwise, counterclockwise, or no induced
field. Letters (m), (n), (q) and (r) have choices: up, down, left,
right, into page, out of page, or no induced field. The change in
flux is either increasing, decreasing, or constant. Thank you for
your help!
Considering the three situations below, fill in the tables. 1: This hexagonal loop of wire is in a uniform magnetic field; at t = 0 s, the...
A circular loop of wire with radius 0.0270 m and resistance 0.320 Ω
A circular loop of wire with radius 0.0270 m and resistance 0.320 Ω is in a region of spatially uniform magnetic field, as shown in the following figure(Figure 1). The magnetic field is directed into the plane of the figure. At t = 0, B = 0. The magnetic field then begins increasing, with B(t) =( 0.400 T/s3)t3 .Part A What is the current in the loop (magnitude) at the instant when B = 1.38 T? Part B What is the direction of the...
3. In Figure 2, what is the direction of the current induced in the resistor at...
3. In Figure 2, what is the direction of the current induced in the resistor at the instant the switch is closed? ㄐㄧ - Figure 2 4. If a grandfather clock were running slow, how could we adjust the length of the pendulum to correct the time? 4. A 2.00 C charged 1.00 g cork ball is suspended vertically on a 0.500 m long light string in the presence of a uniform downward-directed electric field of magnitude E-1.00x10 N/C. If...
The figure shows a region of uniform magnetic field directed
into the page, surrounded by regions where the magnetic field is
zero. A square coil of wire is moving to the right across the
figure in snapshots.
When the coil is moving out of the
region of non-zero magnetic field.
a) On the figure, draw the direction of the induced current in
the wire loop. If there is no induced current, explicitly state
that.
b) Draw the direction of the...
5. A circular loop in the plane of the page lies in a 0.5T magnetic field that is oriented into the page. The diameter of the loop changes from 20 cm to 8 cm in 0.5 s. Calculate: A. The direction of the induced current. (5 pts) B. The magnitude of the average induced emf. (5 pts) C. The average induced current if the coil resistance is 2.5 Q. (5 pts) 6. Calculate the direction of the current induced in...
Indicate the direction of the induced current in each of the
situations show bellow, or "none" if there isn't any. You may wish
to make note of your thought process by which you arrive at your
answer in the event that your answer is incorrect such that you
might still receive some partial credit. It may also help to
clarify your answer if you copy each diagram or print the whole
page and draw the direction of the induced current...
answer all Q pls
8. A bar magnet is dropped through a loop of copper wire as shown. Recall that ou magnet, magnetic field lines point away from a north pole and toward a south p positive direction of the induced current I in the loop is as shown by the arrows on the loop, the variation of I with time as the bar magnet falls through th by which of the following graphs (the time when the midpoint of...
For direction questions the choices are:
into page, out of page, clockwise, counterclockwise, or no induced
field. Letters (m), (n), (q) and (r) have choices: up, down, left,
right, into page, out of page, or no induced field. The change in
flux is either increasing, decreasing, or constant. Thank you for
your help!
Considering the three situations below, fill in the tables. 1: This hexagonal loop of wire is in a uniform magnetic field; at t = 0 s, the...
3. In Figure 2, what is the direction of the current induced in the resistor at the instant the switch is closed? ㄐㄧ - Figure 2 4. If a grandfather clock were running slow, how could we adjust the length of the pendulum to correct the time? 4. A 2.00 C charged 1.00 g cork ball is suspended vertically on a 0.500 m long light string in the presence of a uniform downward-directed electric field of magnitude E-1.00x10 N/C. If...
