Water (ρ =1000 kg/m3 and ν =10-6 m2/s) flows through a conduit with a velocity of...

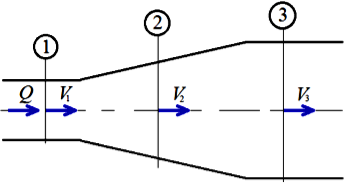

Water (ρ =1000 kg/m3 and ν =10-6 m2/s) flows through a conduit with a velocity of 4.72 m/s at section 2 shown in figure. If the diameters D1, D2 and D3, are 50 mm, 60 mm and 100 mm respectively, the Reynolds number at section 3 is:
The Reynolds number =___________________
Homework Answers
Add Answer to:

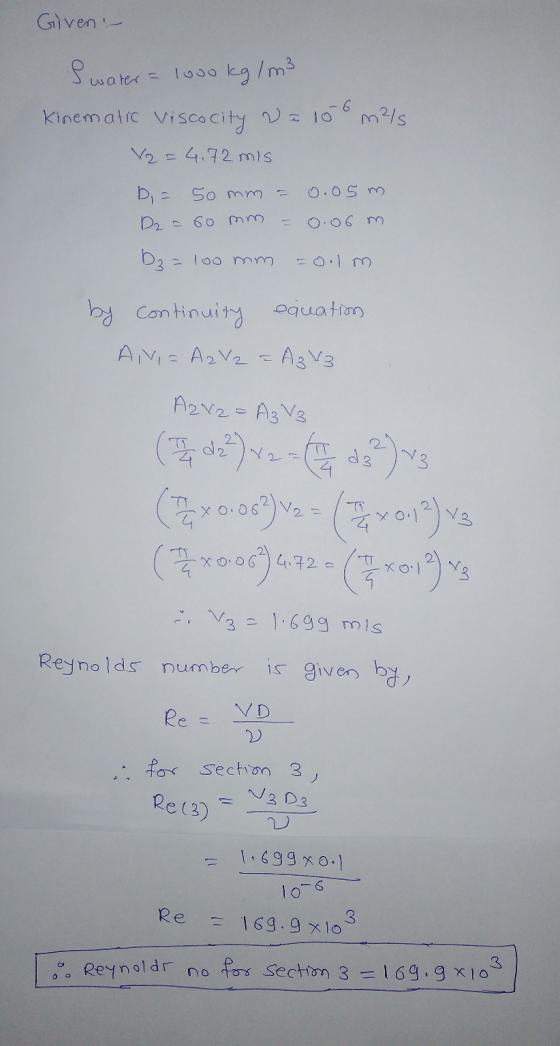

Water (ρ =1000 kg/m3 and ν =10-6
m2/s) flows through a conduit with a velocity of...
A liquid (⍴ = 1000 kg/m3 ; µ = 10-1 N·s/m2 ; ν = 10-4 m2...
A liquid (⍴ = 1000 kg/m3 ; µ = 10-1 N·s/m2 ; ν = 10-4 m2 /s) flows uniformly with a mean velocity of 0.9 m/s in a pipe with a diameter of 175 mm. Answer the following: a. Is the flow laminar, turbulent or in between? b. What is the friction factor, f ? c. What is the head loss per meter of pipe length?
Question 1: (20 marks) On a circular conduit there are different diameters: diameter Di 1 m chang...
Question 1: (20 marks) On a circular conduit there are different diameters: diameter Di 1 m changes into D2 2 m. The velocity in the entrance profile was measured: v 3 m/s. Calculate the discharge mean velocity at the outlet profle (sce fig. 1). Also, determine the type of flow in both conduit profiles (whether the flow is laminar or turbulent) assume temperature of water following data. T-12° C. Use the Pw 997 kg/m3 Repeat the previous calculations assuming that...
Question 2 -Laminar Flow A liquid (ρ = 1000 kg/m3; μ = 10-1 N . s/2...
Question 2 -Laminar Flow A liquid (ρ = 1000 kg/m3; μ = 10-1 N . s/2 m: v-104 m2/s) flows uniformly with a mean velocity of 1.5 m/s in a pipe with a diameter of 100 mm. Show that the flow is laminar. Also, find the friction factor fand the head loss per meter of pipe length.
#2 Turbulent Flow in Pipes Water (p-1000 kg/m3, щ-0.001 N. s/m2) flows through a 0.1 m pipe at 0....
#2 Turbulent Flow in Pipes Water (p-1000 kg/m3, щ-0.001 N. s/m2) flows through a 0.1 m pipe at 0.1 m/s. . Verify that the flow is turbulent by showing Re >4000 The profile of the mean velocity is given by 4 4 and v 0 in units of m/s. (Here u refers to the axial flow velocity and v refers to the radial velocity.) We are also given 0.0004, v0.0001, and vv 0.0004 in units of m'/s2. Compute the turbulent...
Water (ρ-1000 kg/m3) flows in a rectangular channel over the 1 m drop. If the width...
Water (ρ-1000 kg/m3) flows in a rectangular channel over the 1 m drop. If the width of the channel is 1.5 m, determine the volumetric flow rate in the channel. Assume water is an ideal fluid. 0.5 m 1 m 2 m Figure 3
ater (density 1000 kg/m3, viscosity 0.001 N-s/m2) flows from a large reservoir through straight pipe into the atmosphere at a flowrate of 2.5 m3/s. The reservoir is pressurized to 200 kPa (gage)....
ater (density 1000 kg/m3, viscosity 0.001 N-s/m2) flows from a large reservoir through straight pipe into the atmosphere at a flowrate of 2.5 m3/s. The reservoir is pressurized to 200 kPa (gage). The pipe has a diameter of 0.5 m and absolute roughness of 0.1 mm. The pipe also contains a turbine that has an efficiency of 0.6. si A) Is the flow in the pipe laminar or turbulent? (3 pts) B) What is the power transmitted from the turbine...
Water (density = 1000 kg/m3, viscosity = 1.15 x 10-3 N-s/m2) is delivered from a large reservoir ...
Water (density = 1000 kg/m3, viscosity = 1.15 x 10-3 N-s/m2) is delivered from a large reservoir upstream (Section"1") through two mortar lined steel circular pipes arranged in series to another large reservoir downstream (Section "2") as shown in Figure E4.7 The upstream pipe is 80 m long and 0.15 m in diameter, whereas the downstream pipe is 50 m long and 0.1 m in diameter. Both pipes have sharp-edged entrance and exit. Consider both major and minor losses. Determine...
FIGURE 1 shows a branching pipe system through which is flowing water of density 1000 kg...
FIGURE 1 shows a branching pipe system through which is flowing water of density 1000 kg m-3 and viscosity 1.0 x 103 Pa s. 2. AVI Diameter at A 600 mnm Diameter at B500 mm Diameter at C 300 mm FIG. 1 If the volumetric flowrate at point A is 586 m3 h1 and the flow velocity at point C is 0.61 m s-1 determine: the mass flowrate at pointB a. b. the Reynolds number of the flow at point...
Water, with density of 1000 kg/m3 and kinematic viscosity of 1.0 x 10- m2/s, is pumped through a ...
Water, with density of 1000 kg/m3 and kinematic viscosity of 1.0 x 10- m2/s, is pumped through a total length of 60 m of pipe from a lower reservoir to a higher reservoir. The inner diameter of the pipe is 30 cm. Both reservoirs are open to the atmosphere, and the water surface of the higher reservoir is 10 m above that of the lower reservoir. The entrance from the lower reservoir to the pipe is sharp-edged, and along the...
8. Water at 15°C flows out of the elbow at 0.0153 m3/s. The water is discharged...
8. Water at 15°C flows out of the elbow at 0.0153 m3/s. The water is discharged to the atmosphere at section 2. The pipe diameter is D1 = 100 mm and D2 = 30 mm. The pressure pi = 2.3 atm (gage). Neglect the weight of the elbow and the water within it. Neglect elevation change between 1 and 2. Determine the force on the flange bolts at section 1. (40 points)
Question 1: (20 marks) On a circular conduit there are different diameters: diameter Di 1 m changes into D2 2 m. The velocity in the entrance profile was measured: v 3 m/s. Calculate the discharge mean velocity at the outlet profle (sce fig. 1). Also, determine the type of flow in both conduit profiles (whether the flow is laminar or turbulent) assume temperature of water following data. T-12° C. Use the Pw 997 kg/m3 Repeat the previous calculations assuming that...
Question 2 -Laminar Flow A liquid (ρ = 1000 kg/m3; μ = 10-1 N . s/2 m: v-104 m2/s) flows uniformly with a mean velocity of 1.5 m/s in a pipe with a diameter of 100 mm. Show that the flow is laminar. Also, find the friction factor fand the head loss per meter of pipe length.
#2 Turbulent Flow in Pipes Water (p-1000 kg/m3, щ-0.001 N. s/m2) flows through a 0.1 m pipe at 0.1 m/s. . Verify that the flow is turbulent by showing Re >4000 The profile of the mean velocity is given by 4 4 and v 0 in units of m/s. (Here u refers to the axial flow velocity and v refers to the radial velocity.) We are also given 0.0004, v0.0001, and vv 0.0004 in units of m'/s2. Compute the turbulent...
Water (ρ-1000 kg/m3) flows in a rectangular channel over the 1 m drop. If the width of the channel is 1.5 m, determine the volumetric flow rate in the channel. Assume water is an ideal fluid. 0.5 m 1 m 2 m Figure 3
ater (density 1000 kg/m3, viscosity 0.001 N-s/m2) flows from a large reservoir through straight pipe into the atmosphere at a flowrate of 2.5 m3/s. The reservoir is pressurized to 200 kPa (gage). The pipe has a diameter of 0.5 m and absolute roughness of 0.1 mm. The pipe also contains a turbine that has an efficiency of 0.6. si A) Is the flow in the pipe laminar or turbulent? (3 pts) B) What is the power transmitted from the turbine...
Water (density = 1000 kg/m3, viscosity = 1.15 x 10-3 N-s/m2) is delivered from a large reservoir upstream (Section"1") through two mortar lined steel circular pipes arranged in series to another large reservoir downstream (Section "2") as shown in Figure E4.7 The upstream pipe is 80 m long and 0.15 m in diameter, whereas the downstream pipe is 50 m long and 0.1 m in diameter. Both pipes have sharp-edged entrance and exit. Consider both major and minor losses. Determine...
FIGURE 1 shows a branching pipe system through which is flowing water of density 1000 kg m-3 and viscosity 1.0 x 103 Pa s. 2. AVI Diameter at A 600 mnm Diameter at B500 mm Diameter at C 300 mm FIG. 1 If the volumetric flowrate at point A is 586 m3 h1 and the flow velocity at point C is 0.61 m s-1 determine: the mass flowrate at pointB a. b. the Reynolds number of the flow at point...
Water, with density of 1000 kg/m3 and kinematic viscosity of 1.0 x 10- m2/s, is pumped through a total length of 60 m of pipe from a lower reservoir to a higher reservoir. The inner diameter of the pipe is 30 cm. Both reservoirs are open to the atmosphere, and the water surface of the higher reservoir is 10 m above that of the lower reservoir. The entrance from the lower reservoir to the pipe is sharp-edged, and along the...
8. Water at 15°C flows out of the elbow at 0.0153 m3/s. The water is discharged to the atmosphere at section 2. The pipe diameter is D1 = 100 mm and D2 = 30 mm. The pressure pi = 2.3 atm (gage). Neglect the weight of the elbow and the water within it. Neglect elevation change between 1 and 2. Determine the force on the flange bolts at section 1. (40 points)
