A 10-turn coil of wire having a diameter of 1.0 cm and a resistance of 0.90...
A 10-turn coil of wire having a diameter of 1.0 cm and a resistance of 0.90 Ω is in a 1.0 mT magnetic field, with the coil oriented for maximum flux. The coil is connected to an uncharged 2.0 μF capacitor rather than to a current meter. The coil is quickly pulled out of the magnetic field.
Afterward, what is the voltage across the capacitor?
Hint: Use I
=dq/dt to relate the
net change of flux to the amount of charge that flows to
the capacitor.

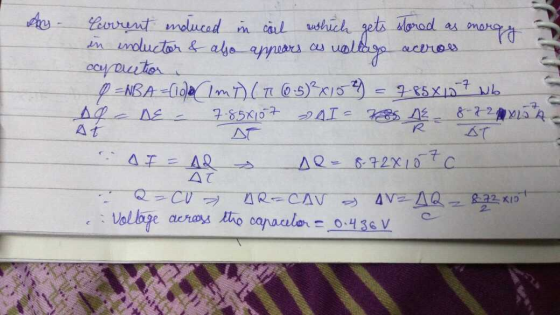

Homework Answers
