Homework Answers
Add Answer to:

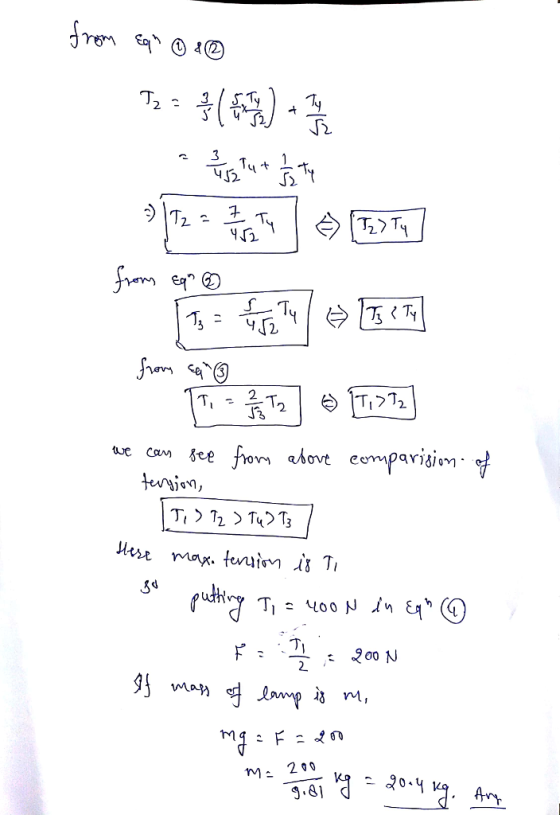

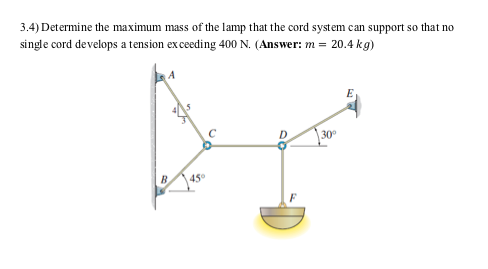

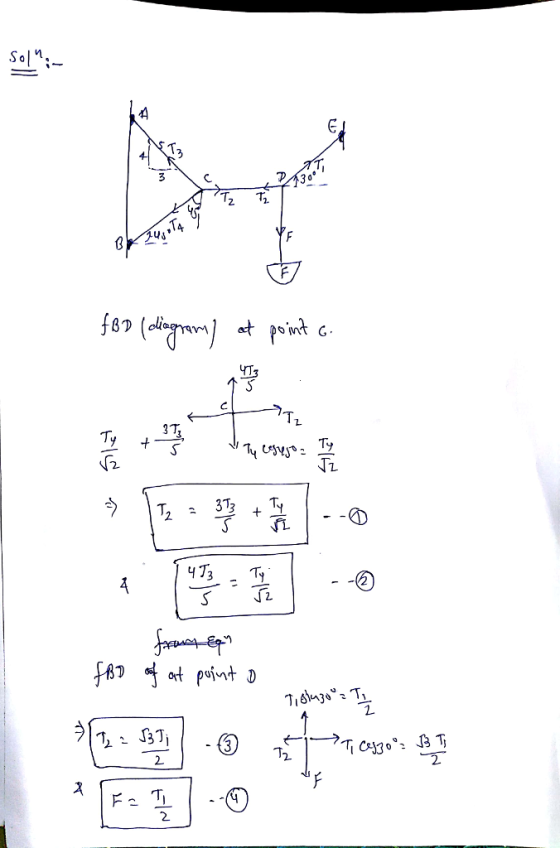

3.4) Determine the maximum mass of the lamp that the cord system can support so that...
1. Determine the tension developed in each cord required for equilibrium of the 30-kg lamp. 1309...
1. Determine the tension developed in each cord required for equilibrium of the 30-kg lamp. 1309 Lamp
A sphere of mass 3.4 × 10-4 kg is suspended from a cord. A steady horizontal...
A sphere of mass 3.4 × 10-4 kg is suspended from a cord. A steady horizontal breeze pushes the sphere so that the cord makes a constant angle of 31° with the vertical. Find (a) the magnitude of that push and (b) the tension in the cord.
A cord of mass 0.75 kg is stretched between two supports 30 m apartIf the tension...
A cord of mass 0.75 kg is stretched between two supports 30 m apartIf the tension in the cord is 130 N , how long will it take a pulse to travel from one support to the other?
A puck of mass 0.6 kg is attached to the end of a cord 1.2 m...
A puck of mass 0.6 kg is attached to the end of a cord 1.2 m long. The puck moves in a horizontal circle as shown in the figure. If the cord can withstand a maximum tension of 250 N, what is the maximum speed at which the puck can move before the cord breaks mis 10 mis 5 m/s 20 mis 12 KN 25
Two identical strings making an angle of e 30.0° with respect to the vertical support a...
Two identical strings making an angle of e 30.0° with respect to the vertical support a block of mass m-15.0 kg. What is the tension in each of the strings? 1 A 75-kg man standing on a scale in an clevator notes that as the elevator rises, the scale reads 825 N What is the acceleration of the elevator? 2. 3. A 150-N bird feeder is supported by three cables as shown in the figure. Find tension in each cable...
2. A cord of mass 0.55 kg is stretched between two supports 7.7 m apart. if the tension in the cord is 140 N, and t...
2. A cord of mass 0.55 kg is stretched between two supports 7.7 m apart. if the tension in the cord is 140 N, and the cord is plucked a. what is the speed of the resulting pulse on the cord? b. how long will it take a pulse to travel from one support to the other?
A cord of mass 0.65 kg is stretched between two supports 28 m apart. If the...
A cord of mass 0.65 kg is stretched between two supports 28 m apart. If the tension in the cord is 150 N, how long will it take a pulse to travel from one support to the other?
A block of mass 1.80 kg is accelerated across a rough surface by a light cord...
A block of mass 1.80 kg is accelerated across a rough surface by
a light cord passing over a small pulley as shown in the figure
below. The tension T in the cord is maintained at 10.0 N, and the
pulley is 0.110 m above the top of the block. The coefficient of
kinetic friction is 0.310.
(a) Determine the acceleration of the block when x = .400 m.
(b) Describe the general behavior of the acceleration as the
block...
014 10.0 points A phone cord is 2.4 m long. The cord has a mass of...
014 10.0 points A phone cord is 2.4 m long. The cord has a mass of 0.243 kg. A transverse wave pulse is produced by plucking one end of the taut cord. The pulse makes four trips down and back along the cord in 0.754 s. What is the tension in the cord? Answer in units of N.
A.) Determine the tension in the cord before the string is burned B.) Show that the cord, strong ...
A.) Determine the tension in
the cord before the string is burned
B.) Show that the cord, strong enough to support the object
before the string is burned, is also strong enough to support the
object as it passes through the bottom of the swing
C.) The motion of the pendulum after the string is burned is
periodic. Is it also simple harmonic? why or why not?
Cord p 60° String A pendulum consists of a small object of mass...
1. Determine the tension developed in each cord required for equilibrium of the 30-kg lamp. 1309 Lamp
A puck of mass 0.6 kg is attached to the end of a cord 1.2 m long. The puck moves in a horizontal circle as shown in the figure. If the cord can withstand a maximum tension of 250 N, what is the maximum speed at which the puck can move before the cord breaks mis 10 mis 5 m/s 20 mis 12 KN 25
Two identical strings making an angle of e 30.0° with respect to the vertical support a block of mass m-15.0 kg. What is the tension in each of the strings? 1 A 75-kg man standing on a scale in an clevator notes that as the elevator rises, the scale reads 825 N What is the acceleration of the elevator? 2. 3. A 150-N bird feeder is supported by three cables as shown in the figure. Find tension in each cable...
2. A cord of mass 0.55 kg is stretched between two supports 7.7 m apart. if the tension in the cord is 140 N, and the cord is plucked a. what is the speed of the resulting pulse on the cord? b. how long will it take a pulse to travel from one support to the other?
A block of mass 1.80 kg is accelerated across a rough surface by
a light cord passing over a small pulley as shown in the figure
below. The tension T in the cord is maintained at 10.0 N, and the
pulley is 0.110 m above the top of the block. The coefficient of
kinetic friction is 0.310.
(a) Determine the acceleration of the block when x = .400 m.
(b) Describe the general behavior of the acceleration as the
block...
014 10.0 points A phone cord is 2.4 m long. The cord has a mass of 0.243 kg. A transverse wave pulse is produced by plucking one end of the taut cord. The pulse makes four trips down and back along the cord in 0.754 s. What is the tension in the cord? Answer in units of N.
A.) Determine the tension in
the cord before the string is burned
B.) Show that the cord, strong enough to support the object
before the string is burned, is also strong enough to support the
object as it passes through the bottom of the swing
C.) The motion of the pendulum after the string is burned is
periodic. Is it also simple harmonic? why or why not?
Cord p 60° String A pendulum consists of a small object of mass...
