Hello! I really need help on this. All work shown would be awesome so I can...
Hello! I really need help on this. All work shown would be
awesome so I can understand the concepts and please write legibly!
Thank you:)

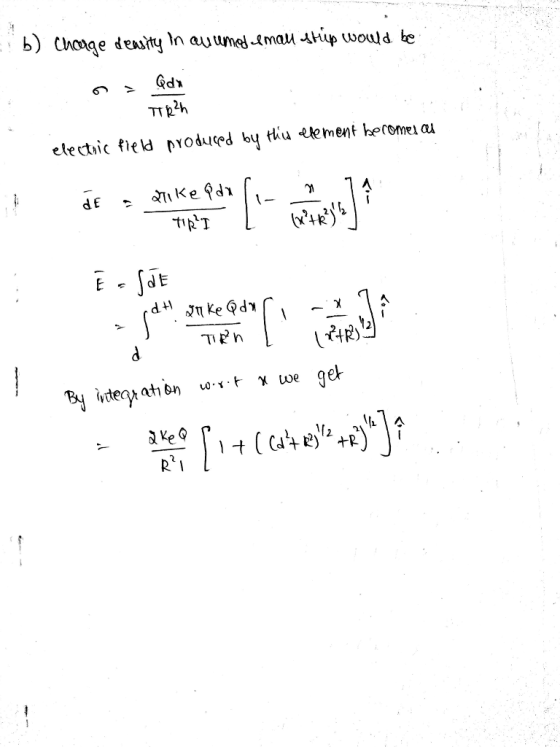

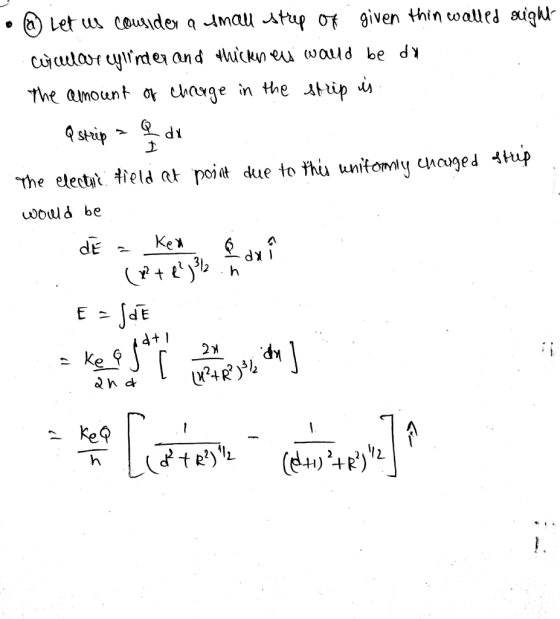

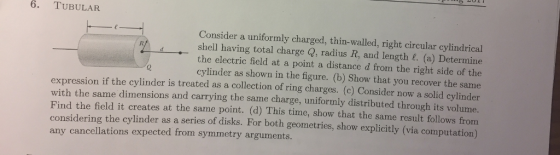

(a) Consider a uniformly charged thin-walled right circular cylindrical shell having total charge Q, radius R, and length . Determine the electric field at a point a distance d from the right side of the cylinder as shown in the figure below. Suggestion: Use the following expression and treat the cylinder as a collection of...
