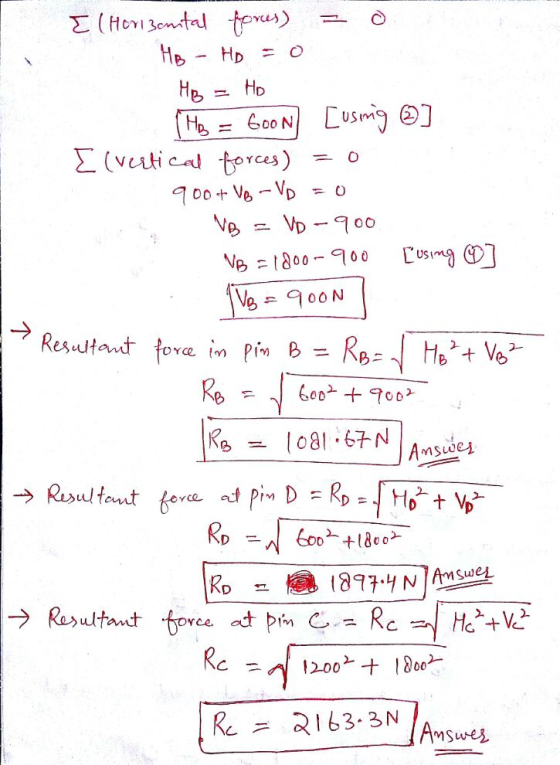

There is a roller at E and a pin at A. What is the magnitude of the resultant force in the pin at B?
There is a roller at E and a pin at A. What is the magnitude of the resultant force in the pin at C?
There is a roller at E and a pin at A. What is the magnitude of the resultant force in the pin at D?
Homework Answers
The structure below is supported by a pin at A and a roller at E Determine the force in each memb...
The structure below is supported by a pin at A and a roller at E Determine the force in each member of the truss using the Method of Joints H meters 2 FE m AH m GF m HG m Joint Loadings, kN ent length, m Height, m HG GF FE 1.5 2 Draw FBD of truss system to determine reaction forces Assume all forces in members are tensile. If answer is negative, force is compressive. s in x direction...
60 E pin O roller 9. [1pt] Two forces are applied to the truss as shown,...
60 E pin O roller 9. [1pt] Two forces are applied to the truss as shown, Fi = 128 N and F2 = 164 N. The truss is supported by a pin joint at A and a roller at E. Assume L = 1.30 m. Indicate whether the member AD is in compression (C) or in tension (T). You only have I try! Answer: Submit All Answers 10. [1pt] Calculate the value of the force in member CD. Enter a...
In the following loaded truss, which is supported by pin at A and roller at B,...
In the following loaded truss, which is supported by pin at A and roller at B, as shown a. Find Zero force Members by inspection (Negative marks for wrong answer) b. Find Support Reactions at A and B c. Find forces in Members CD and CE by Method of Section d. Find forces in Members EF and CH by Method of Joint (3 Points) (6 Points) (8 Points) (8 Points) 8U)N 800 N 800N D600 N 60 11.547 m 30°...
Support at C is Pin, Support at A is Roller 40 N 3 What is the...
Support at C is Pin, Support at A is Roller 40 N 3 What is the vertical reaction at C (N) ZMc0 (teo -Ar() Cx Y.00- Cy- G00-Y00 G-200N +G00 0 A What is the force in member AB (N) Fre-(Xcoo) 600-FA ()-0 Sunnort at A is Pin. Support at B is Roller
Determine the magnitude of the force at the pin at D. 600 N 0.2 m 0.2...
Determine the magnitude of the force at the pin at D. 600 N 0.2 m 0.2 m ID 0.2 m 0.2 m-0.2 m
A is a roller and C is pin connected 3-9. Determine the force in each member...
A is a roller and C is pin connected
3-9. Determine the force in each member of the truss. State if the members are in tension or compression. E 12 kN 8 kN 3 m 45° 24 kN 4 m Prob. 3-9
a) the reactions on the pin (pin) A and roller (roller) B. b) Internal loads (axial,...
a) the reactions on the pin (pin) A and roller (roller)
B.
b) Internal loads (axial, shear, and flexor moment) at point
E.
2KN/m C PA BE D |-1.5 m+-1.5 m-t1.5 m1.5m 5 KN
2KN/m C PA BE D |-1.5 m+-1.5 m-t1.5 m1.5m 5 KN
Q1. Two rigid members (BCDE and EKN) are connected by a pin at E. The structure is supported by a...
Q1. Two rigid members (BCDE and EKN) are connected by a pin at E. The structure is supported by a pin at B and two rollers at D and N. An inclined distributed load is acting between E and K with the horizontal (12 kN/m) and vertical (16 kN/m) components. Neglect own weights and thicknesses of the members. f w 26.667 kN/m, 1.5m Draw necessary free body diagrams and determine the reaction forces at roller supports (D and N) and...
A rigid body with mass m is supported by a roller at A and a pin...
A rigid body with mass m is supported by a roller at A and a pin at B. A horizontal force with magnitude F is applied to the right of the body as shown. Gravity acts in the vertical direction and the center of mass is at G. 0.61 0.51 1.5L What is the maximum force that can be applied to the block such that it remains in equilibrium? Select one: 15 15 d, F = 3mg
The structure below is supported by a pin at A and a roller at E Determine the force in each member of the truss using the Method of Joints H meters 2 FE m AH m GF m HG m Joint Loadings, kN ent length, m Height, m HG GF FE 1.5 2 Draw FBD of truss system to determine reaction forces Assume all forces in members are tensile. If answer is negative, force is compressive. s in x direction...
60 E pin O roller 9. [1pt] Two forces are applied to the truss as shown, Fi = 128 N and F2 = 164 N. The truss is supported by a pin joint at A and a roller at E. Assume L = 1.30 m. Indicate whether the member AD is in compression (C) or in tension (T). You only have I try! Answer: Submit All Answers 10. [1pt] Calculate the value of the force in member CD. Enter a...
In the following loaded truss, which is supported by pin at A and roller at B, as shown a. Find Zero force Members by inspection (Negative marks for wrong answer) b. Find Support Reactions at A and B c. Find forces in Members CD and CE by Method of Section d. Find forces in Members EF and CH by Method of Joint (3 Points) (6 Points) (8 Points) (8 Points) 8U)N 800 N 800N D600 N 60 11.547 m 30°...
Support at C is Pin, Support at A is Roller 40 N 3 What is the vertical reaction at C (N) ZMc0 (teo -Ar() Cx Y.00- Cy- G00-Y00 G-200N +G00 0 A What is the force in member AB (N) Fre-(Xcoo) 600-FA ()-0 Sunnort at A is Pin. Support at B is Roller
Determine the magnitude of the force at the pin at D. 600 N 0.2 m 0.2 m ID 0.2 m 0.2 m-0.2 m
A is a roller and C is pin connected
3-9. Determine the force in each member of the truss. State if the members are in tension or compression. E 12 kN 8 kN 3 m 45° 24 kN 4 m Prob. 3-9
a) the reactions on the pin (pin) A and roller (roller)
B.
b) Internal loads (axial, shear, and flexor moment) at point
E.
2KN/m C PA BE D |-1.5 m+-1.5 m-t1.5 m1.5m 5 KN
2KN/m C PA BE D |-1.5 m+-1.5 m-t1.5 m1.5m 5 KN
Q1. Two rigid members (BCDE and EKN) are connected by a pin at E. The structure is supported by a pin at B and two rollers at D and N. An inclined distributed load is acting between E and K with the horizontal (12 kN/m) and vertical (16 kN/m) components. Neglect own weights and thicknesses of the members. f w 26.667 kN/m, 1.5m Draw necessary free body diagrams and determine the reaction forces at roller supports (D and N) and...
A rigid body with mass m is supported by a roller at A and a pin at B. A horizontal force with magnitude F is applied to the right of the body as shown. Gravity acts in the vertical direction and the center of mass is at G. 0.61 0.51 1.5L What is the maximum force that can be applied to the block such that it remains in equilibrium? Select one: 15 15 d, F = 3mg
