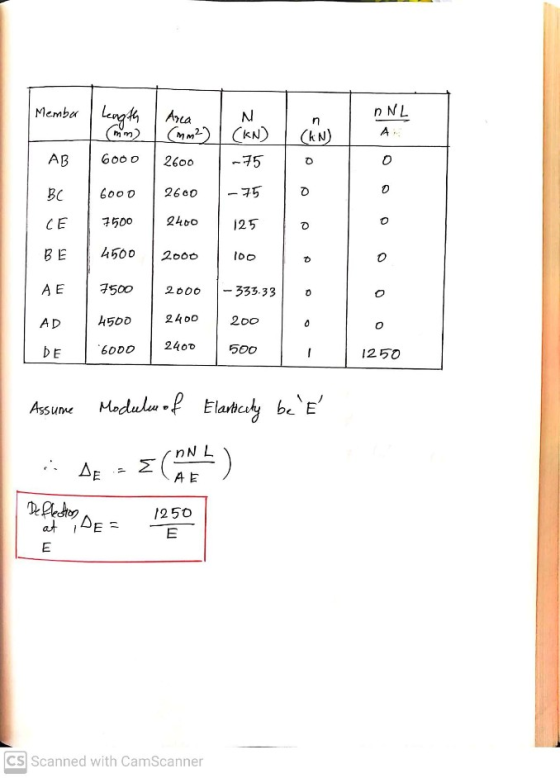

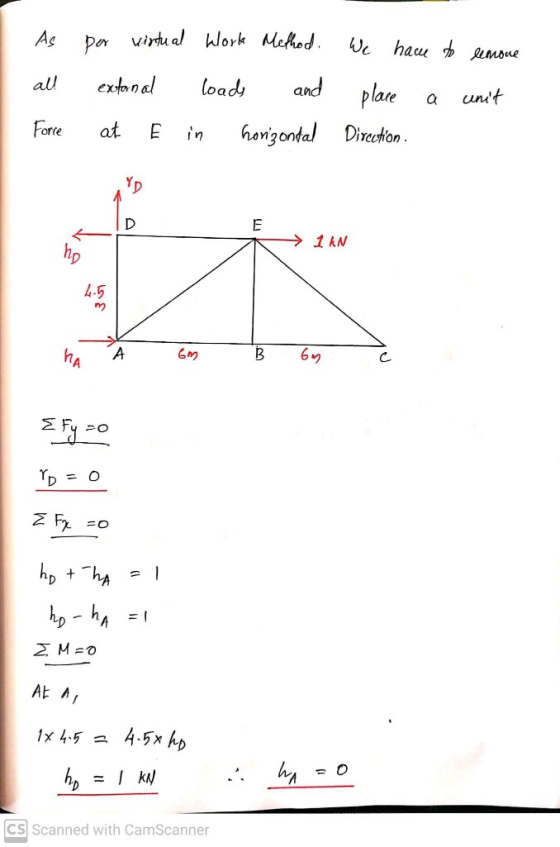

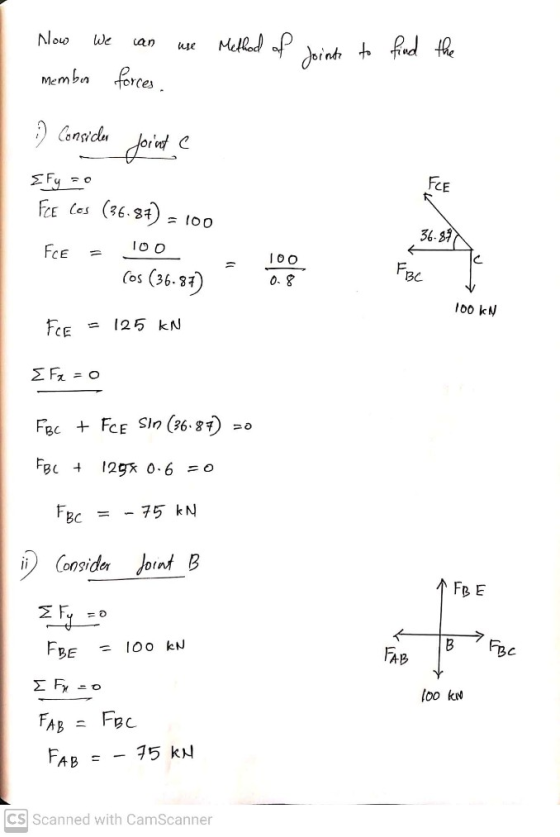

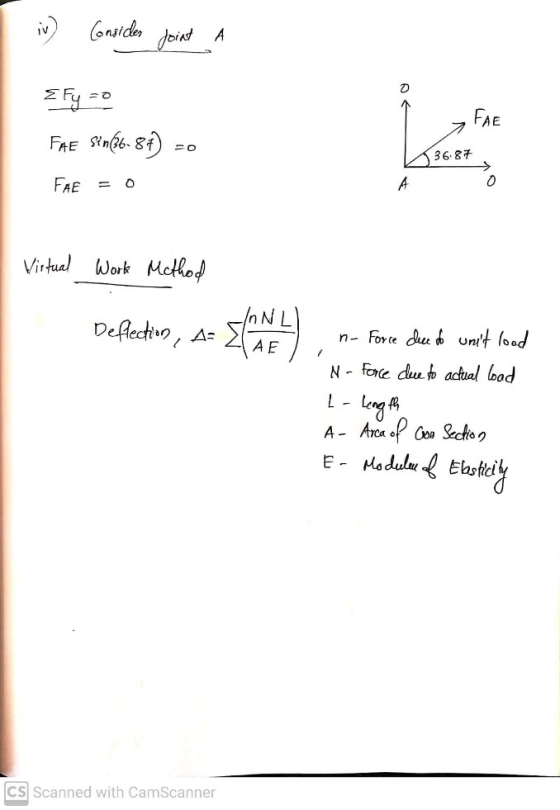

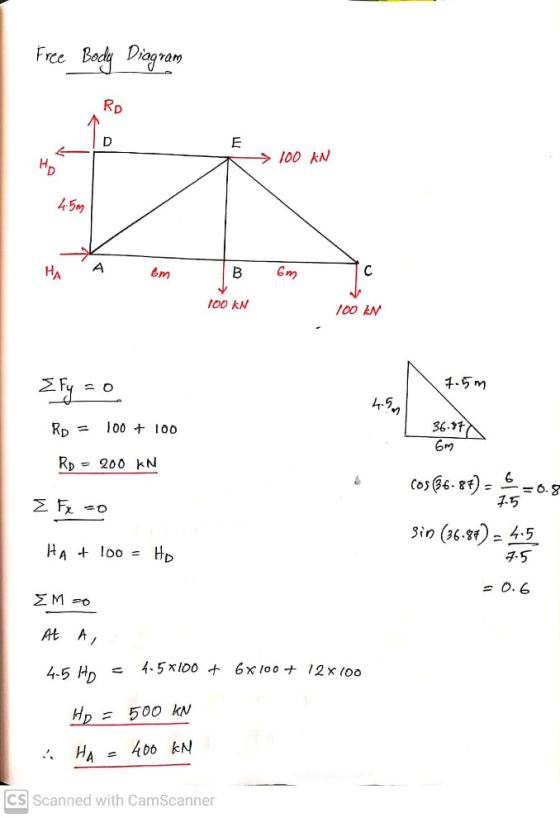

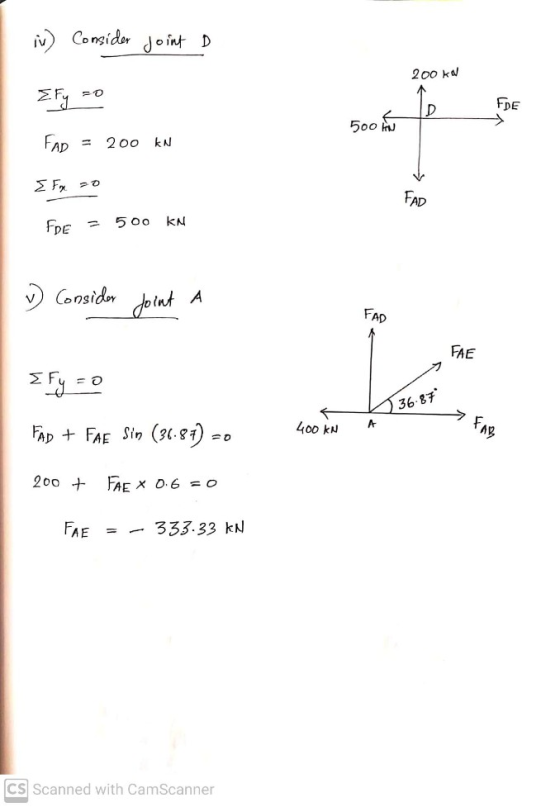

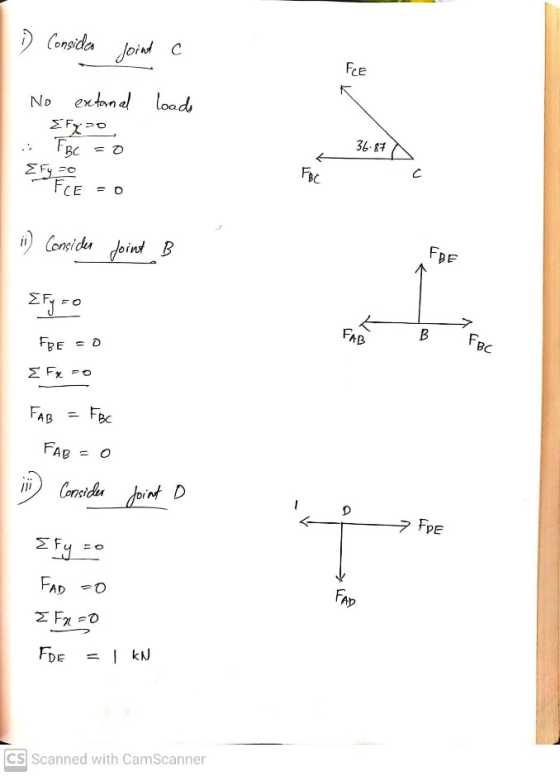

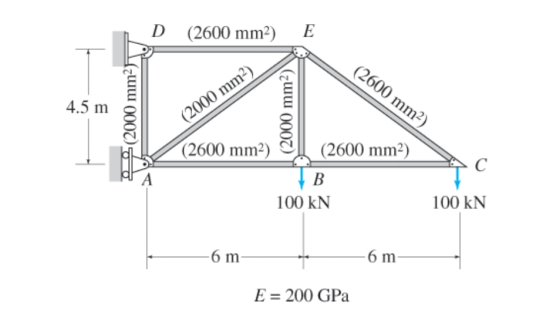

Calculate the horizontal deflection at joint C for the truss shown. D 2600 mm^2 E 4.5 m 2600 mm^2 2600 mm^2 TB 100 kN 100 kN E 200 GPa 6 m
Homework Answers
Add Answer to:
Calculate the horizontal deflection at joint C for the truss shown. D 2600 mm^2 E 4.5 m 2600 mm^2 2600 mm^2 TB 100 kN 100 kN E 200 GPa 6 m
Calculate the maximum deflection of the steel beam (E=200 GPa), if a=0.6 m and P=14 kN....
Calculate the maximum deflection of the steel beam (E=200 GPa), if a=0.6 m and P=14 kN. Take I = 102 x 100 mm4. Write your answer in mm to 2 decimal places. P 0 |Α C IB + a a a a
Determine the horizontal deflection at joint E of the truss shown below by (a) Virtual workmethod...
Determine the horizontal deflection at joint E of the truss
shown below by (a) Virtual workmethod (b) Castigliano’s second
theorem
Problem 1. Determine the horizontal deflection at joint E of the truss shown below by a) Virtual work method [13 pts] b) Castigliano's second theorem (13 pts] 6k 6k 6k bo 4k C E 10 ft B |-54t-5-5f-+5ft- EA = constant E = 29,000 ksi A = 6 in.2
6 kN/m 15 kN 100 mm E NA - B D 100 mm 0.8 m For...
6 kN/m 15 kN 100 mm E NA - B D 100 mm 0.8 m For the truss system shown, a. (10 pts) Draw the shear and moment diagrams for the rectangular wooden beam shown. b. (6 pts)Determine the magnitude of the absolute maximum moment (Mmax) and its location c. (Z pts) Find the maximum bending stress in the member (max) d. (Z pts)Compute the Bending Stress at a point on the section B that is 25 mm below the...
15 kN 6 kN/m 100 mm AC E NA - B D 100 mm 0.8 m...
15 kN 6 kN/m 100 mm AC E NA - B D 100 mm 0.8 m 2. (30pts.) For the truss system shown, a. (10 pts) Draw the shear and moment diagrams for the rectangular wooden beam shown. b. (6 pts )Determine the magnitude of the absolute maximum moment (Mmax) and its location c. (7 pts) Find the maximum bending stress in the member (max) d. (7 pts)Compute the Bending Stress at a point on the section B that is...
Calculate the deflection at B of the steel beam (E=200 GPa), if a=1.2 m and P=17...
Calculate the deflection at B of the steel beam (E=200 GPa), if a=1.2 m and P=17 kN. Take I = 102 x 106 mm4 Write your answer in mm to 2 decimal places. P Mo = Pa A B
Calculate the maximum deflection of the steel shaft (E=200 GPa), if a=1.5 m and P=287 N....
Calculate the maximum deflection of the steel shaft (E=200 GPa), if a=1.5 m and P=287 N. The shaft diameter is 25 mm. Write your answer in mm to 2 decimal places. a 2 NI A B P P
Calculate the maximum deflection of the steel shaft (E=200 GPa), if a=0.9 m and P=76 N....
Calculate the maximum deflection of the steel shaft (E=200 GPa), if a=0.9 m and P=76 N. The shaft diameter is 25 mm. Write your answer in mm to 2 decimal places. 2 2 A B P P
Determine the smallest cross-sectional area A required for the members of the truss shown, so that the horizontal deflection at joint D does not exceed 10 mm. Use the virtual work method.
Determine the smallest cross-sectional
area A required for the members of the truss shown, so that
the horizontal deflection at joint D does not exceed 10 mm.
Use the virtual work method.
2. Use the virtual work method to determine the horizontal deflection at joint H of the truss shown in Figure 2 G (1500 mm2) H 4 m (1500 (1500 150 kN> 4 m (1500 mm2) (1500 2 m E-2x10S MPa Im Figur...
2. Use the virtual work method to determine the horizontal deflection at joint H of the truss shown in Figure 2 G (1500 mm2) H 4 m (1500 (1500 150 kN> 4 m (1500 mm2) (1500 2 m E-2x10S MPa Im Figure 2
2. Use the virtual work method to determine the horizontal deflection at joint H of the truss shown in Figure 2 G (1500 mm2) H 4 m (1500 (1500 150 kN> 4 m (1500 mm2) (1500 2...
IS IN 6kN/m 100 mm E NA - M 08m 2. (Bpts) For the truss system...
IS IN 6kN/m 100 mm E NA - M 08m 2. (Bpts) For the truss system show, a. (10 pts) Draw the shear and moment diagrams for the rectangular wooden beam shown. b. (6 pts Determine the magnitude of the absolute maximum moment (M...) and its location 1 pts) Find the maximum bending stress in the member (..) d. (7 pts Compute the Bending Stress at a point on the section that is 25 mm below the top of the...
Calculate the maximum deflection of the steel beam (E=200 GPa), if a=0.6 m and P=14 kN. Take I = 102 x 100 mm4. Write your answer in mm to 2 decimal places. P 0 |Α C IB + a a a a
Determine the horizontal deflection at joint E of the truss
shown below by (a) Virtual workmethod (b) Castigliano’s second
theorem
Problem 1. Determine the horizontal deflection at joint E of the truss shown below by a) Virtual work method [13 pts] b) Castigliano's second theorem (13 pts] 6k 6k 6k bo 4k C E 10 ft B |-54t-5-5f-+5ft- EA = constant E = 29,000 ksi A = 6 in.2
6 kN/m 15 kN 100 mm E NA - B D 100 mm 0.8 m For the truss system shown, a. (10 pts) Draw the shear and moment diagrams for the rectangular wooden beam shown. b. (6 pts)Determine the magnitude of the absolute maximum moment (Mmax) and its location c. (Z pts) Find the maximum bending stress in the member (max) d. (Z pts)Compute the Bending Stress at a point on the section B that is 25 mm below the...
15 kN 6 kN/m 100 mm AC E NA - B D 100 mm 0.8 m 2. (30pts.) For the truss system shown, a. (10 pts) Draw the shear and moment diagrams for the rectangular wooden beam shown. b. (6 pts )Determine the magnitude of the absolute maximum moment (Mmax) and its location c. (7 pts) Find the maximum bending stress in the member (max) d. (7 pts)Compute the Bending Stress at a point on the section B that is...
Calculate the deflection at B of the steel beam (E=200 GPa), if a=1.2 m and P=17 kN. Take I = 102 x 106 mm4 Write your answer in mm to 2 decimal places. P Mo = Pa A B
Calculate the maximum deflection of the steel shaft (E=200 GPa), if a=1.5 m and P=287 N. The shaft diameter is 25 mm. Write your answer in mm to 2 decimal places. a 2 NI A B P P
Calculate the maximum deflection of the steel shaft (E=200 GPa), if a=0.9 m and P=76 N. The shaft diameter is 25 mm. Write your answer in mm to 2 decimal places. 2 2 A B P P
2. Use the virtual work method to determine the horizontal deflection at joint H of the truss shown in Figure 2 G (1500 mm2) H 4 m (1500 (1500 150 kN> 4 m (1500 mm2) (1500 2 m E-2x10S MPa Im Figure 2
2. Use the virtual work method to determine the horizontal deflection at joint H of the truss shown in Figure 2 G (1500 mm2) H 4 m (1500 (1500 150 kN> 4 m (1500 mm2) (1500 2...
IS IN 6kN/m 100 mm E NA - M 08m 2. (Bpts) For the truss system show, a. (10 pts) Draw the shear and moment diagrams for the rectangular wooden beam shown. b. (6 pts Determine the magnitude of the absolute maximum moment (M...) and its location 1 pts) Find the maximum bending stress in the member (..) d. (7 pts Compute the Bending Stress at a point on the section that is 25 mm below the top of the...
