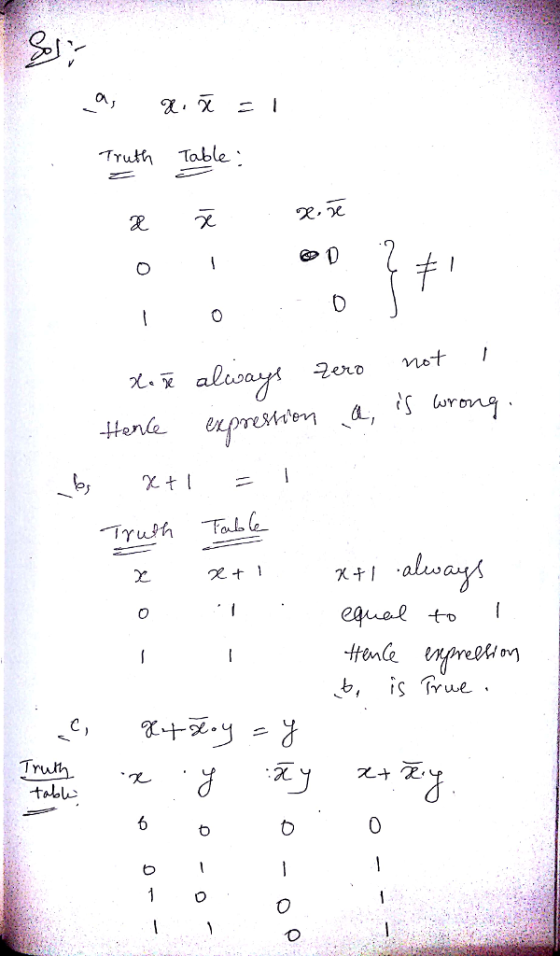

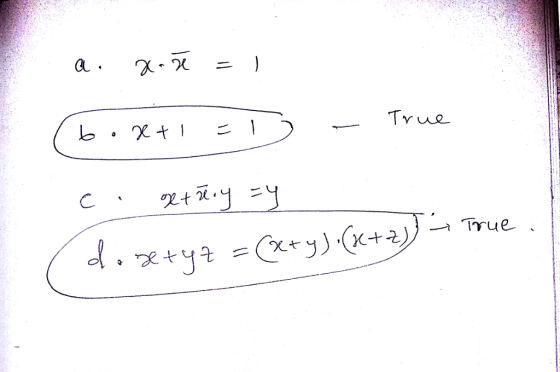

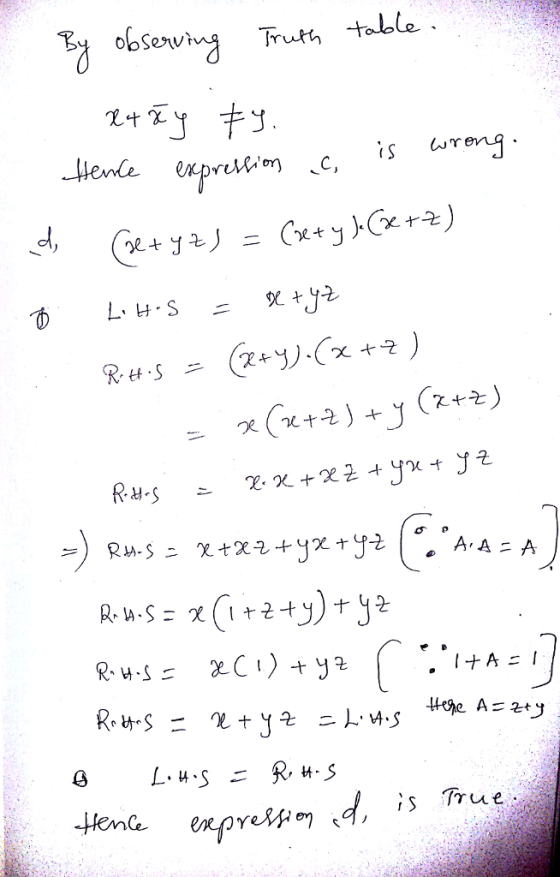

Please show steps with explanations: I) Circle each expression which is true. Some are Boolean axioms...
please specify each steps 6. Minimize the following boolean expression, X, using the Boolean Identities. (Hint:...
please specify each steps
6. Minimize the following boolean expression, X, using the Boolean Identities. (Hint: final expression has 3 terms and 5 literals) a. X(a, b, c) = a'bc + ((a'b' + b'c)'(a' + b'))' b. Draw the 2-level AND-OR gate network for the simplified expression of Y.
I just need help with the second one 4. Proof and simplification (16 points) a) Show...
I just need help with the second one
4. Proof and simplification (16 points) a) Show that the following equation is valid using Boolean algebra axioms and theorems. Demonstrate your detailed steps. (8 points) BC+Ā B+AC = ABC+Ā b) Simplify the following logic equation: (8 points) F(X,Y,Z)=Y Z + XY + XZ + YZ
Use Boolean Algebra to simplify the following Boolean expressions to three (3) literals. Please write down...
Use Boolean Algebra to simplify the following Boolean expressions to three (3) literals. Please write down the intermediate steps. 1). F11(x,y,z) = x'yz+xyz +x'y'Z+xy'Z+ xy'z 2). F12(x,y,z) = (y'+xyz')' Question 2 [2 points) Obtain the function expression of F2 from the logic diagram. Question 3 [3 points) Obtain the truth table of the following function and rewrite the function in Canonical POS (Product of Maxterms) format: F3(a,b,c) = (a'+c)(a+b+c') +a'bc' Question 4 (2 points) Convert the following function to Canonical...
I need help with this assignment on Boolean Expression: Create a truth table for this function:...
I need help with this assignment on Boolean Expression: Create a truth table for this function: F(a, b, c, d) = A'B'D + A'B + ACD Then use a K-Map to reduce the given function and create a truth table for the reduced funtion also(give detail Explanation) Please Implement both original function and the reduce function using logic gates on a multisim Note that the outputs should track if the circuits are designed and implemented correctly. Thank you
please help me fast please Question 1 [Marks: 201 Simplify the following Boolean expression using De...
please help me fast please
Question 1 [Marks: 201 Simplify the following Boolean expression using De Morgan law and Boolean Algebra rules. Show process steps and your work clearly. Hint: Boolean expression below can be simplified as two variables and OR operation. Q=(A+C)+A+(B+A).B Question 2 [Marks: 20 Simplify the following Boolean expressions using De Morgan law and Boolean Algebra rules. Show process steps and your work clearly. Hint: Boolean expression below can be simplified as two variables and OR operation....
I would just like for you to show how Part-B is to be implemented in the...
I would just like for you to show how Part-B is to be
implemented in the TTL, please draw a diagram to make it clear.
Part A: Design and wire a circuit to implement the Boolean expression C (x, y, z) = m (1, 2, 4, 7) using an 8-to-1 multiplexer (TTL Part 74LS151). Verify the operation by checking all input combinations in the Boolean function's truth table. an 8-10-1 multiplexer (TL Part 7 Pau Bayukle mert that time Part...
Could you please show me the steps without explanations I need it ASAP please thank you,...
Could you please show me the steps without explanations I need
it ASAP please thank you,
I will give tum up
Determine the domain of the function Х f(x) = X-2 O A. All real numbers except 2 OB. All real numbers OC. No solution OD. X2
I need help with this assignment on Boolean Expression: F(a, b, c, d) = A'B'D +...
I need help with this assignment on Boolean Expression: F(a, b, c, d) = A'B'D + A'B + ACD Use a K-Map to reduce the given function. Then use it to create a truth table Implement both original function and the reduce function using logic gates on a multisim Please Feed both circuits of each function with the same inputs (clocks or word generator). Also feed a logic analyzer with theses inputs and both outputs. Note that the outputs should...
6. Convert .3710 to a binary fraction of 10 binary digits. 7. Use two's compliment arithmetic to perform the following 8 bit binary operations. a. 0010 1110 + 0001 1011 b. 0101 1101 – 0011 1010 c....
6. Convert .3710 to a binary fraction of 10 binary digits. 7. Use two's compliment arithmetic to perform the following 8 bit binary operations. a. 0010 1110 + 0001 1011 b. 0101 1101 – 0011 1010 c. 1011 1000 – 1000 1011 d. 1000 1100 – 1111 0111 8. Convert 150.8476562510 to IEEE Floating Point Standard. 9. Simplify the following Boolean expressions. a. xy + xy + xz b. (w + x)(x + y)(w + x + y + z)...
9. (Expression Truth Table) Determine the truth table for the three-input XOR function y = 11...
9. (Expression Truth Table) Determine the truth table for the three-input XOR function y = 11 12 13. You may first evaluate i n and then evaluate y as y=( 12) 13. In the truth table, besides the columns for 11.12.13 and y, also include a column corresponding to I 1. Also use a word statement to describe this logic function and indicate a possible application of the function 10. (Expression Circuit) Draw a circuit schematic which realizes the logic...
please specify each steps
6. Minimize the following boolean expression, X, using the Boolean Identities. (Hint: final expression has 3 terms and 5 literals) a. X(a, b, c) = a'bc + ((a'b' + b'c)'(a' + b'))' b. Draw the 2-level AND-OR gate network for the simplified expression of Y.
I just need help with the second one
4. Proof and simplification (16 points) a) Show that the following equation is valid using Boolean algebra axioms and theorems. Demonstrate your detailed steps. (8 points) BC+Ā B+AC = ABC+Ā b) Simplify the following logic equation: (8 points) F(X,Y,Z)=Y Z + XY + XZ + YZ
Use Boolean Algebra to simplify the following Boolean expressions to three (3) literals. Please write down the intermediate steps. 1). F11(x,y,z) = x'yz+xyz +x'y'Z+xy'Z+ xy'z 2). F12(x,y,z) = (y'+xyz')' Question 2 [2 points) Obtain the function expression of F2 from the logic diagram. Question 3 [3 points) Obtain the truth table of the following function and rewrite the function in Canonical POS (Product of Maxterms) format: F3(a,b,c) = (a'+c)(a+b+c') +a'bc' Question 4 (2 points) Convert the following function to Canonical...
please help me fast please
Question 1 [Marks: 201 Simplify the following Boolean expression using De Morgan law and Boolean Algebra rules. Show process steps and your work clearly. Hint: Boolean expression below can be simplified as two variables and OR operation. Q=(A+C)+A+(B+A).B Question 2 [Marks: 20 Simplify the following Boolean expressions using De Morgan law and Boolean Algebra rules. Show process steps and your work clearly. Hint: Boolean expression below can be simplified as two variables and OR operation....
I would just like for you to show how Part-B is to be
implemented in the TTL, please draw a diagram to make it clear.
Part A: Design and wire a circuit to implement the Boolean expression C (x, y, z) = m (1, 2, 4, 7) using an 8-to-1 multiplexer (TTL Part 74LS151). Verify the operation by checking all input combinations in the Boolean function's truth table. an 8-10-1 multiplexer (TL Part 7 Pau Bayukle mert that time Part...
Could you please show me the steps without explanations I need
it ASAP please thank you,
I will give tum up
Determine the domain of the function Х f(x) = X-2 O A. All real numbers except 2 OB. All real numbers OC. No solution OD. X2
9. (Expression Truth Table) Determine the truth table for the three-input XOR function y = 11 12 13. You may first evaluate i n and then evaluate y as y=( 12) 13. In the truth table, besides the columns for 11.12.13 and y, also include a column corresponding to I 1. Also use a word statement to describe this logic function and indicate a possible application of the function 10. (Expression Circuit) Draw a circuit schematic which realizes the logic...
