Factor the expression A’B’ + (CD’ + E) to obtain a product of sums Given: F(a,...

Question

Question

Factor the expression A’B’ + (CD’ + E) to obtain a product of sums

Given: F(a, b, c, d) = (a + b + d)(a’ + c)(a’ + b’ + c’)(a + b + c’ + d’)

Express F as a minterm expansion (Use m-notation): F = ∑

Express F as a maxterm expansion (Use M-notation): F = ∏

Express F’ as a minterm expansion (Use m-notation): F’ = ∑

Express F’ as a maxterm expansion (Use M-notation): F’ = ∏

engineering Electrical-Engineering

Answer 1

Answer #1

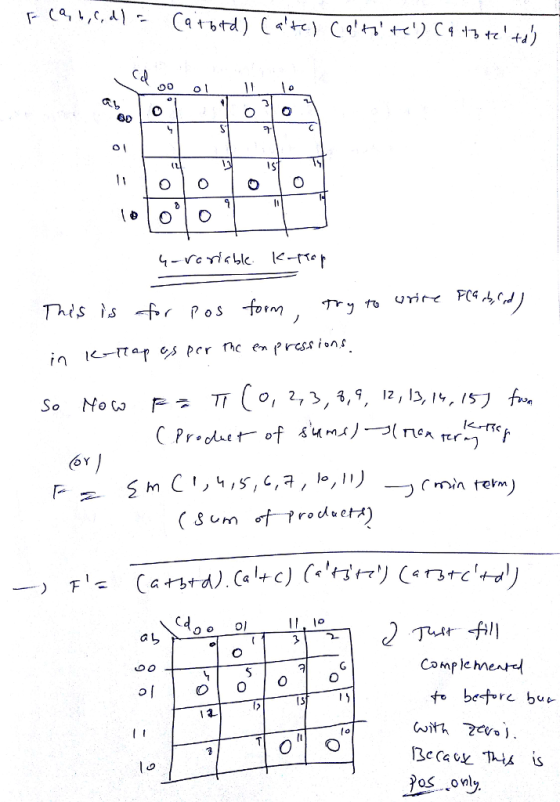

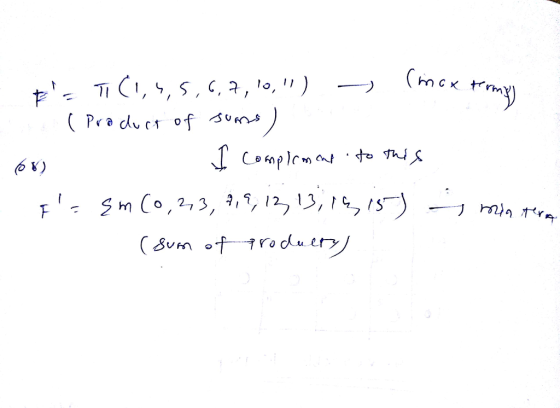

So た「一つrmin rem C d camplehmes 12

Answer 2

Similar Homework Help Questions

5. Given f(X,Y,Z)- XZ(XY+XY'), a) Express f as a minterm expansion b) Express f as a...

5. Given f(X,Y,Z)- XZ(XY+XY'), a) Express f as a minterm expansion b) Express f as a minterm expansion c) Express f as a max term expansion d) Express f as a max term expansion. Use m/M notation.
3. a) Simplify the expression (ab + a’b’)(cd + c’d’) + (ab)’ b). Prove that the...

3. a) Simplify the expression (ab + a’b’)(cd + c’d’) + (ab)’ b). Prove that the expression x’y XOR xy’ = x XOR y is true. c). Simplify the function f(x, y, z) = xyz’ + xy’z’ + x’y as much as possible and give the CPOS and CSOP of f
1.(20 Pts) Factor to obtain a product of sums. Simplify where possible. F(WXYZ) W'Y'Z' + WXZ'...

1.(20 Pts) Factor to obtain a product of sums. Simplify where possible. F(WXYZ) W'Y'Z' + WXZ' + W'YZ+XZ 1.(20 Pts) Factor to obtain a product of sums. Simplify where possible. F(WXYZ) W'Y'Z' + WXZ' + W'YZ+XZ

(1) [POS] Factor to obtain a product of sums. (Simplify where possible) A'C'D' + ABD' +...

(1) [POS] Factor to obtain a product of sums. (Simplify where possible) A'C'D' + ABD' + A'CD+B'D [SOP] Factor to obtain a sum of product. (Simplify where possible) (K'+M'+N)(K'+M)(L+M+N')(K'+L+M)(M+N)
Find a minimal sum-of-products and product-of-sums expression for the function: f(A, B, C, D) = sigma...

Find a minimal sum-of-products and product-of-sums expression for the function: f(A, B, C, D) = sigma m(1, 2, 3,5,13) + d (6,7,8,9,11)
just simplyfy n expand 1.(20 Pts) Factor to obtain a product of sums. Simplify where possible....

just simplyfy n expand 1.(20 Pts) Factor to obtain a product of sums. Simplify where possible. F(WXYZ)- W'Y'Z' +WXZ + W'YZ+X'Z 0 0

About logic diagram, boolean algebra, computer organization Draw the logic diagram for function F as a...

About logic diagram, boolean algebra, computer organization Draw the logic diagram for function F as a 2‐level AND‐OR circuit. Background F(a,b,c) --> F output 1 if abc is interpreted as 3-bit unsigned integer is a prime number. Output is 0 for other numbers. The Simplified SOP Expression of F = a'b + ac F (a, b, c) = m (2, 3, 5, 7) Note: i) complemented inputs (a', b', c') are not available; ii) Use a fan‐in of 2 only....
Minimize the following expression in (a) Sum of Products and (b) Product of Sums forms: (A’...

Minimize the following expression in (a) Sum of Products and (b) Product of Sums forms: (A’ + B’ + D)(A’ + D’)(A + B + D’)(A + B’ + C + D)
Problem 2.14 Use algebraic manipulation to find the minimum product-of-sums expression for the function f= (x1...

Problem 2.14 Use algebraic manipulation to find the minimum product-of-sums expression for the function f= (x1 + x3 + x4) (x1 + x2' + x3) (x1 + x2' + x3' + x4). %3D

Given the sum-of-minterms expression F = m4 + m6 + m7 + m12 + m14 +...

Given the sum-of-minterms expression F = m4 + m6 + m7 + m12 + m14 + m15 a. Using letters, A-D for the bits, what sum of minterms does this expression represent? b. Plot the following in a Karnaugh Map. c. Using the karnaugh map, state the simplest sum-of-products expression. d. Using the karnaugh map, state the simplest product-of-sums expression. e. Demonstrate how you would use a 4-line to 16 line demultiplexer to implement the circuit. You may use either...
