Homework Answers
given
m = 61 kg
mue_k = 0.60
As the refregerator is moving with consatnt speed, Fnetx = 0
Fp - fk = 0
Fp = fk
= mue_k*m*g
= 0.6*61*9.8
= 358.7 N
For not to tip, net torque on the refregerator must be zero.
now apply net torque about point B = 0
m*g*(0.8/2) - Fp*h = 0
Fp*h = m*g*0.4
h = m*g*0.4/Fp
= 61*9.8*0.4/358.7
= 0.667 m <<<<<<--------------Answer
Add Answer to:

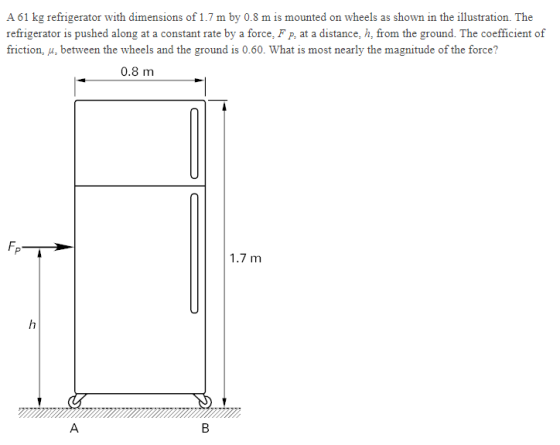

A 61 kg refrigerator with dimensions of 1.7 m by 0.8 m is mounted on wheels...
