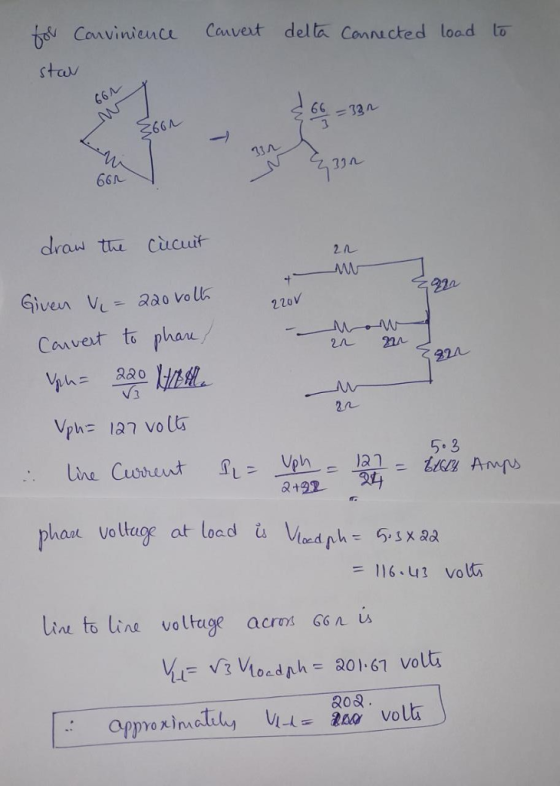

A 3-phase circuit is shown in figure below. Load resistors (66 ?) are connected in delta...
A balanced three-phase delta-connected load is connected to a balanced three-phase delta-connected source via a transmission...
A balanced three-phase delta-connected load is connected to a balanced three-phase delta-connected source via a transmission line. The line-line voltage for the source is 100∟0° V/phase and the impedance of load is (27 + j18) Ω/phase. The transmission line has an impedance of (1 + j4) Ω/line. a) Draw the complete schematic of the power system showing the location of wattmeters. (Two-Wattmeter system is considered for this problem). Phase “a” could be considered as a reference phase. b) What must...
3. A balanced three-phase delta connected load with 15+j10 ohms load on each balanced, wye connected...
3. A balanced three-phase delta connected load with 15+j10 ohms load on each balanced, wye connected source with Van branch is supplied by a -7.6240 KV, while the transmission line impedances are 1+7j on each line. Calculate the line currents (currents on the transmission lines) la, 1b, and 1c. (Hint: convert the Δ configured load into a Y configured load
1- A balanced delta connected load of 15 + j18 12 per phase is connected at...
1- A balanced delta connected load of 15 + j18 12 per phase is connected at the end of a three-phase line as shown in Figure 1. The line impedance is 1 + j2 12 per phase. The line is supplied from a three-phase source with a line-to-line voltage of 207.85 V rms. Taking the phase voltage Van as reference, determine: a) Current in phase a. b) Total complex power supplied from the source. c) Total complex powers of the...
A balanced delta connected 3 phase load with per phase impedance of Z1 = 3 +...
A balanced delta connected 3 phase load with per phase impedance
of
Z1 = 3 + j9 (Ohm)
is connected in parallel to a balanced 3 phase star connected load
with per phase impedance:
Z2 = 6 + j16 (Ohm).
Their connection is shown in the Picture attached. This load
combination is connected to a balanced 3 phase 415V (line-to-line)
supply.
Find the magnitude of the line current drawn from the supply. Enter
your results in Amps with one digit...
50 Points 1- A balanced delta connected load of 15 + j18 per phase is connected...
50 Points 1- A balanced delta connected load of 15 + j18 per phase is connected at the end of a three-phase line as shown in Figure 1. The line impedance is 1 + 12 12 per phase. The line is supplied from a three-phase source with a line-to-line voltage of 207.85 V rms. Taking the phase voltage Van as reference, determine: a) Current in phase a. b) Total complex power supplied from the source. c) Total complex powers of...
A balanced delta connected load of 15+?18 Ω per phase is connected at the end of...
A balanced delta connected load of 15+?18 Ω per phase is
connected at the end of a three-phase line as shown in Figure 1.
The line impedance is 1+?2 Ω per phase. The line is supplied from a
three-phase source with a line-to-line voltage of 207.85 V rms.
Taking the phase voltage ??? as reference, determine:
1. Total complex powers of the line and the load.
2.A delta connected capacitor bank is connected in parallel with
the load to improve...
3- A balanced wye-connected load of (4 + j3) Ω is connected across a three-phase delta...
3- A balanced wye-connected load of (4 + j3) Ω is connected across a three-phase delta connected source. the source phase voltage is 173 V . • Find the load current. • Find the power factor, P and Q
A balanced delta connected load has a per phase impedance of 12+j21 ohms. The load is...
A balanced delta connected load has a per phase
impedance of 12+j21 ohms. The load is supplied power from a source
with line to line voltage of 480 V through a distribution line. The
line impedance is 2 + j4.5 ohms. What is the current magnitude in
the distribution line?
of the below questions. A balanced A connected load has a per-phase impedance of 12+,21 22. The load is supplied power from a source with line-to-line voltage of 480 V...
Question 2: Three phase circuit. (100p) A wye connected generator supplies a delta connected balanced load...
Question 2: Three phase circuit. (100p) A wye connected generator supplies a delta connected balanced load through short feeder. seree the load line to neutral voltage as reference voltage phase angle zero. 02.1 Q2.2 Q2.3 Q2.4 Draw the equivalent circuit. 10p Calculate the load line-to-neutral voltages and line-to-line voltages. 20p Calculate the delta load currents and feeder currents. 20p Calculate the supply wye connected generator line-to-neutral voltages. Is the obtained values are acceptable? Calculate the generator real and reactive power...
A three-phase electrical heater dissipates 50kW when connected to a 4160V, 3-phase line. (a) Draw the...
A three-phase electrical heater dissipates 50kW when connected to a 4160V, 3-phase line. (a) Draw the circuit diagram and indicate system parameters (line to line voltage, currents, fuses, etc.) if the loads (resistors) are connected in WYE. (b) What is the LINE current if the resistors are all connected in WYE? (c) Draw the circuit diagram and calculate the LINE current if the resistors are all connected in DELTA? (d) While the delta connected load resistors are working fine, and...
3. A balanced three-phase delta connected load with 15+j10 ohms load on each balanced, wye connected source with Van branch is supplied by a -7.6240 KV, while the transmission line impedances are 1+7j on each line. Calculate the line currents (currents on the transmission lines) la, 1b, and 1c. (Hint: convert the Δ configured load into a Y configured load
1- A balanced delta connected load of 15 + j18 12 per phase is connected at the end of a three-phase line as shown in Figure 1. The line impedance is 1 + j2 12 per phase. The line is supplied from a three-phase source with a line-to-line voltage of 207.85 V rms. Taking the phase voltage Van as reference, determine: a) Current in phase a. b) Total complex power supplied from the source. c) Total complex powers of the...
A balanced delta connected 3 phase load with per phase impedance
of
Z1 = 3 + j9 (Ohm)
is connected in parallel to a balanced 3 phase star connected load
with per phase impedance:
Z2 = 6 + j16 (Ohm).
Their connection is shown in the Picture attached. This load
combination is connected to a balanced 3 phase 415V (line-to-line)
supply.
Find the magnitude of the line current drawn from the supply. Enter
your results in Amps with one digit...
50 Points 1- A balanced delta connected load of 15 + j18 per phase is connected at the end of a three-phase line as shown in Figure 1. The line impedance is 1 + 12 12 per phase. The line is supplied from a three-phase source with a line-to-line voltage of 207.85 V rms. Taking the phase voltage Van as reference, determine: a) Current in phase a. b) Total complex power supplied from the source. c) Total complex powers of...
A balanced delta connected load of 15+?18 Ω per phase is
connected at the end of a three-phase line as shown in Figure 1.
The line impedance is 1+?2 Ω per phase. The line is supplied from a
three-phase source with a line-to-line voltage of 207.85 V rms.
Taking the phase voltage ??? as reference, determine:
1. Total complex powers of the line and the load.
2.A delta connected capacitor bank is connected in parallel with
the load to improve...
A balanced delta connected load has a per phase
impedance of 12+j21 ohms. The load is supplied power from a source
with line to line voltage of 480 V through a distribution line. The
line impedance is 2 + j4.5 ohms. What is the current magnitude in
the distribution line?
of the below questions. A balanced A connected load has a per-phase impedance of 12+,21 22. The load is supplied power from a source with line-to-line voltage of 480 V...
Question 2: Three phase circuit. (100p) A wye connected generator supplies a delta connected balanced load through short feeder. seree the load line to neutral voltage as reference voltage phase angle zero. 02.1 Q2.2 Q2.3 Q2.4 Draw the equivalent circuit. 10p Calculate the load line-to-neutral voltages and line-to-line voltages. 20p Calculate the delta load currents and feeder currents. 20p Calculate the supply wye connected generator line-to-neutral voltages. Is the obtained values are acceptable? Calculate the generator real and reactive power...
