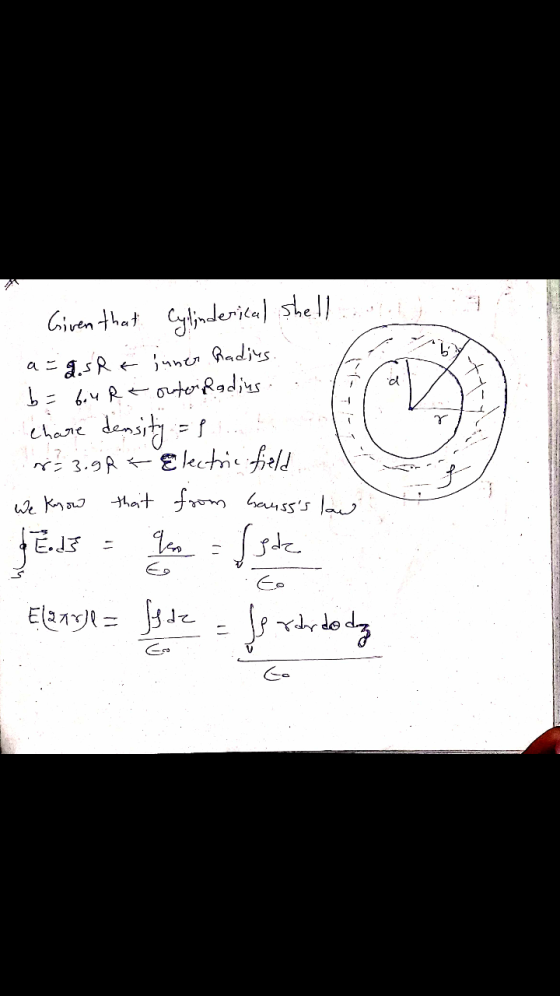

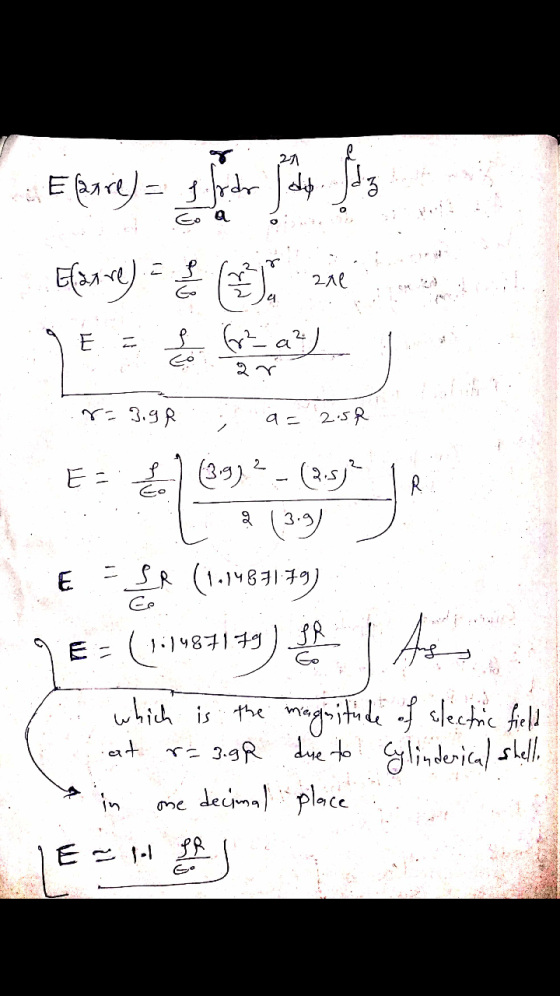

A thick insulating cylindrical shell of inner radius a=2.5R and outer radius b=6.4R has a uniform free charge density p.
A thick insulating cylindrical shell of inner radius a=2.5R and outer radius b=6.4R has a uniform free charge density p.
What is the magnitude of the electric field at r=3.9R? Express your answer using one decimal place in units of ρR/ε0 ?
Homework Answers
if you have any queries then give me a
comment and give me a like.Add Answer to:
A thick insulating cylindrical shell of inner radius a=2.5R and outer radius b=6.4R has a uniform free charge density p.
A thick insulating spherical shell of inner radius a=2.2R and outer radius b=7.8R has a uniform...
A thick insulating spherical shell of inner radius a=2.2R and outer radius b=7.8R has a uniform free charge density p. What is the magnitude of the electric field at 55.5R? Express your answer using one decimal place in units of = ? EO
10.4) Thick insulating shell A thick insulating spherical shell has inner radius a and outer radius...
10.4) Thick insulating shell A thick insulating spherical shell has inner radius a and outer radius b. The shell carries a uniform volume charge density po. [A cross-sectional view of the shell is shown to the right.] (a) Consider a spherical Gaussian surface of radius r concentric with the shell. How much charge is enclosed in the Gaussian surface for p <a, a <r <b, and r > b? (b) What does symmetry dictate about the magnitude and direction of...
A thick insulating spherical shell has inner radius a and outer radius b. The shell carries...
A thick insulating spherical shell has inner radius a and outer radius b. The shell carries a uniform volume charge density ρ0. (a) Consider a spherical Gaussian surface of radius r concentric with the shell. How much charge is enclosed in the Gaussian surface for r < a, a < r < b, and r > b? (b) What does symmetry dictate about the magnitude and direction of the electric field? (c) Determine the electric field everywhere (i.e., what is...
A thick, spherical, insulating shell has an inner radius a and an outer radius b. The region a< r < b has a volume charge density given by p = A/r where A is a positive constant.
PROBLEM 2: A thick, spherical, insulating shell has an inner radius a and an outer radius b. The region a< r < b has a volume charge density given by p = A/r where A is a positive constant. At the center of the shell is a point charge of electric charge +q Determine the value of A such that the electric field magnitude, in the region a < r < b, is constant.
2c. A insulating cylindrical shell with length L and inner radius a, outer radius b, has...
2c. A insulating cylindrical shell with length L and inner radius a, outer radius b, has uniform charge density p. Find the E, not near the ends, for three regions, ra, arb, r>b. * Note, a linear density A could also be given cross section 3c. An insulating shell has inner radius a and outer radius b and a uniform charge density p. Find E at all r (ra; arb; r> b)
line charge 4. A cylindrical shell has inner radius a and outer radius b and is...
line charge 4. A cylindrical shell has inner radius a and outer radius b and is length L. The shell has uniform, charge density ρ. a. Find the electric field not near the ends in all 3 regions. b. (Not Required) A line of charge has total charge Q and length L and is at the middle of a cylindrical shell, along its axis. Find the electric field again in all three regions.
A smooth spherical shell of electricity insulating material with outer radius a and inner radius a/2....
A
smooth spherical shell of electricity insulating material with
outer radius a and inner radius a/2. Inside of this sphere, also
with a radius of a/2, is a conducting solid sphere. The conducting
sphere has an excess amount of charge q. The density of the
insulating sphere is p.
A)
What must be the value of p so that the total charge of this setup
is 0?
B)
Using the value of p from part (A), what are the magnitude...
1. (36 Points) A very long, nonconducting cylindrical shell has an inner radius A, an where...
1. (36 Points) A very long, nonconducting cylindrical shell has an inner radius A, an where outer radius B, and a nonuniform charge density given by pr B and a are constants. The nonconducting spherical shell is surrounded bya concentric, nonconducting cylindrical shell with inner radius B, outer radius C, and uniform charge density such that the magnitude of the electric field for r> C is zero. a. b. c. d. What is the total charge contained in the first...
PROBLEM-4 Consider a thick insulating spherical shell of uniform volume charge density with total charge Q=8uC,...
PROBLEM-4 Consider a thick insulating spherical shell of uniform volume charge density with total charge Q=8uC, inner radius a=40mm, and outer radius b=80mm. a) Find the magnitude of electric field for r=8mm. (1pt) E=40 N/C Upload your answer. Choose File No file chosen b) Find the magnitude of electric field for r=55mm. (4pts) E= N/C Upload your answer. Choose File No file chosen c) Find the magnitude of electric field for r=120mm. (2pts) E= N/C Upload your answer. Choose File...
A hollow insulating spherical shell of inner radius R0 and outer radius R1 is positively charged with a charge density of p(r) = p0(1 – (r/R1)3).
A hollow insulating spherical shell of inner radius R0 and outer radius R1 is positively charged with a charge density of p(r) = p0(1 – (r/R1)3). A positive charge +Q is placed in the center of the hollow sphere and a concentric grounded conducting shell with inner radius R2 and outer radius R3 surrounds the hollow sphere. (The conducting shell was neutral before it is grounded.) (a) What is the total charge on the insulating sphere? (b) What charges are on the...
A thick insulating spherical shell of inner radius a=2.2R and outer radius b=7.8R has a uniform free charge density p. What is the magnitude of the electric field at 55.5R? Express your answer using one decimal place in units of = ? EO
10.4) Thick insulating shell A thick insulating spherical shell has inner radius a and outer radius b. The shell carries a uniform volume charge density po. [A cross-sectional view of the shell is shown to the right.] (a) Consider a spherical Gaussian surface of radius r concentric with the shell. How much charge is enclosed in the Gaussian surface for p <a, a <r <b, and r > b? (b) What does symmetry dictate about the magnitude and direction of...
2c. A insulating cylindrical shell with length L and inner radius a, outer radius b, has uniform charge density p. Find the E, not near the ends, for three regions, ra, arb, r>b. * Note, a linear density A could also be given cross section 3c. An insulating shell has inner radius a and outer radius b and a uniform charge density p. Find E at all r (ra; arb; r> b)
line charge 4. A cylindrical shell has inner radius a and outer radius b and is length L. The shell has uniform, charge density ρ. a. Find the electric field not near the ends in all 3 regions. b. (Not Required) A line of charge has total charge Q and length L and is at the middle of a cylindrical shell, along its axis. Find the electric field again in all three regions.
A
smooth spherical shell of electricity insulating material with
outer radius a and inner radius a/2. Inside of this sphere, also
with a radius of a/2, is a conducting solid sphere. The conducting
sphere has an excess amount of charge q. The density of the
insulating sphere is p.
A)
What must be the value of p so that the total charge of this setup
is 0?
B)
Using the value of p from part (A), what are the magnitude...
1. (36 Points) A very long, nonconducting cylindrical shell has an inner radius A, an where outer radius B, and a nonuniform charge density given by pr B and a are constants. The nonconducting spherical shell is surrounded bya concentric, nonconducting cylindrical shell with inner radius B, outer radius C, and uniform charge density such that the magnitude of the electric field for r> C is zero. a. b. c. d. What is the total charge contained in the first...
PROBLEM-4 Consider a thick insulating spherical shell of uniform volume charge density with total charge Q=8uC, inner radius a=40mm, and outer radius b=80mm. a) Find the magnitude of electric field for r=8mm. (1pt) E=40 N/C Upload your answer. Choose File No file chosen b) Find the magnitude of electric field for r=55mm. (4pts) E= N/C Upload your answer. Choose File No file chosen c) Find the magnitude of electric field for r=120mm. (2pts) E= N/C Upload your answer. Choose File...
