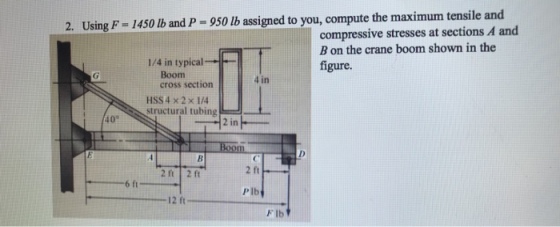

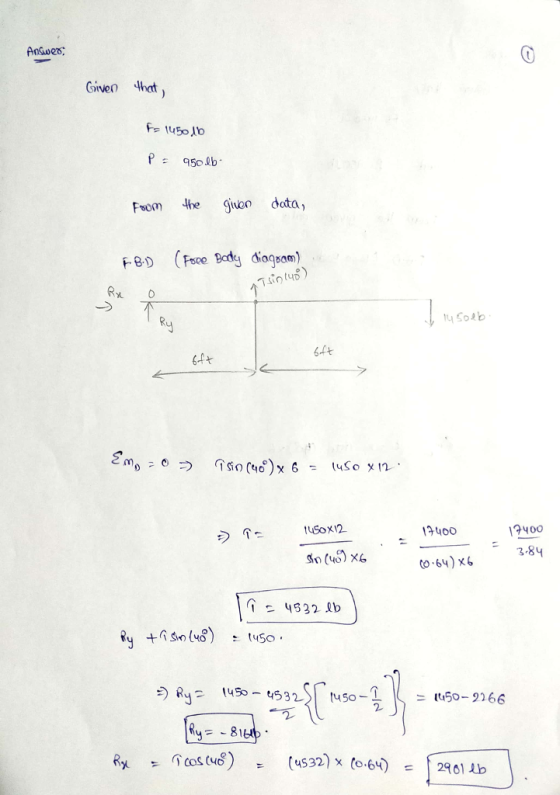

2. Using F-1450 Ib and P- 950 lb assigned to you, compute the maximum tensile and...
(a) Determine the maximum compressive and tensile normal stresses in the A-36 structural steel beam shown...
(a) Determine the maximum compressive and tensile normal
stresses in the A-36 structural steel beam shown and define their
locations (location along the beam and on the cross section). (b)
Determine the deflection of point B using the double
integration method. The height of the cross section shown (in the
y-direction) is 5 inches and width (in the
z-direction) is 10 inches, and the average thickness
throughout is 0.5 inches. (Use elastic properties for all
calculations)
ANSWER: (a) max tensile...
P = 20 kN. Calculate the following: 1. The maximum tensile and compressive stresses at the...
P = 20 kN. Calculate the following: 1. The maximum tensile and compressive stresses at the base of the mast A 2. The maximum tensile and compressive stresses at point B of the mast For each stress state at A and B indicate which side of the mast experiences tension and which side experiences compression. 0.25 m m D w 3 m H С. - 0.1 m mast cross section 3 m 60° Р B 584 mm 6 m mast...
1. For the overhanging beam in the figure below, determine the maximum shear stress, the maximum...
1. For the overhanging beam in the figure below, determine the maximum shear stress, the maximum tensile stress, and the maximum compressive stress in the beam due to the loading shown. 300 lb/ft 6 in. 1 in. 4 ft 10 ft 1 in. 2 in. Section INSTRUCTIONS For PROBLEM do the following steps: 1. Show ALL your work 2. Draw appropriately labeled FBDs 3. Use appropriate segments to develop expressions for the shear force and bending moment. diagrams in a...
F13-4. The 2-Mg car is being towed by a winch. If the winch exerts a force...
F13-4. The 2-Mg car is being towed by a winch. If the winch exerts a force of T = (100s) N on the cable, where s is the displacement of the car in meters, determine the speed of the car when s = 10 m, starting from rest. Neglect rolling resistance of the car. F13-4 A simple beam AB of span length L = 22 ft (Fig. 5-14a) supports a uniform load of Intensity 9 = 1.5 k/ft and a...
Project 2- Design of a Highway Crossover bridge Introduction: In this project you will design a...
Project 2- Design of a Highway Crossover bridge Introduction: In this project you will design a precst pretensioned I girder bridge. Consider a crossover bridge on any state highway. Some details of the bridge is given. You will be respobsible for selecting the length, span length and width of the bridge as shown in the figure below. Girder length= L1 ft Span length - L2 ft Abut 2 Abut 1 Road Concrete barrier Bridge EB Bridge width= 12-0" 12-0" BB...
1. The following is a one-layer truss structure fabricated from aluminum tubing with outside diameter and...
1. The following is a one-layer truss structure fabricated from aluminum tubing with outside diameter and wall thickness as 0.4 inch and 0.05 inch, respectively. The Young's modulus and Poisson's ratio for aluminum are E= 10 x 10°psi, v=0.33, respectively. The applied load P is 60 Ib. Please answer = 60° B Ra all Cled URb The internal force for member AC is: -30 lb 34.6 lb 30 lb -34.6 lb Question 2 1 points Save Answer 1. The following...
pleas help me in this do any question you know using National Electrical Code 2011 Applied Electricity NEC...
pleas help me in this do any question you know using National
Electrical Code 2011
Applied Electricity NEC worksheet t hree Copper conductors with THHN insulation run in Electrical A branch-circuit Consther conductors. The conductor terminations are rated for a maximum ure in the area of this installation is not expected to exceed 30C size 8 AWG, the maximum ampacity of the conductors If the conductors for this circuit are permitted A 40 amperes. B. 50 amperes. to be used...
I need help to write a nice introduction for experiment 6 please ( no hands write ) typing Thank you HEAT TREATMENT OF STEELS EXPERIMENT 6 EXPERIMENT 6 HEAT TREATMENT OF STEELS THEORY The Ef...
I need help to write a nice introduction for experiment 6
please ( no hands write ) typing
Thank you
HEAT TREATMENT OF STEELS EXPERIMENT 6 EXPERIMENT 6 HEAT TREATMENT OF STEELS THEORY The Effect of Cooling Rate One of the most convenient methods for controlling the properties of a given steel, i.e., a steel whose composition is already fixed, consists of austenizing the steel and ten cooling to room temperature at some predetermined rate. A variation of cooling rates...
(a) Determine the maximum compressive and tensile normal
stresses in the A-36 structural steel beam shown and define their
locations (location along the beam and on the cross section). (b)
Determine the deflection of point B using the double
integration method. The height of the cross section shown (in the
y-direction) is 5 inches and width (in the
z-direction) is 10 inches, and the average thickness
throughout is 0.5 inches. (Use elastic properties for all
calculations)
ANSWER: (a) max tensile...
P = 20 kN. Calculate the following: 1. The maximum tensile and compressive stresses at the base of the mast A 2. The maximum tensile and compressive stresses at point B of the mast For each stress state at A and B indicate which side of the mast experiences tension and which side experiences compression. 0.25 m m D w 3 m H С. - 0.1 m mast cross section 3 m 60° Р B 584 mm 6 m mast...
1. For the overhanging beam in the figure below, determine the maximum shear stress, the maximum tensile stress, and the maximum compressive stress in the beam due to the loading shown. 300 lb/ft 6 in. 1 in. 4 ft 10 ft 1 in. 2 in. Section INSTRUCTIONS For PROBLEM do the following steps: 1. Show ALL your work 2. Draw appropriately labeled FBDs 3. Use appropriate segments to develop expressions for the shear force and bending moment. diagrams in a...
F13-4. The 2-Mg car is being towed by a winch. If the winch exerts a force of T = (100s) N on the cable, where s is the displacement of the car in meters, determine the speed of the car when s = 10 m, starting from rest. Neglect rolling resistance of the car. F13-4 A simple beam AB of span length L = 22 ft (Fig. 5-14a) supports a uniform load of Intensity 9 = 1.5 k/ft and a...
Project 2- Design of a Highway Crossover bridge Introduction: In this project you will design a precst pretensioned I girder bridge. Consider a crossover bridge on any state highway. Some details of the bridge is given. You will be respobsible for selecting the length, span length and width of the bridge as shown in the figure below. Girder length= L1 ft Span length - L2 ft Abut 2 Abut 1 Road Concrete barrier Bridge EB Bridge width= 12-0" 12-0" BB...
1. The following is a one-layer truss structure fabricated from aluminum tubing with outside diameter and wall thickness as 0.4 inch and 0.05 inch, respectively. The Young's modulus and Poisson's ratio for aluminum are E= 10 x 10°psi, v=0.33, respectively. The applied load P is 60 Ib. Please answer = 60° B Ra all Cled URb The internal force for member AC is: -30 lb 34.6 lb 30 lb -34.6 lb Question 2 1 points Save Answer 1. The following...
pleas help me in this do any question you know using National
Electrical Code 2011
Applied Electricity NEC worksheet t hree Copper conductors with THHN insulation run in Electrical A branch-circuit Consther conductors. The conductor terminations are rated for a maximum ure in the area of this installation is not expected to exceed 30C size 8 AWG, the maximum ampacity of the conductors If the conductors for this circuit are permitted A 40 amperes. B. 50 amperes. to be used...
I need help to write a nice introduction for experiment 6
please ( no hands write ) typing
Thank you
HEAT TREATMENT OF STEELS EXPERIMENT 6 EXPERIMENT 6 HEAT TREATMENT OF STEELS THEORY The Effect of Cooling Rate One of the most convenient methods for controlling the properties of a given steel, i.e., a steel whose composition is already fixed, consists of austenizing the steel and ten cooling to room temperature at some predetermined rate. A variation of cooling rates...
