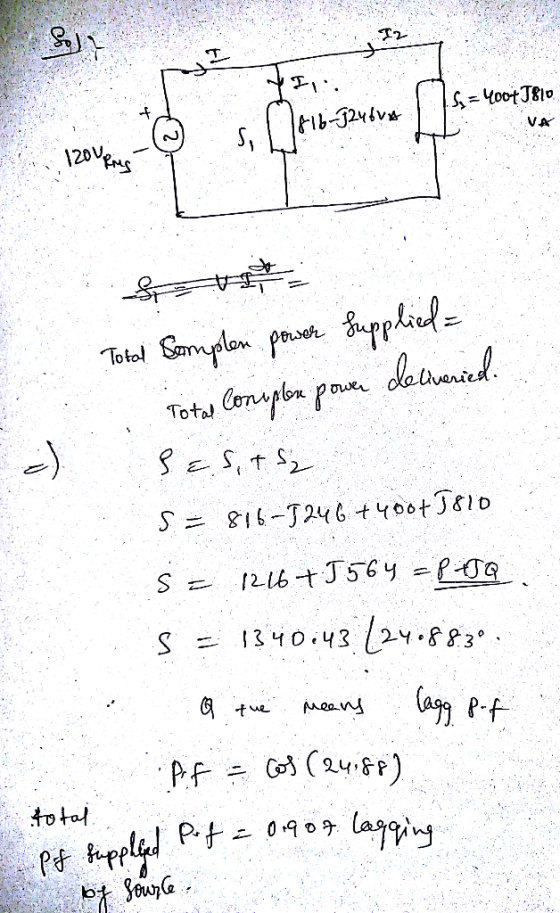

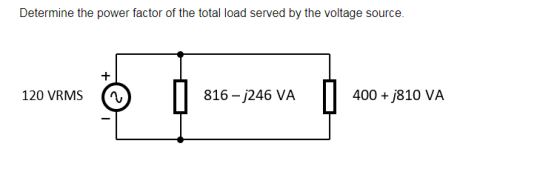

Determine the power factor of the total load served by the voltage source. 120 VRMS 816...
2. For the circuit of Fig. the source is sinusoid of 120 Vrms at a frequency of 60 Hz. The load resistor is 10 12. a) Draw the waveforms of source voltage, output voltage, output current, semiconductor device voltage and semiconductor device current. b) Calculate the average output voltage. c) Calculate the rms output voltage. d) Calculate the average output current. e) Calculate the power absorbed by the resistor. va + vs = Vm sin (@t) R Figure 1: Question...
clear handwrite and step by step solution please
thank you in advance
Q2. For the single-phase voltage controller of Fig. 2, the source is 120 Vrms at 60 Hz, andthe load is a series Rしcombination with R-20 Ω and L-50 mH. The delay angle α is 90°. Determine (a) an expression for load current for the first half-period, b) the rms loadcurrent, (c) the rms SCR current, (d) the average SCR current, (e) the power delivered tothe load, and (f)...
Name: Problem #1 Determine the complex power supplied by the source and the power factor of the delta- connected load with VRbase = 230 LO° Vrms, Zload = 20+ j40 (0). 0000 Vphase 1000W 0000 3 W 000
Q1)A half-wave rectifier has a 120 Vrms 60 HZ ac source. The load IS 50 W. Determine the value of a filter capacitor to keep the peak-to-peak nipple across the load to less than 1.5V. Seled the one best answer from the choices given below(a) 410 UF (d) 3270 uF (b) 820 UF (e) 6540 UFQ2)A diode whose internal resistance is 200 is to supply power to a 1000 load from 110V (rms) source pf supply. Calculate(a) peak load current...
A 67 Vrms source is placed across a load that consists of a 12 ohm resistor in series with an capacitor whose reactance is 5 ohms. Compute the following: a) The average power of the load b) The reactive power of the load c) The apparent power of the load d) The power factor of the load
(30) In the circuit with a voltage source and two loads below, find the following: 2. The complex power of each load a. b. The total complex power for the two loads - note units of power in the figure c. Sketch the triangle for the total complex power e total current from the source as a phasor assuming the line voltage at the load is 20820 VRMS The value of the parallel capacitance in parallel with the two loads...
A 60-Hz single-phase AC power network is shown in the figure below with four different loads. The source voltage ES-320 0. Prior to adding the capacitor load for power factor correction, the source current IS-135 30 . Determine the capacitance (in μF) of the capacitive load that will make the power factor unity (pf 1.0) of the system. Enter the one best answer (as a number without the units) from the following choices: Sync 74 % 6 15 kVA 10...
Problem 4: A plant consumes 20 kW of power. If the load power factor is 0.9 lagging, what is the angle by which the load current lags the load voltage? What is the load current, I, if the load voltage is 240/10° VrMS? Answers: 25.84,-92.59/-15.849 ARMS
A controlled full bridge recetifier
Ti Ty Ts T: Figure P5 A controlled full-wave bridge converter has a source of 120 Vrms at 60 Hz, R-25 Ω, L- 10 mH. Assuming that the load constant voltage source E = OV and the gate pulse firing angle is α-45°, determine whether the converter operates in the continuous (CCM) or discontinuous (DCM) conduction mode;
Ti Ty Ts T: Figure P5 A controlled full-wave bridge converter has a source of 120 Vrms at...
A 110-V rms,60-Hz source is applied to a load impedance Z The apparent power entering the load is 120 VA at a power factor of 0.507 lagging References eBook& Resources Learning Objective: Understand apparent power power and power factor Section Break Difficulty Medium value 10.00 points Calculate the complex The complex power is VA. Hints References eBook & Resources
