Heat Transfer problem:


7. Water at its saturation point at atmospheric pressure is heated in a small cylindrical copper tank that has a diameter of 15 cm. The bottom surface of the tank is kept at 115 °C A. what rate of energy addition to the bottom of the pan is needed to boil the water and maintain 115 °C? (w) B. What is the rate of evaporation of water from the pan? C. What fraction of the maximum heat flux for nucleate boiling is used at this surface temperature?

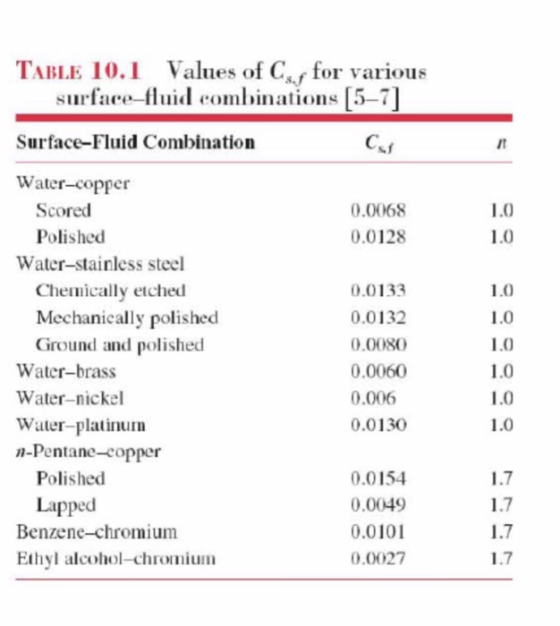

******Hint: You need to assume that the copper is either scored or polished to solve this problem.*******

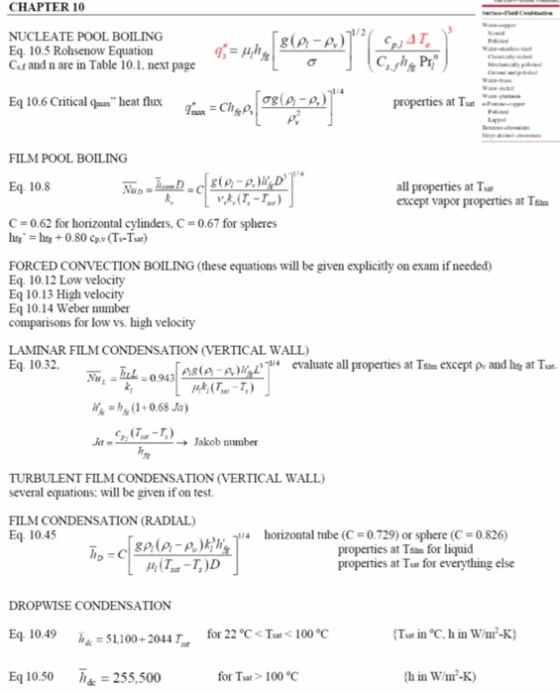

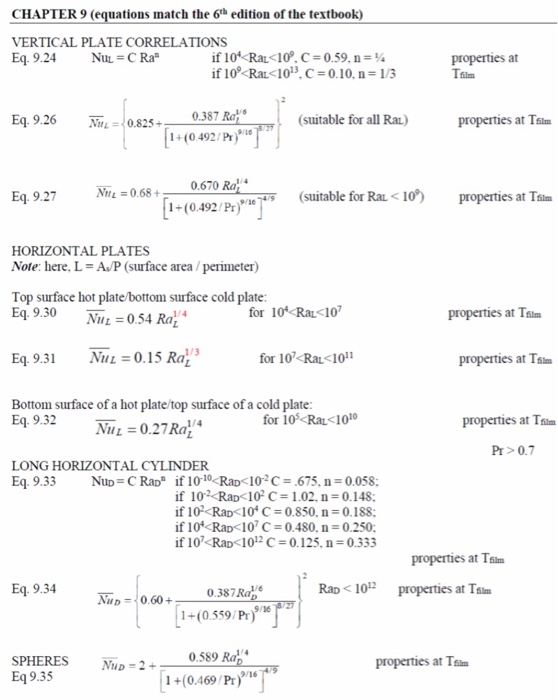

A summary of equations from chapters 9 & 10:



media%2Fb9e%2Fb9ec2368-a127-4979-a6b5-8b
media%2F1e6%2F1e6903fc-03d1-4842-8f26-8c
media%2F3b2%2F3b244679-2975-4f47-a7e0-64
engineering   Chemical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

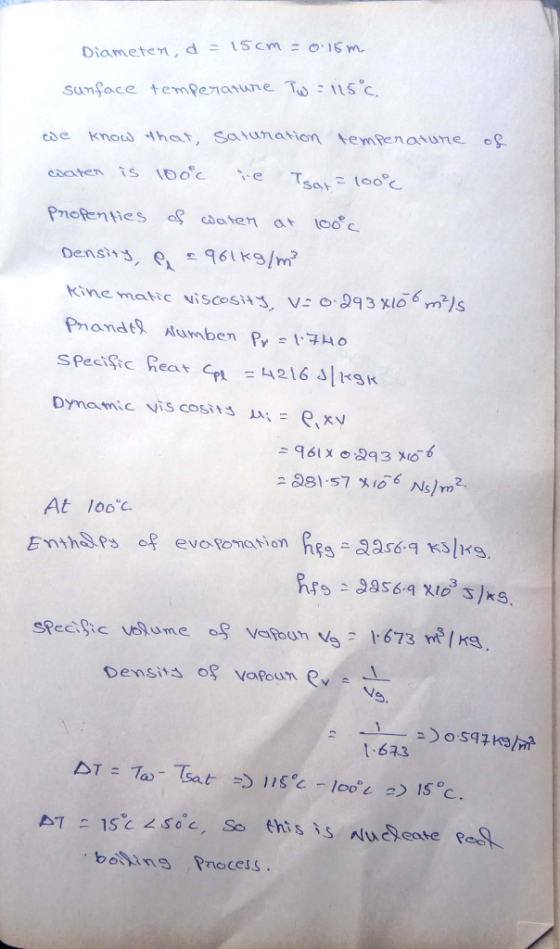

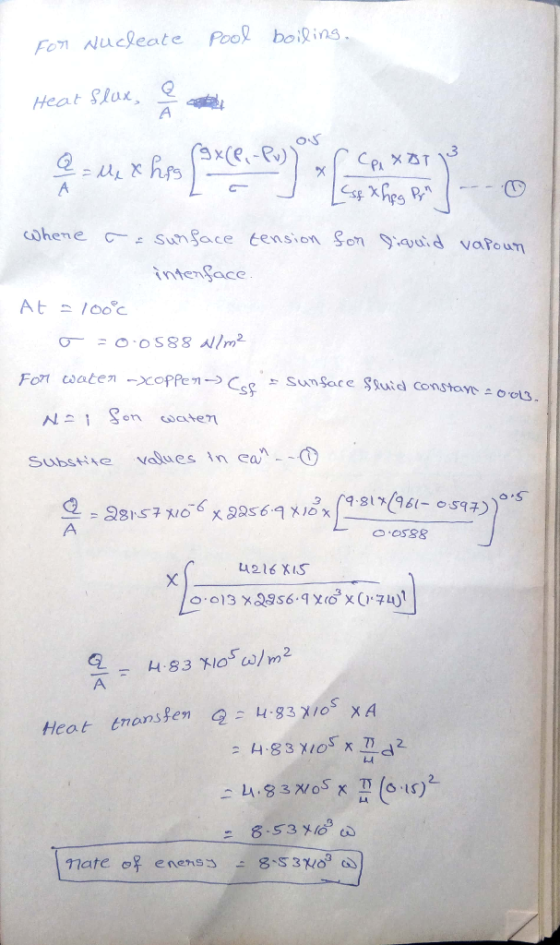

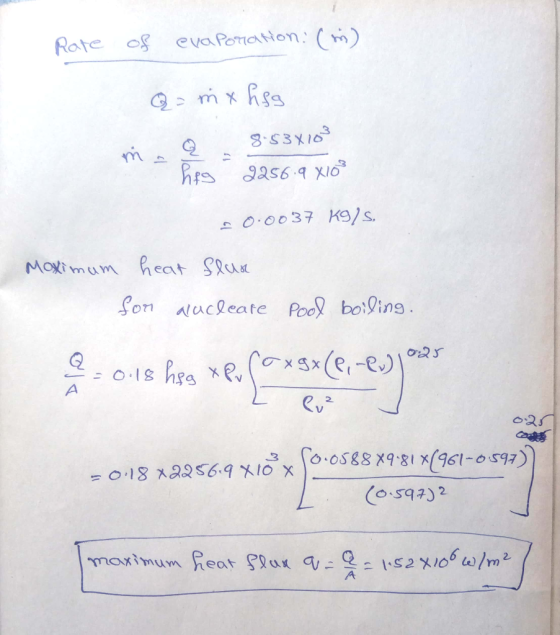

Density, a 961kg/㎡ kine matic vi scosi、3V-o-993x106 m2/s 、 Dynamic Viscosi t exv At 1oo c Ys. 1.643 boline PrIoces

0 0
