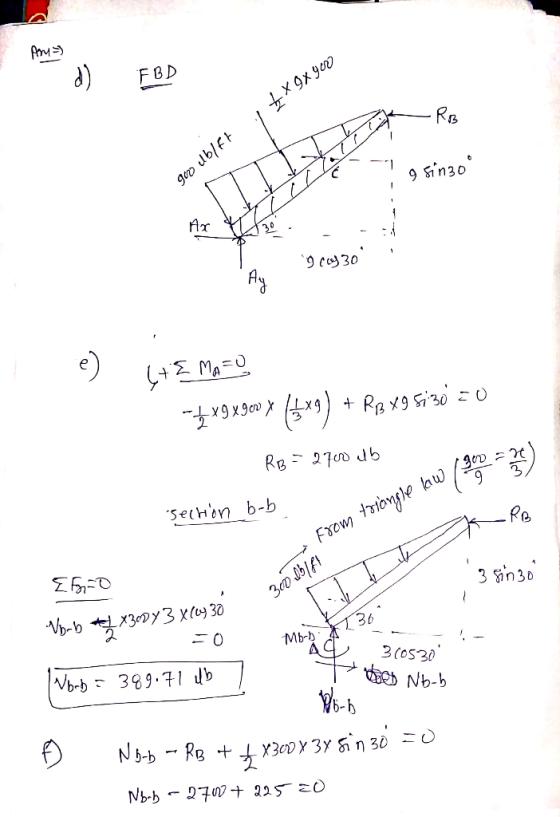

Question 3. Determine the resultant internal loadings acting on section b-b through the centroid C on...
Determine: -the resultant internal normal force acting on the cross section through point B of the...
Determine:
-the resultant internal normal force acting on the cross
section through point B of the signpost. The post is fixed to the
ground and a uniform pressure of 7 lb/ft^2 acts perpendicular to
the face of the sign.
-the resultant internal shear force acting on the cross
section through point B of the sign post.
-the resultant internal bending moment acting on the cross
section through point B of the signpost
-the resultant internal torsional moment acting on the...
Internal Loadings Group Work 27 EMCH 211 Name: GW 27-1: Internal Loadings Determine the resultant internal...
Internal Loadings Group Work 27 EMCH 211 Name: GW 27-1: Internal Loadings Determine the resultant internal normal force, shear force, and bending moment at point C Group Number:- in the beam. 3 m 2 m
Determine the resultant internal loadings acting on the cross section through point C. Assume the reactions at the supports A and B are vertical.
Determine the resultant internal loadings acting onthe cross section through point C. Assume the reactions atthe supports A and B are vertical.
If supports A and B have only vertical reaction. Determine the resultant internal loadings acting on...
If supports A and B have only
vertical reaction. Determine the resultant internal loadings acting
on the cross section at C of the beam shown in the figure.
).5 kN/m
For the beam given below, determine the resultant internal loading acting on the cross section at...
For the beam given below, determine the resultant internal loading acting on the cross section at C. Use the following assumption: The beam is weightless. Support A is a roller, and support B is a pin. The cross section C is 1 m away from A. (Tips: Internal loading includes normal force, shear force, and moment). . 100 kN 50 kN/m ol B 2m 1m 2m
The shaft is supported by a smooth thrust bearing at B and a journal bearing at C. Determine the resultant internal loadings acting on the cross section at E.
The shaft is supported by a smooth thrust bearing at Band a journal bearing at C. Determine the resultant internalloadings acting on the cross section at E.
The internal loadings at a section of the beam consist of a normal internal load of...
The internal loadings at a section of the beam consist of a normal internal load of 85.8 kip, an internal shear force of 153.9 kip, an internal bending moment about the horizontal axis of 26.6 lb-in, and an internal bending moment about the vertical axis of 40.9 lbin. If L = 11 in, what is the total shear stress (in ksi) at point A? Note: Your answer should include requested units and be to 3 decimal places. B M2 L/41...
To determine the reactive forces and moments acting on a beam;express the shear and bending...
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams. The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is fixed at
C. Determine the reactions at the support located at C. Then write
expressions for shear and bending moment as a function of their
positions...
Problem 4 (20 pts) oss section through point D of Determine the resultant internal loadings acting...
Problem 4 (20 pts) oss section through point D of Determine the resultant internal loadings acting on the cr member AB. 50 mm 50mm 300 mm 150 nm A D 70 N m 200 mm FBD
The hand crank that is used in a press has the dimensions shown. Determine the resultant internal loadings acting on the cross section at point AA if a vertical force of 5050 lb is applied to the handle as shown. Assume the crank is fixed to the shaft at
The hand crank that is used in a press has the dimensions shown. Determine the resultant internal loadings acting on the cross section at point A if a vertical force of 50 lb is applied to the handle as shown. Assume the crank is fixed to the shaft at B
Determine:
-the resultant internal normal force acting on the cross
section through point B of the signpost. The post is fixed to the
ground and a uniform pressure of 7 lb/ft^2 acts perpendicular to
the face of the sign.
-the resultant internal shear force acting on the cross
section through point B of the sign post.
-the resultant internal bending moment acting on the cross
section through point B of the signpost
-the resultant internal torsional moment acting on the...
Internal Loadings Group Work 27 EMCH 211 Name: GW 27-1: Internal Loadings Determine the resultant internal normal force, shear force, and bending moment at point C Group Number:- in the beam. 3 m 2 m
If supports A and B have only
vertical reaction. Determine the resultant internal loadings acting
on the cross section at C of the beam shown in the figure.
).5 kN/m
For the beam given below, determine the resultant internal loading acting on the cross section at C. Use the following assumption: The beam is weightless. Support A is a roller, and support B is a pin. The cross section C is 1 m away from A. (Tips: Internal loading includes normal force, shear force, and moment). . 100 kN 50 kN/m ol B 2m 1m 2m
The internal loadings at a section of the beam consist of a normal internal load of 85.8 kip, an internal shear force of 153.9 kip, an internal bending moment about the horizontal axis of 26.6 lb-in, and an internal bending moment about the vertical axis of 40.9 lbin. If L = 11 in, what is the total shear stress (in ksi) at point A? Note: Your answer should include requested units and be to 3 decimal places. B M2 L/41...
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams. The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is fixed at
C. Determine the reactions at the support located at C. Then write
expressions for shear and bending moment as a function of their
positions...
Problem 4 (20 pts) oss section through point D of Determine the resultant internal loadings acting on the cr member AB. 50 mm 50mm 300 mm 150 nm A D 70 N m 200 mm FBD
