A steel wire, of length L and diameter D, has a resistance of 100 Ω. What...

A steel wire, of length L and diameter D, has a resistance of 100 Ω. What current would flow through a silver wire of the same diameter and the same length if a 20.0 V potential difference were applied across its length?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

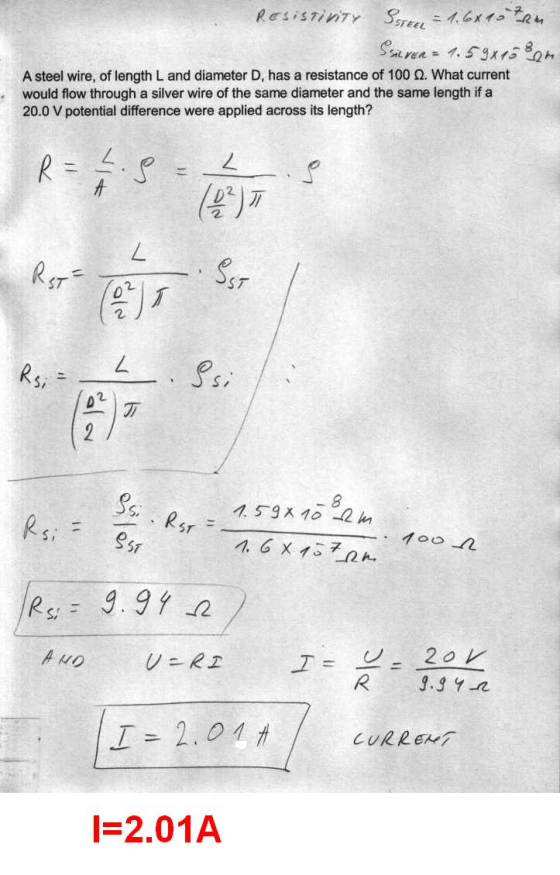

2 STEEL os1 ren = 1.53xf. 8@h A steel wire, of length L and diameter D, has a resistance of 100 ?. What current would flow through a silver wire of the same diameter and the same length if a 20.0 V potential difference were applied across its length? ? ? 2 ST 2 gs 2 S. R57 57 s9.91 2 I-2.01A

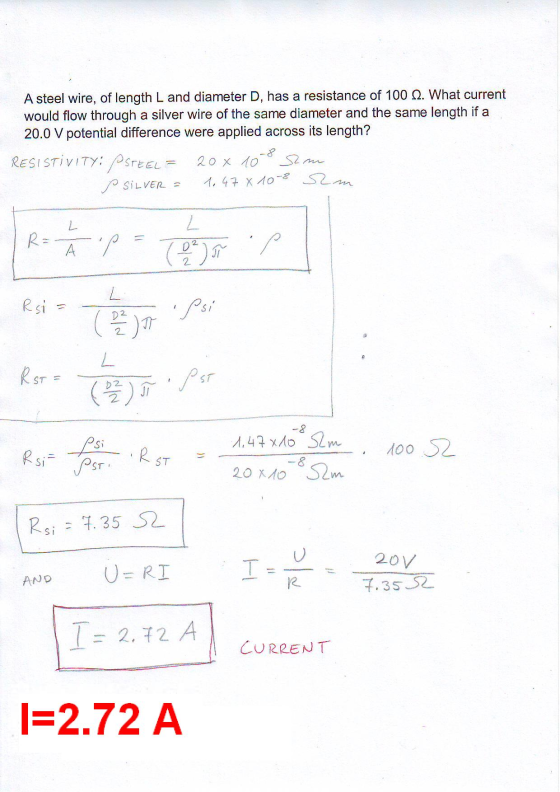

Updated solution that utilise additional information provided by student:

"“For silver its 1.47x10^-8, steel is 20x10^-8”"

0 0
Add a comment
Know the answer?
Add Answer to:
A steel wire, of length L and diameter D, has a resistance of 100 Ω. What...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • 3. a) A tungsten wire of length 20.0 m, initially at temperature 20.0°C, has a diameter...

    3. a) A tungsten wire of length 20.0 m, initially at temperature 20.0°C, has a diameter of 2.00 mm. The potential difference across the whole wire is 180 V. Determine the current intensity in the wire b) Due to ohmic losses, the wire is heated up to 60.0°C, but the potential difference through the wire remains the same. Find the resulting current intensity. Note: po = 5,6x10 82 m, a=4.5x10(°C)

  • A copper wire of cross-sectional area of 8.2x10^-7 m^2 has a resistance of 1.11 Ω. a)....

    A copper wire of cross-sectional area of 8.2x10^-7 m^2 has a resistance of 1.11 Ω. a). How long is the wire? b). If a potential of 12.0 V is applied across the ends of the wire, what current will flow through the wire? c). How much electrical power is supplied to the spool? d). How many electrons (N) pass through this wire in 1.00 minutes?

  • 1.  A wire of length L and cross-sectional area A has a resistance of 5 Ω. What...

    1.  A wire of length L and cross-sectional area A has a resistance of 5 Ω. What is the resistance if the same amount of material is used to make a wire triple as long? 2. What is the resistance of 15 m length of household no. 14 copper circular wire having a diameter of 1.6 mm? (Hint: the resistivity of copper – textbook, page 782)

  • A wire of length L and cross-sectional area A has a resistance of 5 Ω. What...

    A wire of length L and cross-sectional area A has a resistance of 5 Ω. What is the resistance if the same amount of material is used to make a wire triple as long?

  • (a) A lightbulb has a resistance of 165 Ω when operating with a potential difference of...

    (a) A lightbulb has a resistance of 165 Ω when operating with a potential difference of 115 V across it. What is the current in the lightbulb (in mA)? mA (b) What If? What would be the current in the lightbulb (in mA) if it were used in Japan, where the potential difference across it would be 100 V? mA

  • 1. A conductor made of Silver wire has a resistance of 1 Ω. What will be...

    1. A conductor made of Silver wire has a resistance of 1 Ω. What will be the resistance of a wire made of the alloy material Manganin which has one-third the length and one-third the diameter of the Silver wire? The resistivity of Manganin is 30 times that of silver (3 points)

  • A 14.0 gauge copper wire of diameter 1.628 mm carries a current of 15.0 mA Part...

    A 14.0 gauge copper wire of diameter 1.628 mm carries a current of 15.0 mA Part A What is the potential difference across a 2.25 m length of the wire? EVO AED ? V Submit Request Answer Part B What would the potential difference in part A be if the wire were silver instead of copper, but all else was the same? IVO AED h ? V Submit Request Answer

  • a.) A 33.9-m length of copper wire at 20.0°C has a radius of 0.31 mm. If...

    a.) A 33.9-m length of copper wire at 20.0°C has a radius of 0.31 mm. If a potential difference of 7.00 V is applied across the length of the wire, determine the current in the wire. b.) If the wire is heated to 40.0°C while the 7.00-V potential difference is maintained, what is the resulting current in the wire?

  • A 14.0 gauge copper wire of diameter 1.628 mm carries a current of 10.0 mA ....

    A 14.0 gauge copper wire of diameter 1.628 mm carries a current of 10.0 mA . a)What is the potential difference across a 2.00 m length of the wire? b)What would the potential difference in part A be if the wire were silver instead of copper, but all else was the same?

  • Consider a wire with resistivity, ρ = (2.20 ) × 10 –7 Ω∙m, a diameter, D...

    Consider a wire with resistivity, ρ = (2.20 ) × 10 –7 Ω∙m, a diameter, D = (1.50 ) mm, and a length, L = (23) m. Determine the current in amperes (A) that would flow through this resistor if it hooked up to a (10 ) V battery. Round your answer to two significant figures.
