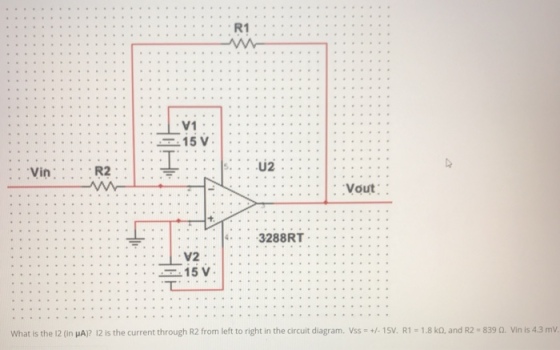

V1 :: VinR2 Vout E15 V... . What is the 12 (in HA)? 12 is the current through R2 from left to right in the circuit diagram. Vss+-15V. R1-1.8 k0, and R2 839 Q. Vin is 4.3 mV
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Request Professional Answer

Request Answer!

We need at least 10 more requests to produce the answer.

0 / 10 have requested this problem solution

The more requests, the faster the answer.

Request! (Login Required)

All students who have requested the answer will be notified once they are available.
Know the answer?
Add Answer to:
V1 :: VinR2 Vout E15 V... . What is the 12 (in HA)? 12 is the...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Similar Homework Help Questions

  • For the circuit shown, VIN 2 mV RI R3-60 k2, R2-R 60 k2, VDDP 12 V...

    For the circuit shown, VIN 2 mV RI R3-60 k2, R2-R 60 k2, VDDP 12 V and VDDN 12 V and the OPAMP is ideal and you notice there is negative feedback. VOUT R1 R2 R3 R4 iR11 (R2) iR1) fR21 - IN V3 (VIN) The relative tolerance for this problem is 1 % Get help: Written Example License Question 1. Points possible: 10 Unlimited attempts For the circuit shown. negative feedback. Vr.-2 mV RI-R3-2 kQ. R2_R4-120 kQ. VDDp-12 V...

  • V1 V2 R1 R5 Vout+ 15 100 V1 + R3 R4 5 470 220 R2 Vout-...

    V1 V2 R1 R5 Vout+ 15 100 V1 + R3 R4 5 470 220 R2 Vout- 220 1. Using circuit analysis techniques you learned in class, calculate the Thévenin voltage between the terminals Vout+ and Vout- in the above circuit. Using the zeroing method, calculate the Thévenin resistance of the above circuit as seen from the terminals Yout+ and Vout- What is the Norton (short circuit) current for the above circuit?

  • In the circuit, V1=129 V, V2=72 V, I0=2 A, R1=7 Ohm, R2=46 Ohm, R3=19 Ohm, R4=19...

    In the circuit, V1=129 V, V2=72 V, I0=2 A, R1=7 Ohm, R2=46 Ohm, R3=19 Ohm, R4=19 Ohm. Solve the circuit using nodal analysis and answer the questions below. Find the current through R1 flowing in the direction from left to right. (Unit: A) Find the current through R2 flowing downwards. (Unit: A) Find the current through R3 flowing downwards. (Unit: A) Find the current thrrough R4 flowing from left to right. (Unit: A) R1 R4

  • For the circuit shown below, design the values of R1 and R2 that will cause Vout-6 Vif VIv-9 V. If the resistors you chose have a tolerance of 1 %, what is the maximum and minimum values of Vout? Des...

    For the circuit shown below, design the values of R1 and R2 that will cause Vout-6 Vif VIv-9 V. If the resistors you chose have a tolerance of 1 %, what is the maximum and minimum values of Vout? Design R3 so that the LED will be properly lit, if IF=10 mA, VF-3 V and Vout-6 V Design equations from the data sheet: VOUT-1.25%(1+R2 R1) U1 OUT ININLT OUT R3 R1 V1 (R3) R1) ADJ LT317A D1 IN) R2 (R2)...

  • Given V1 = 1 Vpp, V2 = 4 Vpp, Vout = 0.82 Vpp and Rf =...

    Given V1 = 1 Vpp, V2 = 4 Vpp, Vout = 0.82 Vpp and Rf = 2 kq and that R1, R2 and R3 are all equal, find the value of R1 Input resistor R1 = R2 = R3 = ko. (Round your answer to 2 decimal places) RF Vout OA1 R1 Sm R2 + TL081 L 1 : v2 3 R3 Use phasor techniques to determine the current supplied by the source given that V = 12 <0° v,...

  • Please answer full question thoroughly (A & B) showing detailed work. Double check answer and work...

    Please answer full question thoroughly (A & B) showing detailed work. Double check answer and work to ensure it is correct for thumbs up Part A Part B Consider the following circuit of five resistors connected to a DC power supply set to 1.0V R1 R2 R3 V1 U 1V R4 R5 R1 0.05 ohms, R2 0.2 ohms, R3 99 ohms and R5 0.15 ohms. The voltage drop across R4 is 6 mV. Answer the following: What is the current...

  • 2. For the common-emitter amplifier. B= 50. Vcc=12 a) Draw small signal circuit b) Find vout/vin...

    2. For the common-emitter amplifier. B= 50. Vcc=12 a) Draw small signal circuit b) Find vout/vin Find Zin and Zou Vcc R1 27k R2 2.2k Zout Zin Vo 4 C1 16 BIG Q1 NPN V1 C2 V R3 15k RE 1.2k BIG

  • 3-F) b. Vout = 0.99 Vin 3-E) For the following circuit, with Ri 18 k2, R2...

    3-F) b. Vout = 0.99 Vin 3-E) For the following circuit, with Ri 18 k2, R2 15 k(2, R6 = 40 kQ, V,-10 V, and V,-7 V, find: 22 k2, R 30 k2, R4 20 kQ, Rs- a) the current through Ri, R3, & R6 b) the voltage across R2, R4, & Rs Rs V, 3-F) For the following circuit, what is Vout in terms of Vin for each case? a) R1-100 ?, R2-1 k(2, and R3 = 1.0 M(2...

  • please answer asap V1 = 8 (V) R1 = 8 (12) V2 = 26 (V) Problem...

    please answer asap V1 = 8 (V) R1 = 8 (12) V2 = 26 (V) Problem 1 Using Kirchhoff's rules in the circuit of image, V4 = 28 (V) V3 = 20 (V) A- Calculate the current in the circuit. B- Show the direction current in the circuit. C- Calculate the voltage across resistor R1 D- Calculate the power delivered to R2 E- After 15 minutes of working of circuit, how much energy is delivered to resistor Rı? R2 =...

  • For the circuit shown in the figure, If R1=512, R2=10N, R3=3N, V1= V1}V, V2=5V and V3=7V....

    For the circuit shown in the figure, If R1=512, R2=10N, R3=3N, V1= V1}V, V2=5V and V3=7V. What is the value of the current 11 (in A)? R1 -W R3 M + + V2 V. 3 R2 $ 12 13
