Shift Csl B << 1 Circular shift about B left by 1 bit Csr B >>...
|
Shift |
Csl |
B << 1 |
Circular shift about B left by 1 bit |
|
Csr |
B >> 1 |
Circular shift about B right by 1 bit |
Draw a block diagram for a 4-bit version of a shift unit that implements the shift operations
Homework Answers

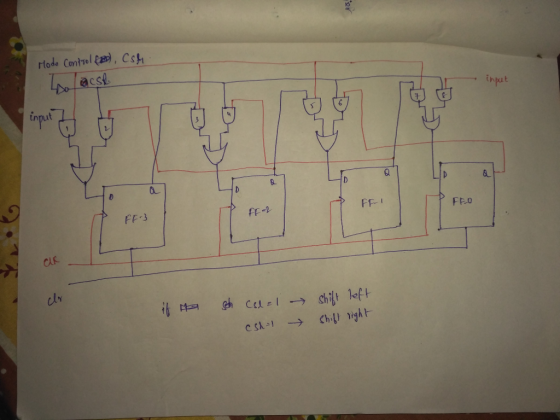

the 4 bits of B are given to the 4 flip flops previously by serial input.
if you have any doubts please comment!
Thank you!
