Question

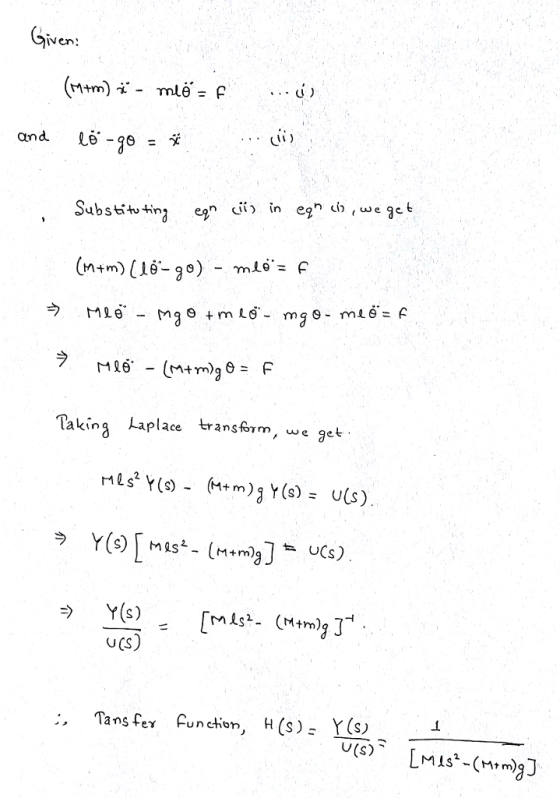

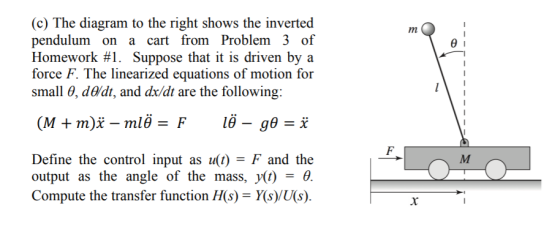

(c) The diagram to the right shows the inverted pendulum on a cart from Problem 3 of Homework #1. Suppose that it is driven by a force F. The linearized equations of motion fo small θ, dadt, and dx/dt are the following: Define the control input as ut)-F and the output as the angle of the mass, y(1) Compute the transfer function H(s) = Y(s)/US).

1 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
(c) The diagram to the right shows the inverted pendulum on a cart from Problem 3...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Problem 6 State space representation of motor - driven cart with inverted pendulum You are given...

    Problem 6 State space representation of motor - driven cart with inverted pendulum You are given that the cart carrying the inverted pendulum shown in the figure below is driven by an electric motor powering one pair of wheels so that the whole cart, pendulum and all, becomes the load on the motor. z is the cart position, M is its mass, θ is the pendulum angle with respect to the vertical, I its length, and m its mass. The...

  • Please be explicit, thank you! Prob 3 - Given the nonlinear state equations for the inverted...

    Please be explicit, thank you! Prob 3 - Given the nonlinear state equations for the inverted pendulum, mux" cos θ + m120" = mgl sin θ Compute the Jacobian matrixes for the equilibrium point (0,0,0,0-all states at zero and put into the form dx dt Define: Pendulum position, pendulum velocity, cart position, cart velocity are designated as X2-0' M10" = (M + m)g0-F, One form of the linearized model is

  • An inverted pendulum system is shown in Figure 1. It is assumed that the pendulum is...

    An inverted pendulum system is shown in Figure 1. It is assumed that the pendulum is a mass on a massless rod of length l-0.5 m and the mass on the tip of the rod, m1 kg. The mass of the cart M-5 kg. Assume also that there is no friction in the system The displacement of the cart is indicated by x and the displacement of the pendulum is shown as θ Figure 1. Inverted Pendulum on a cart...

  • Problem 2: The inverted pendulum, illustrated in Figure 1, is one of the most studied models...

    Problem 2: The inverted pendulum, illustrated in Figure 1, is one of the most studied models in dynamic and control courses given its simplicity despite its complex nonlinear behavior. It can be used to model tall buildings under seismic and wind motion, moving rockets, and satellites. The linearized (ie., approximated) equation of motion is given by: mg ml?.(t)- mgl.0(t) = T(t) where m, L, and g are constants representing the mass, length, and gravity: o denotes the angular position of...

  • Problem 2: Cart Standard Pendulum Model Consider the cart standard pendulum system shown in Figur...

    Problem 2: Cart Standard Pendulum Model Consider the cart standard pendulum system shown in Figure 1 with parameters given in Table 1 I C.8 I Ig Figure 1: Cart Standard Pendulum Schematic Syb Definition Unit Variablesr osition of the cart angle that the force applied on cart (control) mass of the cart mass ot t 123 lum makes with the vertic Parameters M5 kg utm 0.5 location of the c.g. of the pendulum above the 4 = m moment of...

  • Problem 3 (70 pts): Consider the mechanical system in Figure , the so-called "cart pendulum" system....

    Problem 3 (70 pts): Consider the mechanical system in Figure , the so-called "cart pendulum" system. The cart has a moving mass M, and is connected to a linear motor via a flexible coupling with stiffness K and damping B. An inverted pendulum of length1, negligible inertia and mass m is attached to the cart via a rotary actuator. If the pendulum damping coefficient is b, the linear actuator force is F and the rotary actuator torque is t 1)...

  • Solve parts a,b,c,d. Show matlab code and all steps. Show detailed explanation for part a The...

    Solve parts a,b,c,d. Show matlab code and all steps. Show detailed explanation for part a The differential equations describing the motion of the inverted stick on a cart as given in the figure below are: (M + m)X(t) + ml cos θ(t)-θ(t)-m1θ2 (t) sin θ(t)-F(t) m12 θ(t) + ml cos θ(t)-X(t)-mgl sin θ(t)-r(t) For the questions below, assume the control input torque τ(1) is not available (r(1-0) a. Explain how a constant equilibrium angle 6()-30 can be accomplished. b. Express...

  • A Pendulum with air resistance Pendula are widely used in applications including accelerometers and seismometers and...

    A Pendulum with air resistance Pendula are widely used in applications including accelerometers and seismometers and are a model system to study vibrations and damping. Consider a pendulum comprising a small mass m that is connected by a thin massless rod of length l to a hinged support The hinge is frictionless but the mass experiences air resistance as it swings. The air drag force on the mass is Fdrag-kv |v, where v is the velocity of the mass and...

  • Fig. 1 Fig. 2 2k 21 ne L/6 3k Fig. 3.a Fig. 3.b 1) Figure I...

    Fig. 1 Fig. 2 2k 21 ne L/6 3k Fig. 3.a Fig. 3.b 1) Figure I shows a drive train with a spur-gear pair. The first shaft turns N times faster than the second shaft. Develop a model of the system including the elasticity of the second shaft. Assume the first shaft is rigid, and neglect the gear and shaft masses. The input is the applied torque Th. The outputs are the angles & and 6. 2) Assume a small...

  • Problem 1 An inverted pendulum driven by a d-c motor is governed by the following differential...

    Problem 1 An inverted pendulum driven by a d-c motor is governed by the following differential and algcbraic equa tions: (a) Determine the transfer function of the process. (b) It is proposed to control the process using "proportional control": where yr is a constant reference value. Determine the value Kmir for which the gain K must exceed in order that the closed-loop system be stable. (c) Determine the value of K for which the magnitude of the error is less...
