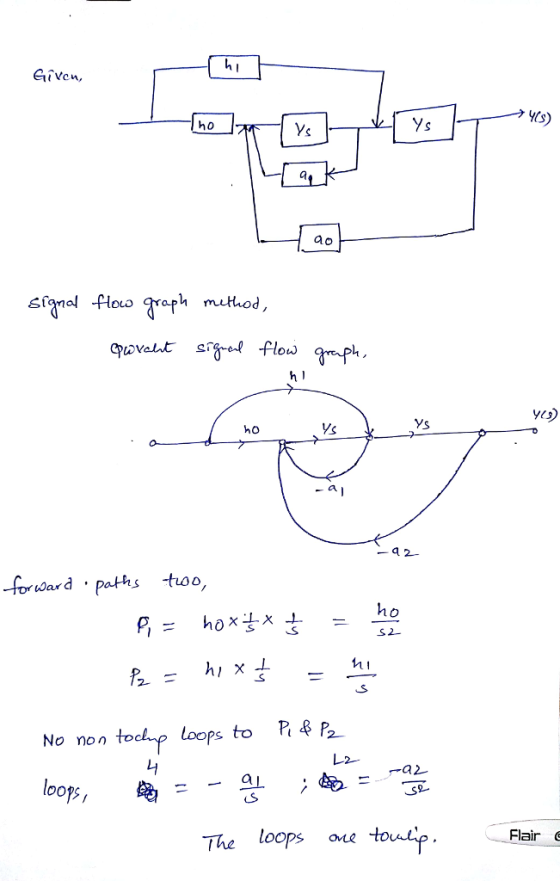

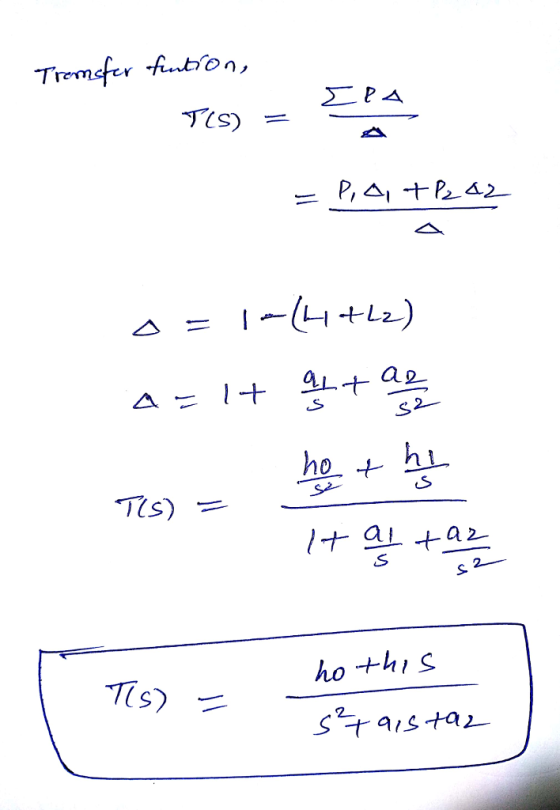

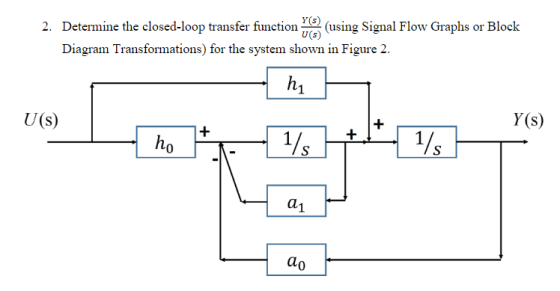

2. Determine the closed-loop transfer function Y (using Signal Flow Graphs or Block U(s) Diagram Transformations)...
PROBLEMS B-2-1. Simplify the block diagram shown in Figure 2-29 and obtain the closed-loop transfer function C(s)/RS). B-2-2. Simplify the block diagram shown in Figure 2-30 and obtain the closed-loop transfer function C(s)/R(s). B-2-3. Simplify the block diagram shown in Figure 2-31 and obtain the closed-loop transfer function C(s)/R(S). G1 R(S) CS) Figure 2-29 Block diagram of a system. Figure 2-30 Block diagram of a system. Figure 2-31 Block diagram of a system.
1) Write a Matlab program for the following block diagram: a) to derive its closed-loop transfer function. b) to find and plot the poles-zeros of closed-loop transfer function. s+2s+3 R(s) → Y(s) 2s+3 2 +2s +5 15 Automatic Control Systen
1) Write a Matlab program for the following block diagram: a) to derive its closed-loop transfer function. b) to find and plot the poles-zeros of closed-loop transfer function. s+2s+3 R(s) → Y(s) 2s+3 2 +2s +5 15 Automatic Control Systen
Question 2 Figure 2 represents block diagram and signal flow chart which are commonly used in the industry to represent systems. (a) Determine the closed loop transfer function using block reduction method. (8 marks) (8 marks) (b) Using Mason's rule, determine the closed loop transfer function. (c) Comment your results found in part 2a and 2b. (4 marks) R(s) + Vi(s) V2() V3 (8) V4(s) + V:(s) C(s) G(S) Gz() G3(s) V-(8) H2(S) Hz(5) V (5) H (8) Figure 2
Ex. 192. Refer to the system in Fig. 192
Determine the closed loop transfer function C/R = (As+B)/(s+D) where
G1=41, G2=1/(s+30), G3=17. Determine A,B,D. ans:3
Figure 192 G1 - G2 --) R (s) C(s) BLOCK DIAGRAM R 1 G1 G2 C SIGNAL-FLOW GRAPH -G3
Simplify the following block diagram. Obtain the transfer function from R to C for Fig. 1,
and the transfer function from X(s) to Y(s) for Fig. 2.Convert the block diagram of figures 1 and 2 to a signal flow graph.Below are the diagrams:
1. Simplify the block diagram shown in the figure below. Then, obtain the closed-loop transfer function C(s) /R(s). Hi R(s) G1 Gix 1 C(s) H2 H3
Consider the block diagram in figure 2 a. Hy R(s) GI G G3 +1 Figure 2 Convert figure 2 to signal flow graph. Using your result in Q5ali), determine the transfer function using the Mason's gain (2marks) formula.
Consider the block diagram in figure 2 a. Hy R(s) GI G G3 +1 Figure 2 Convert figure 2 to signal flow graph. Using your result in Q5ali), determine the transfer function using the Mason's gain (2marks) formula.
Consider the closed loop system defined by the following block diagram. a) Compute the transfer function E(s)/R(s). b) Determine the steady state error for a unit-step 1. Controller ant Itly Ro- +- HI- 4단Toy , c) d) e) reference input signal. Determine the steady state error response for a unit-ramp reference input signal. Determine the locations of the closed loop poles of the system. Select system parameters kp and ki in terms of k so that damping coefficient V2/2 and...
(a) (i) Show that the sensitivity of the closed-loop transfer function T(s) to variations in the plant transfer function G(s), in figure 4, is given by 1 SI - SG = 1+G(s)H(s) (ii) If G(s) = and H(s) = 10 (figure 4) and the dc gain of the plant transfer function G(s) changes by 1%, what is the corresponding change in the dc gain of the closed-loop system? [40%] (b) A feedback system is to control output angular position 0....
Q2. (a)Figure Q2(a) shows the block diagram of a system network. Determine the (7 marks) closed-loop transfer function T(s) C(s)/R(s). Cts) Ris) + Figure Q2(a)
