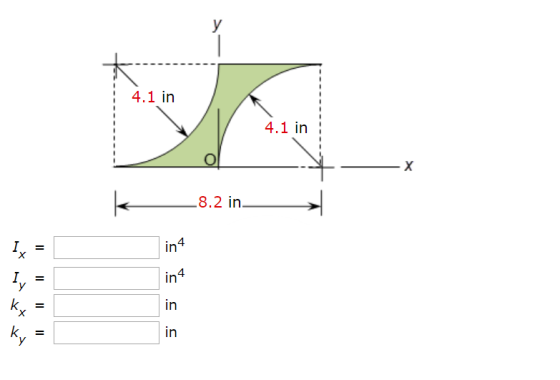

Determine the second moments of area in in4 and the
radii of gyration in inches for the shaded (green) area with
respect to the x- and y-axes. [You can form this
shape with a rectangle with two quarter circles removed, one from
the upper left corner and one from the lower right
corner.]
Homework Answers
Feel free to ask any question but remember to rate the answer

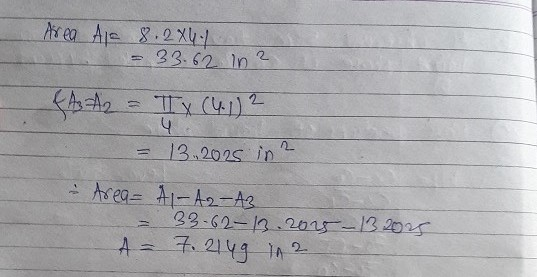

Note- Here, in the answer, there is a value 0.0548 which is present in the standard formula for solving these type of shapes. It is the standard value.
