Add Answer to:
3 and 4

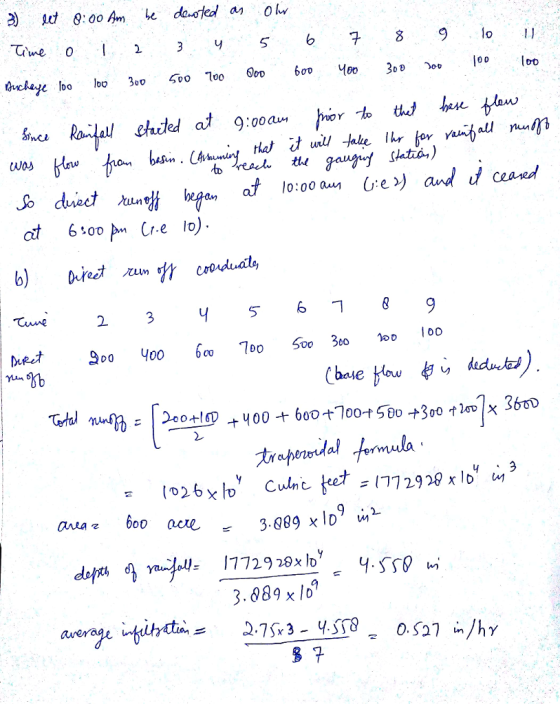

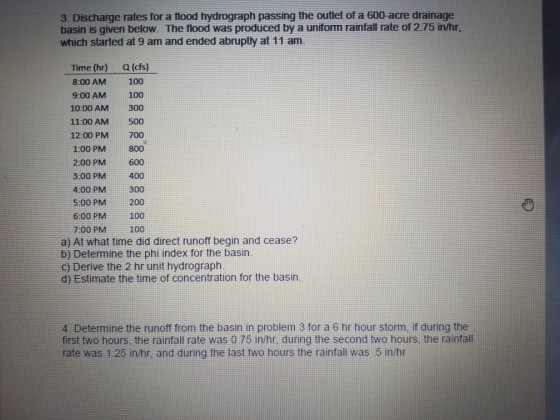

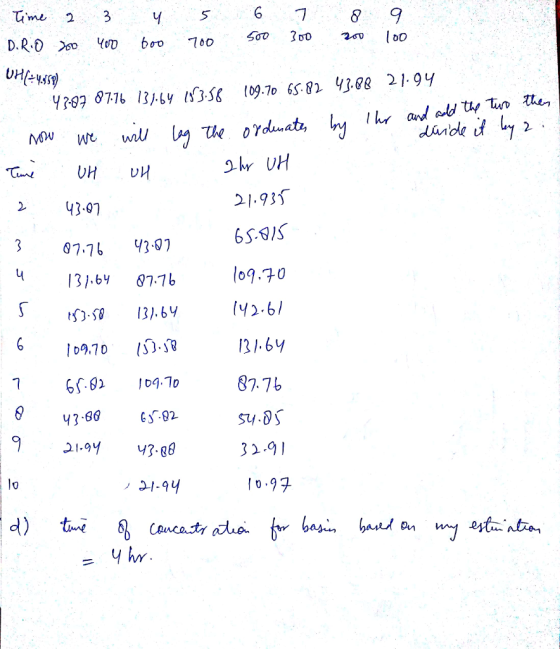

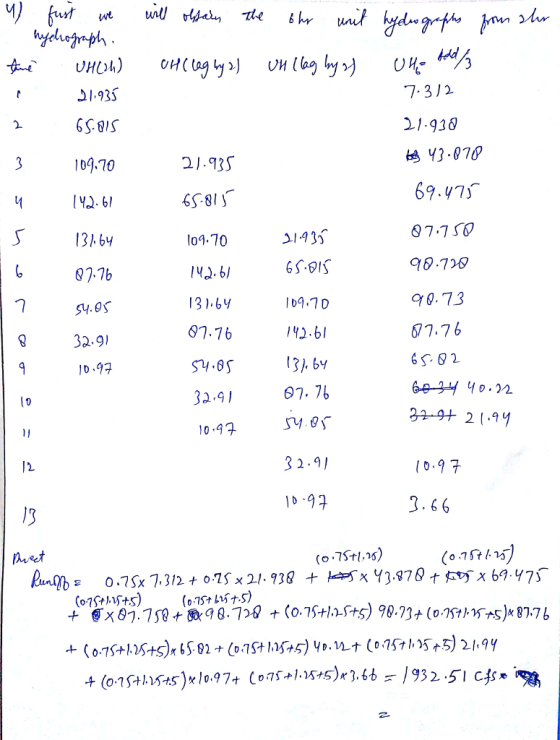

3. Discharge rates for a flood hydrograph passing the outlet of a 600-acre...
Storm data were collected for a 810-acre basin. Approximations for the wadi-flow, rainfall and runoff cumulative...
Storm data were collected for a 810-acre basin. Approximations for the wadi-flow, rainfall and runoff cumulative mass curves are shown in the following figure. 5.00 500 485 4.75 450 445 4.50 4.25 4.00 425 Cumulated DRO -Cumulated gross rainfall Wadi-flow 400 3.75 3.50 350 3.25 315 3.00 295 300 2.75 Cumulated Gross rainfall and DRO in inches 2.50 250 Wadi flow (cfs) 2.25 215 2.00 200 1.75 1.50 155 150 140 1.25 1.00 100 90 0.75 75 0.50 55 50...
2. Two tipping bucket rain gauges (in the same basin) are used to collect the following...
2. Two tipping bucket rain gauges (in the same basin) are used to collect the following rainfall data in the table below a. Calculate the mean daily rainfall intensity for each station (mm/hr) b. Calculate the maximum 2-hour intensity for each station (mm/hr). c. Calculate the maximum 6-hour rainfall intensity for each station (mm/hr) d. Using the arithmetic mean method and knowing the drainage basin area is 176 mi' (square miles), calculate the total volume of rainfall (m) delivered to...
USING KIRPICH METHOD IN DETERMINING TIME OF CONCENTRATION: L 1.15 tc 51H0.385 Where: . L S...
USING KIRPICH METHOD IN DETERMINING TIME OF CONCENTRATION: L 1.15 tc 51H0.385 Where: . L S H Time of concentration (minutes) Length of watercourse (m) Average basin slope (S=HL) Difference in elevation (m) i = 5.41270.1614 (10)(1+0.56)0.936 where: i = rainfall intensity(mm/h) T = Return period (years) D = rainfall duration, tc (hours) Storm water quantity can be estimated by this method. Q=C.I.A / 360 Where, Q = quantity of storm water, m3/sec C= coefficient of runoff I = intensity...
Problem 2 A rectangular 3-acre lot is being developed into multifamily housing. Can this plot of land be considered a watershed? Why or why not? Problem 3 Three centimeters of water evaporated fro...
Problem 2 A rectangular 3-acre lot is being developed into multifamily housing. Can this plot of land be considered a watershed? Why or why not? Problem 3 Three centimeters of water evaporated from a 200-hectare vertical walled reservoir during 24 hours. Storm water was added to the reservoir at a constant rate of 3 ms during this period. Determine the volume in ha-cm of water released during the period (through the bottom of the reservoir) if the water level in...
3. Storm total interception can be estimated from the equation: Data for two 2017 Sacramento storms...
3. Storm total interception can be estimated from the equation: Data for two 2017 Sacramento storms are provided below. Storm A Rainfall (inches) Time 1:00:00 AM 0.11 Storm E Rainfal inches) 0.02 Time 11:00:00 AM 12:00:00 PM 1:00:00 PM 2:00:00 PM 3:00:00 PM 4:00:00 PM 5:00:00 PM 0.13 0.19 0.09 0.05 0.01 Calculate Lifor the two storms. Assume that S 0.05 inches and K 3. Use a daytime evaporation rate of o.o1 inches/hour. Assume that there is negligible evaporation at...
2. [10 points] Determine the 4-hr unit hydrograph using the following data for a watershed having...
2. [10 points] Determine the 4-hr unit hydrograph using the following data for a watershed having a drainage area of 200 km, assuming a constant rainfall abstraction rate of 1 cm per time period and a constant baseflow of 20 m3's. The ordinates of the unit hydrograph are in units of m s cm Four-hour period | 1 | 2-1 3 i 41 5 6 7 8 9 10| 11 Rainfall (cm) Streamflow (m s) 20 35 60 95 130...
ull peal - OX Share Comments AutoSave Off 2 0 - Quiz 3_2 (1) - Compatibility...
ull peal - OX Share Comments AutoSave Off 2 0 - Quiz 3_2 (1) - Compatibility Mode - Word Search File Home Insert Design Layout References Mailings Review View Help Times New Rom 12 AA Aa A Eva EE 7 AL | Paste BI U veb xx? APA SIE DI La АаВЬСc) АаВЬСcІ Аавьсс Аавьссс Аав — Heading 1 1 Normal 1 No Spac.. Heading 2 Title sinca nasce Aabe Find Sc Replace h Select Dictate Sensitivity Editor Clipboard Font...
Please Hw2 question asap A rainfall with a duration of 3 hrs on a 73.6 Square...
Please Hw2 question asap
A rainfall with a duration of 3 hrs on a 73.6 Square mile (190.8 square km) catchment Resulted in the following Runoff hydrograph. US UHG SIUHG Runoff hydrograph And UHG for 3-hr Storm 0.0 529.5 706.0 0.0 689.3 919.1 2527.4 232 3676.2 41.0 2757.2 307 2205.7 1470.5 16.4 919.1 689.3 0.0 15 7.7 2824.0 15 24.6 21 1129.6 706.0 529.5 0.0 12178.5 ftA3/s 1.32E+08 32 20 15 7.7 0.0 30 0.0 345.0 mA3/s 3.73E+06 DRV> 73.7...
Can you please show work for both questions 3 and 4 3. A soil has the...
Can you please show work for both questions 3 and 4
3. A soil has the following Horton parameters: fo- 2.0 cm/hr, fe 1.0 cm/hr, k -0.60 1/hr. If a constant intensity rainfall of 1.5 cm/hr falls for 5 hours, model the infiltration rate (f) and cumulative infiltration (F) as a function of time for the entire storm. Use 0.25 hour time increment. Your solution should include the following [35 points: a. A graph of infiltration rate vs. time for...
3. A soil has the following Horton parameters: fo- 2.0 cm/hr, fe 1.0 cm/hr, k -0.60...
3. A soil has the following Horton parameters: fo- 2.0 cm/hr, fe 1.0 cm/hr, k -0.60 1/hr. If a constant intensity rainfall of 1.5 cm/hr falls for 5 hours, model the infiltration rate (f) and cumulative infiltration (F) as a function of time for the entire storm. Use 0.25 hour time increment. Your solution should include the following [35 points: a. A graph of infiltration rate vs. time for zero to five hours. b. A graph of cumulative infiltration vs....
Storm data were collected for a 810-acre basin. Approximations for the wadi-flow, rainfall and runoff cumulative mass curves are shown in the following figure. 5.00 500 485 4.75 450 445 4.50 4.25 4.00 425 Cumulated DRO -Cumulated gross rainfall Wadi-flow 400 3.75 3.50 350 3.25 315 3.00 295 300 2.75 Cumulated Gross rainfall and DRO in inches 2.50 250 Wadi flow (cfs) 2.25 215 2.00 200 1.75 1.50 155 150 140 1.25 1.00 100 90 0.75 75 0.50 55 50...
2. Two tipping bucket rain gauges (in the same basin) are used to collect the following rainfall data in the table below a. Calculate the mean daily rainfall intensity for each station (mm/hr) b. Calculate the maximum 2-hour intensity for each station (mm/hr). c. Calculate the maximum 6-hour rainfall intensity for each station (mm/hr) d. Using the arithmetic mean method and knowing the drainage basin area is 176 mi' (square miles), calculate the total volume of rainfall (m) delivered to...
USING KIRPICH METHOD IN DETERMINING TIME OF CONCENTRATION: L 1.15 tc 51H0.385 Where: . L S H Time of concentration (minutes) Length of watercourse (m) Average basin slope (S=HL) Difference in elevation (m) i = 5.41270.1614 (10)(1+0.56)0.936 where: i = rainfall intensity(mm/h) T = Return period (years) D = rainfall duration, tc (hours) Storm water quantity can be estimated by this method. Q=C.I.A / 360 Where, Q = quantity of storm water, m3/sec C= coefficient of runoff I = intensity...
Problem 2 A rectangular 3-acre lot is being developed into multifamily housing. Can this plot of land be considered a watershed? Why or why not? Problem 3 Three centimeters of water evaporated from a 200-hectare vertical walled reservoir during 24 hours. Storm water was added to the reservoir at a constant rate of 3 ms during this period. Determine the volume in ha-cm of water released during the period (through the bottom of the reservoir) if the water level in...
3. Storm total interception can be estimated from the equation: Data for two 2017 Sacramento storms are provided below. Storm A Rainfall (inches) Time 1:00:00 AM 0.11 Storm E Rainfal inches) 0.02 Time 11:00:00 AM 12:00:00 PM 1:00:00 PM 2:00:00 PM 3:00:00 PM 4:00:00 PM 5:00:00 PM 0.13 0.19 0.09 0.05 0.01 Calculate Lifor the two storms. Assume that S 0.05 inches and K 3. Use a daytime evaporation rate of o.o1 inches/hour. Assume that there is negligible evaporation at...
2. [10 points] Determine the 4-hr unit hydrograph using the following data for a watershed having a drainage area of 200 km, assuming a constant rainfall abstraction rate of 1 cm per time period and a constant baseflow of 20 m3's. The ordinates of the unit hydrograph are in units of m s cm Four-hour period | 1 | 2-1 3 i 41 5 6 7 8 9 10| 11 Rainfall (cm) Streamflow (m s) 20 35 60 95 130...
ull peal - OX Share Comments AutoSave Off 2 0 - Quiz 3_2 (1) - Compatibility Mode - Word Search File Home Insert Design Layout References Mailings Review View Help Times New Rom 12 AA Aa A Eva EE 7 AL | Paste BI U veb xx? APA SIE DI La АаВЬСc) АаВЬСcІ Аавьсс Аавьссс Аав — Heading 1 1 Normal 1 No Spac.. Heading 2 Title sinca nasce Aabe Find Sc Replace h Select Dictate Sensitivity Editor Clipboard Font...
Please Hw2 question asap
A rainfall with a duration of 3 hrs on a 73.6 Square mile (190.8 square km) catchment Resulted in the following Runoff hydrograph. US UHG SIUHG Runoff hydrograph And UHG for 3-hr Storm 0.0 529.5 706.0 0.0 689.3 919.1 2527.4 232 3676.2 41.0 2757.2 307 2205.7 1470.5 16.4 919.1 689.3 0.0 15 7.7 2824.0 15 24.6 21 1129.6 706.0 529.5 0.0 12178.5 ftA3/s 1.32E+08 32 20 15 7.7 0.0 30 0.0 345.0 mA3/s 3.73E+06 DRV> 73.7...
Can you please show work for both questions 3 and 4
3. A soil has the following Horton parameters: fo- 2.0 cm/hr, fe 1.0 cm/hr, k -0.60 1/hr. If a constant intensity rainfall of 1.5 cm/hr falls for 5 hours, model the infiltration rate (f) and cumulative infiltration (F) as a function of time for the entire storm. Use 0.25 hour time increment. Your solution should include the following [35 points: a. A graph of infiltration rate vs. time for...
3. A soil has the following Horton parameters: fo- 2.0 cm/hr, fe 1.0 cm/hr, k -0.60 1/hr. If a constant intensity rainfall of 1.5 cm/hr falls for 5 hours, model the infiltration rate (f) and cumulative infiltration (F) as a function of time for the entire storm. Use 0.25 hour time increment. Your solution should include the following [35 points: a. A graph of infiltration rate vs. time for zero to five hours. b. A graph of cumulative infiltration vs....
