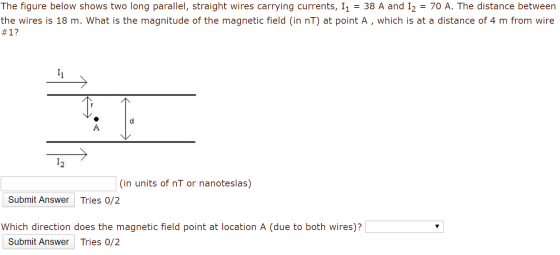

The figure below shows two long parallel, straight wires carrying currents, I1 = 38 A and I2 = 70 A. The distance between the wires is 18 m. What is the magnitude of the magnetic field (in nT) at point A , which is at a distance of 4 m from wire #1?
Homework Answers

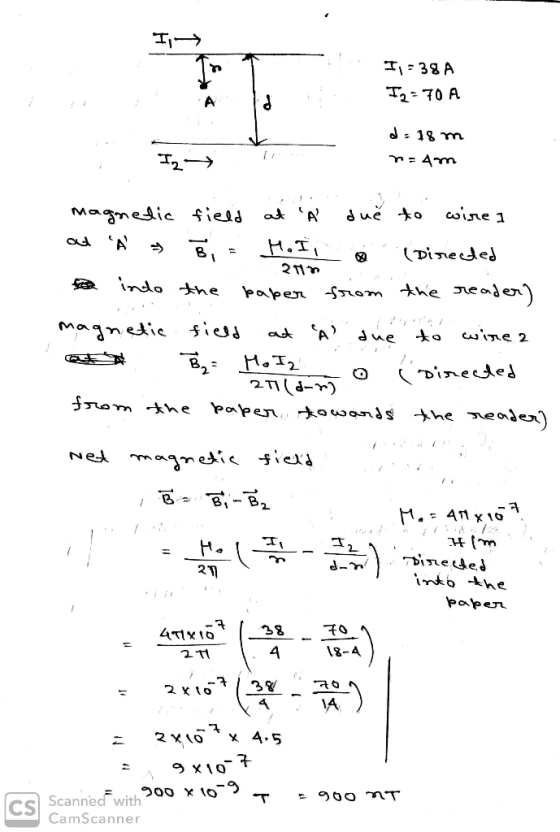

![I,-38 A I2 = 70A 12+ d = 18 m n=4m 211n magnetic field at due to wire ] ad À ē; - Holi (Directed to indo the paper from th](http://img.homeworklib.com/questions/2c322a10-c550-11eb-90eb-43d6a5c732b4.png?x-oss-process=image/resize,w_560)
