Question
will the answer be the same if it was in enhacement mode??

please explain

first image is QUESTION
second image is ANSWER

The gate-to-source voltage of the depletion-mode, n-channel MOSFET shown in the circuit below is 1 V. The various operating r

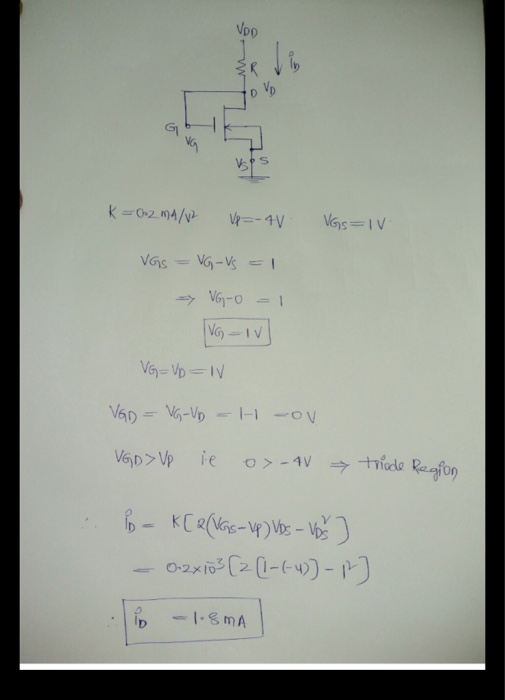

Voo DVD G K = 0.2 mA/v2 VP = -4V VGs=1 VGS VG - Vs = 1 => VG-o VG-IV VG=VD = IV VGD = VG-VD -H-ov VGD > VP ie O>-4V triode Re

just answer and explain my QUESTION i asked..
0 0
Add a comment Improve this question Transcribed image text
Answer #1

If the MOSFET is n channel Enhancement type, all other parameters remain saame but the only difference is the sign of treshold voltage Vp.

In case of Depletion mode n channel MOSFET the treshold value will be negative because

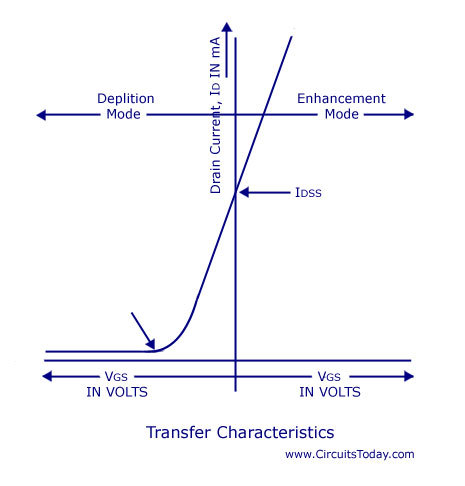

Deplition Mode Drain Current, ID IN MA Enhancement Mode IDSS VGS IN VOLTS VGS IN VOLTS Transfer Characteristics www.Circuits

( CIrcuit Reference : Circuits today)

But in case of Enhancement Type nchannel MOSFET the treshold Vp ( or VGST ) will be positive because

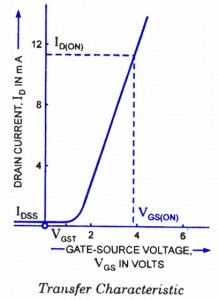

12 !DON) DRAIN CURRENT, ID IN MA VGSON) loss Vost 2 6 -GATE-SOURCE VOLTAGE- Vas IN VOLTS Transfer Characteristic

So instead of Id = 1.8mA it's value will be 0.8mA on considering Vp (or treshold voltage) as 4V (instead of -4V)

Add a comment
