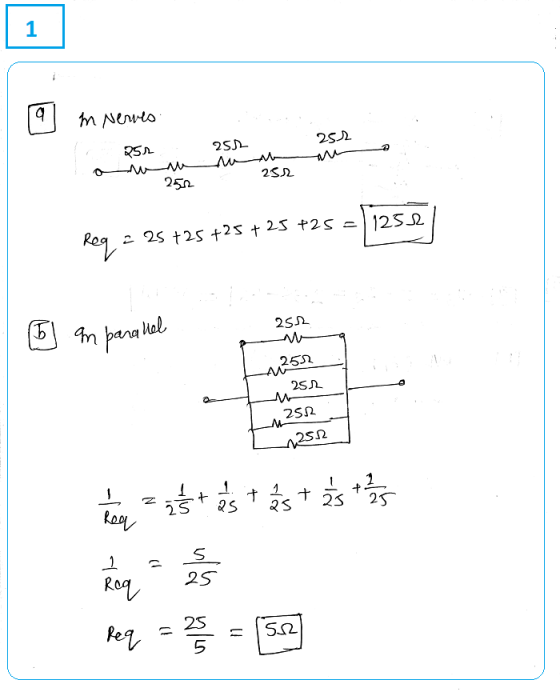

![1 a In Newes 251 252 251 num 252 252 Req 225 +25 +25+25 +25=1252 251 [I] In paralel 2512 251 M 25.2. M 112512 1. t 1 Rea 1 25](http://img.homeworklib.com/questions/1a98b350-c585-11eb-8edc-b193db20cc2d.png?x-oss-process=image/resize,w_560)
Please rate
if any mistake in this answer please comment i will clarify your doubt . thank you
Add Answer to:
please solve asap
SERIES OF EXERCISES EXERCISE 1: What is the total resistance of five 2512...
Learning Goal: To learn to calculate the equivalent resistance of the circuits combining series and parallel...
Learning Goal:
To learn to calculate the equivalent resistance of the circuits
combining series and parallel connections.
Resistors are often connected to each other in electric
circuits. Finding the equivalent resistanceof
combinations of resistors is a common and important task.
Equivalent resistance is defined as the single resistance that can
replace the given combination of resistors in such a manner that
the currents in the rest of the circuit do not change.
Finding the equivalent resistance is relatively straighforward if...
Can someone please check my sig figs and answers? i have two different answers for the last quest...
can someone please
check my sig figs and answers? i have two different answers for the
last question but they are off by .40. thank you!
A student set up the circuit shown to the right. Please use R1-2.00 ohms, R2-4.00 ohms, R3 -3.00 ohms, R 1.00 ohms, Rs 5.00 ohms, and a power supply setting of 6.00 volts. (a) Write the symbolic expressionoW Power Supply calculating the effective resistance of two resistors, R4 and Rs, in parallel. (b) Write...
Need help with conclusion questions please 1. The objectives of this lab are (1) to determine...
Need help with conclusion questions please
1. The objectives of this lab are (1) to determine the actual (A) total resistance of three resistors connected in series and compare it with the experimental (E ) value of total resistance (2) to determine the actual (A) total resistance of three resistors connected in parallel and compare it with the experimental(E ) value of total resistance II. Apparatus(Equipment): Voltage source, ammeter that measures current , voltmeter that measures voltage. II. Procedure: Three...
3. Calculate the total resistance and total current in the two circuits pictured below a) Series...
3. Calculate the total resistance and total current in the two circuits pictured below a) Series circuit (allaboutcircuits.com): Series Power source 120 V Each resistance (R1,R2, R3) Total resistance Total current Ri 2 25 Ω 4. 3
What is the total Resistance of a circuit consisting of three resistors in a parallel Configuration?...
What is the total Resistance of a circuit consisting of three resistors in a parallel Configuration? The resistors have the following resistance: R1= 10 ohms, R2 = 20 ohms and R3= 30 ohms?
QUESTION 11 The total resistors in a series configuration is the sum of the resistance levels....
QUESTION 11 The total resistors in a series configuration is the sum of the resistance levels. True False 2 points QUESTION 12 In a series combination circuit, a. the current is the same at every point. b. the voltage is the same at every point. c. None of the above 3 points QUESTION 13 Find the total resistance, RT of the series resistors R1 = 20 Ω, R2 = 100 Ω, R3 = 25 kΩ, and R4 =...
Can I please get all the questions answered. Quiz When multiple resistors are connected in series...
Can I please get all the questions answered.
Quiz When multiple resistors are connected in series they have the same (a) power (b) resistance (c) voltage (d) current When multiple resistors are connected in parallel they have the same (a) power (b) resistance (c) voltage (d) current When two resistors R1 and R2 are connected in series, total resistance of them is (b) Rio (c) 1/R1+1/R2 (d) None of the answers When two resistors R1 and R2 are connected in...
Part C: Post Lab Questions for Lab 9 Complete the Lab before you work on these...
Part C: Post Lab Questions for Lab 9 Complete the Lab before you work on these four questions (1) Ohm's Law is v= 1 R, the Voltage [Volts] = Current [Amp] x Resistance [Ohms]. The current that flows through the battery depends on the total resistance in the circuit and the voltage of the battery. In the following circuit, a 10 Volt battery is connected in series with three resistors: Ri-1000 Ohms, R-500 Ohms, and R1-1500 Ohms a. What is...
physics electricity
H1.Calculate equivalent resistance for R1 and R2 and total resistance for the entire circuit. 2.Calculate equivalent resistance for R1 and R2 and total resistance for the entire circuit.R1,R2 equivalent resistance = ____________ Ω Total resistance = ____________ Ω+ _R1 20Ω R3 10ΩR2 30Ω 3.Five (5) identical resistors connected in parallel across a 230 V source for a large motor. The instruction manual states that the entire circuit requires 350 watts. What should be the value of each of the resistors:A. 30 ohmsB....
please answer both parts Given the circuit of Figure-2, what is the total resistance RT? Given:...
please answer both parts
Given the circuit of Figure-2, what is the total resistance RT? Given: R. 900 R2=920 Rg=500 2 RT R1 R2 R3 Find: RT Figure-2: Circuit # 2. Select any true statements about the circuit of Figure-2. a. This is a parallel circuit in which there is only one path for current to flow. b. The overall resistance of the circuit decreases as the number of parallel paths increases. c. The total resistance of equal resistors in...
